Description

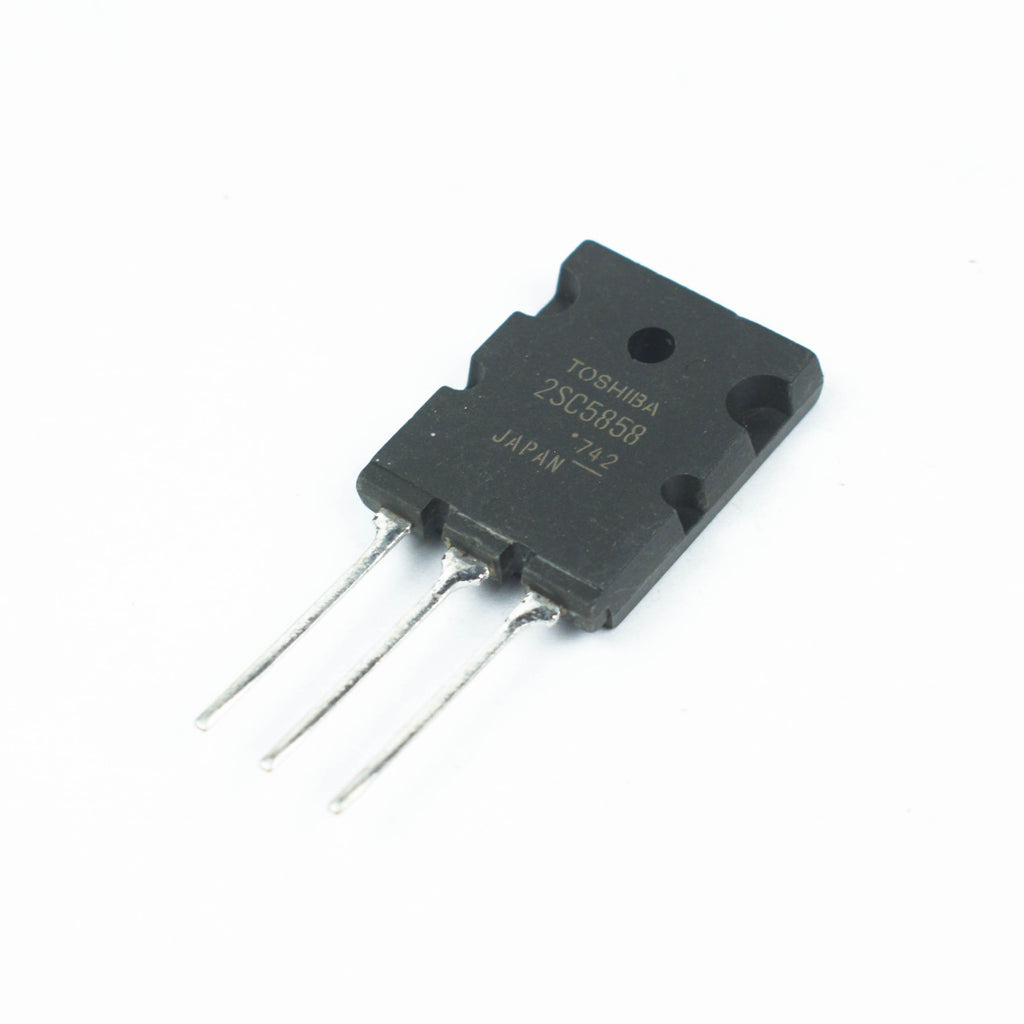

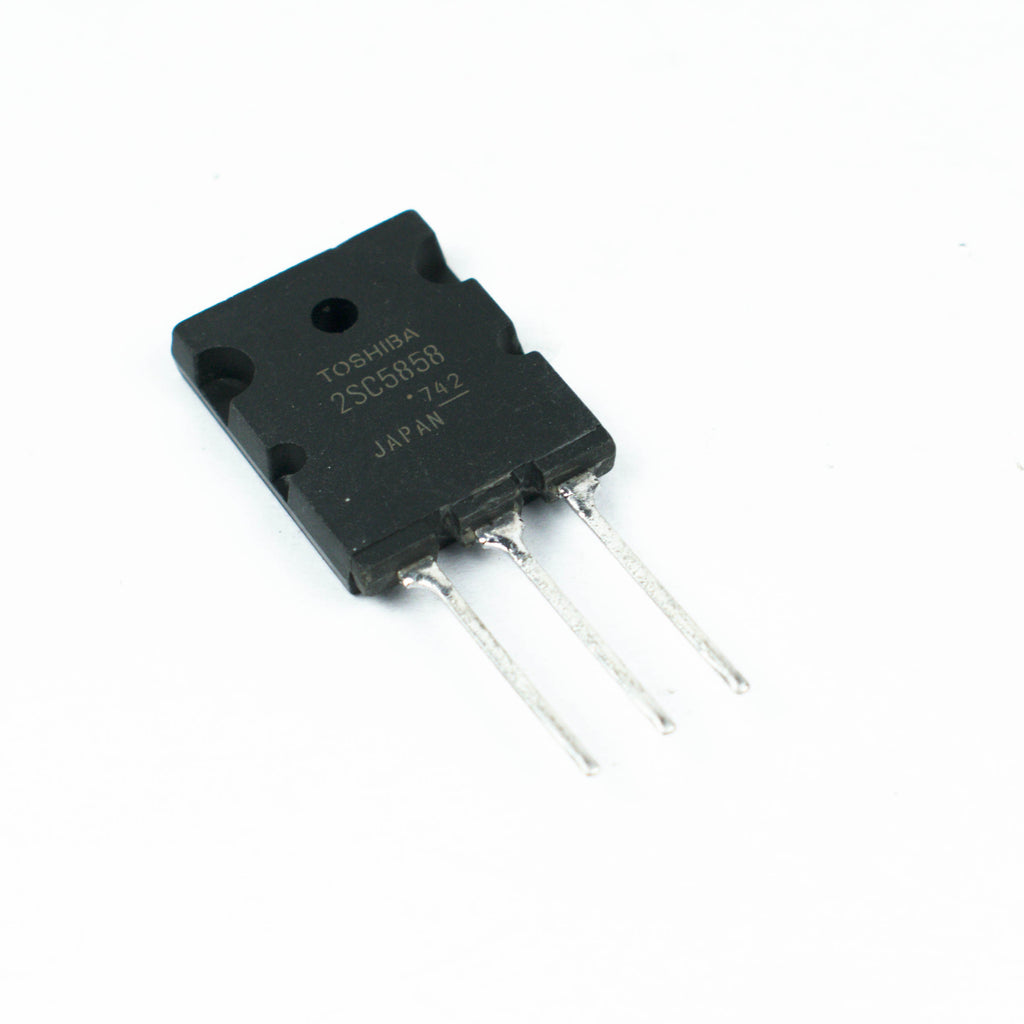

2SC5858 is a triple diffused mesa type high power transistor, generally used in horizontal deflection output for HDTV, Digital TV, Projection TV.
Features
- High voltage
- Low saturation voltage
- High speed
Specifications
| Model | 2SC5858 |
| Brand | TOSHIBA |
| Make | JAPAN |
| Transistor Type | NPN (BJT) |
| Material of Transistor | Si |
| Collector-Base Voltage (VCBO) | 1700V |
| Collector-Emitter Voltage (VCEO) | 750V |
| Emitter-Base Voltage (VEBO) | 5V |
| Collector Current DC (IC) | 22A |
| Collector Current Pulse (ICP) | 44A |
| Base Current (IB) | 11A |
| Collector Power Dissipation (Pc) | 200W |
| Junction Temperature | 150 degree C |
| Storage Temperature | -55~150 degree C |
| Country of Origin | China |
