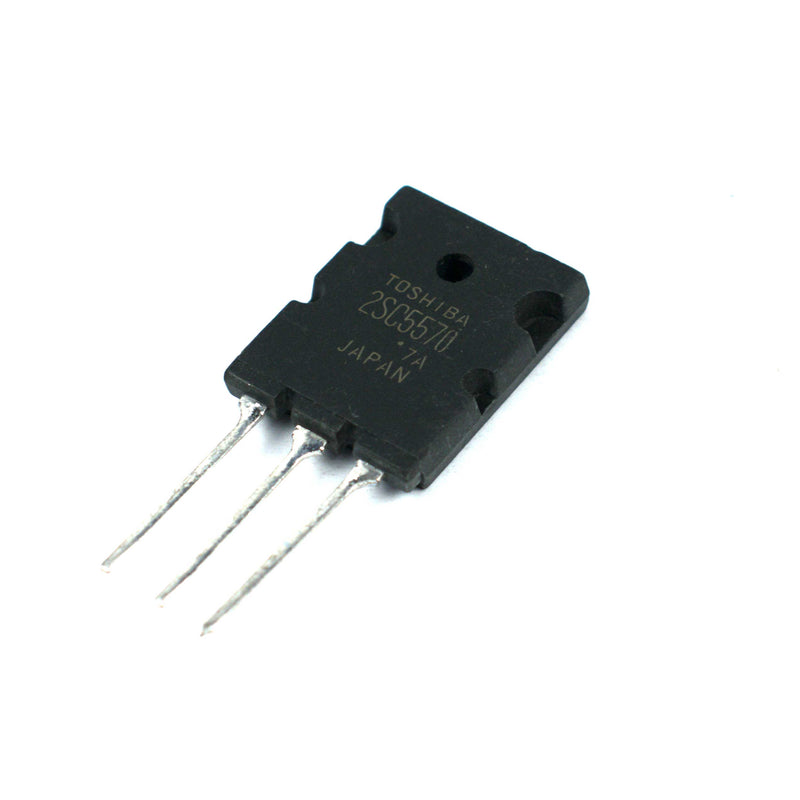

TOSHIBA 2SC5570 NPN Transistor

Save 10%
Sold By: HatchnHackSKU: G02-09

Price:
Sale price₹ 230.40 Regular price₹ 256.00

Tax included Shipping calculated at checkout

Min Qty:

Description

TOSHIBA 2SC5570 is a Bipolar Transistor(BJT)- High Voltage NPN Transistor. It is a silicon NPN Triple Diffused Mesa Type Transistor. It is a Through-hole active component that consists of three terminals Base, Collector, and Emitter.

Datasheet

Application:
  • Horizontal Defection Output for High-Resolution Display, Color TV.
  • High-Speed Switching Application.
Features:
  • High Speed
  • Low Saturation Voltage
  • High Speed
Specification:
Model 2SC5570
Brand TOSHIBA
Type BJT-Bipolar Transistor
Collector-Base Voltage (VCBO) 1700V
Collector-Emitter Voltage (VCEO) 800V
Collector Current DC (Ic) 28A
Collector-Current Pulse (Icp) 56A
Base Current (IB) 14A
Collector Power Dissipation (Pc) 220W
Junction Temperature  150 (Degree C)
Storage Temperature Range -55~150 (Degree C)
Country of Origin China
