Description

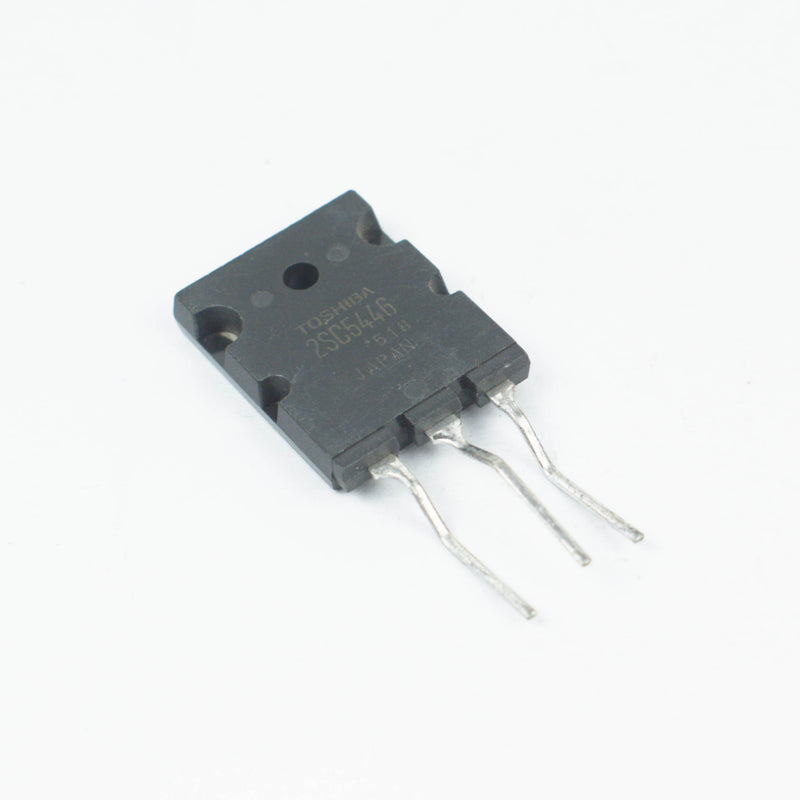

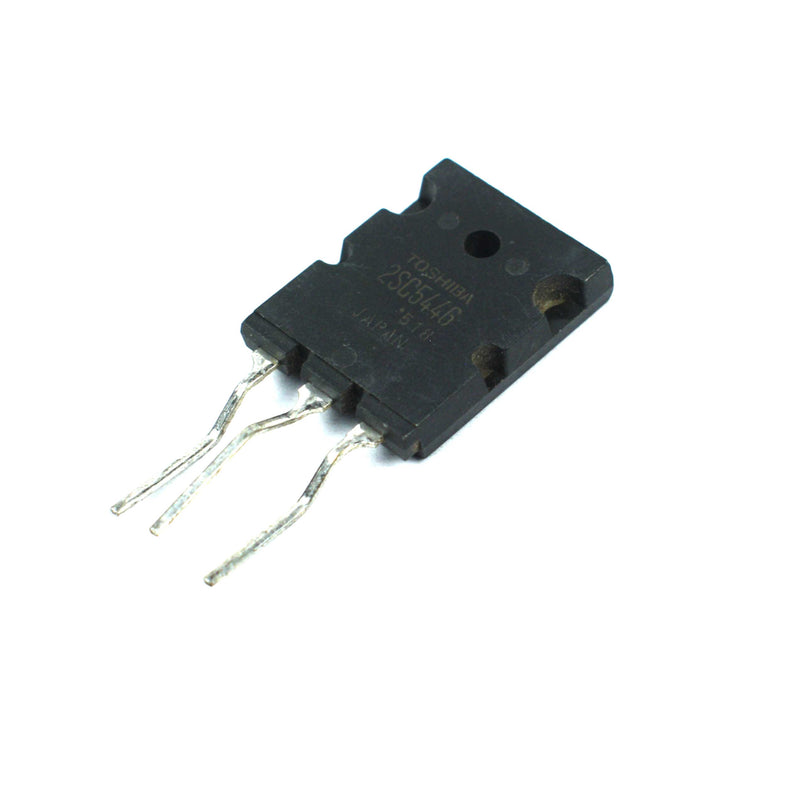

TOSHIBA 2SC5446 transistor is a silicon NPN triple diffused mesa type. It provides horizontal deflection output for super high-resolution display, color TV for multi-media & HDTV, and various other switching applications.
Features
- High Voltage
- Low Saturation Voltage
- High Speed
Specifications
| Model | 2SC5446 |
| Brand | TOSHIBA |
| Make | JAPAN |
| Polarity Type | NPN |
| Material of Transistor | Si |
| Collector-Base Voltage (VCBO) | 1700V |
| Collector-Emitter Voltage (VCEO) | 600V |
| Emitter-Base Voltage (VEBO) | 5V |
| DC Collector Current (IC) | 18A |
| Pulse Collector Current (ICP) | 36A |
| Base Current (IB) | 9A |
| Collector Power Dissipation (PC) | 200W |
| Junction Temperature (TJ) | 150°C |
| Storage Temperature Range (TSTG) | -55°C~150°C |
| Package | 2-21F2A |
| Country of Origin | China |
