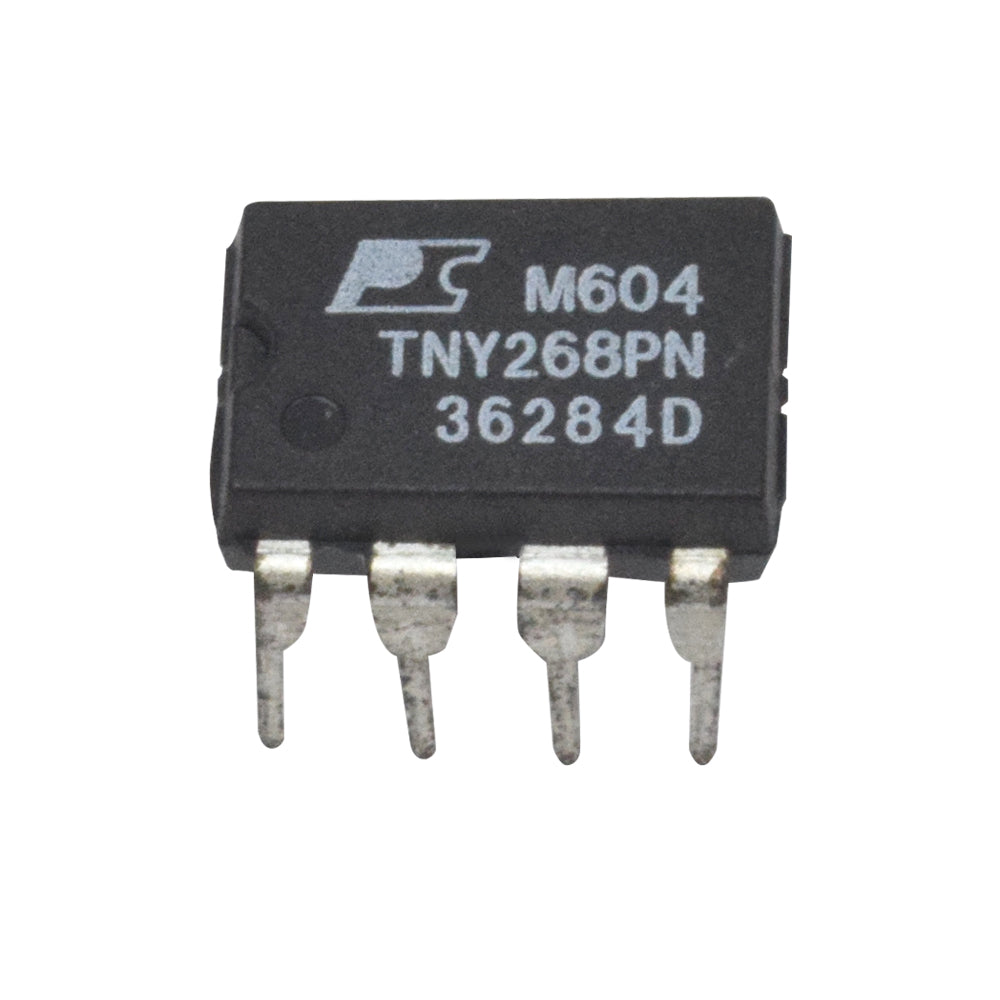

TNY268PN Integrated Offline Switching IC (Pack of 3)

Save ₹ 21.00
Sold By: Sanpra EnterprisesSKU: SN388

Price:
Sale price₹ 177.00 Regular price₹ 198.00

Tax included Shipping calculated at checkout

Min Qty:

Description

The controller and the power switch are contained in a single package of the integrated offline switching IC known as the TNY268PN.

The TYN268PN is mainly used as a low-side, high-voltage power MOSFET connected to the transformer. Only two additional pins are required: the EN/UV pin, which also serves as the feedback pin, and the bypass pin for the internal power supply, which must be linked with the proper capacitor. When the breakdown voltage of the output Zener diode is surpassed, an optocoupler in the feedback network is engaged. An RC network is connected to the drain of the IC to prevent voltage spikes from damaging the internal power switch. The IC's built-in 6.4V Zener diode limits the drain-source voltage to permissible ranges. The switch's internal current limit is 500mA.

Pin1 is for bypass pin for the 5.8V regulator, Pin2,3 are for the Power MOSFET source pin, Pin4 is for IC enabling and under voltage detection pin, Pin5 is for Drain, Pin7,8 is for Power MOSFET high voltage source return.

it's used in phone chargers, Offline power converters, Batter backup trickle chargers, and high input voltage flyback converters.p

Features.

  • It has an offline switcher with full integration

  • Its current limit is 500mA

  • Its switching frequency is 132kHz

  • It provides 23W output power
  • Built-in current and overheating protection
Specification
Model TNY268PN
Type Switching IC
Package DIP 8B
Frequency 132kHz
Maximum supply voltage  265V
Maximum output current 880mA
Total power dissipation 23W
No of pins  7
