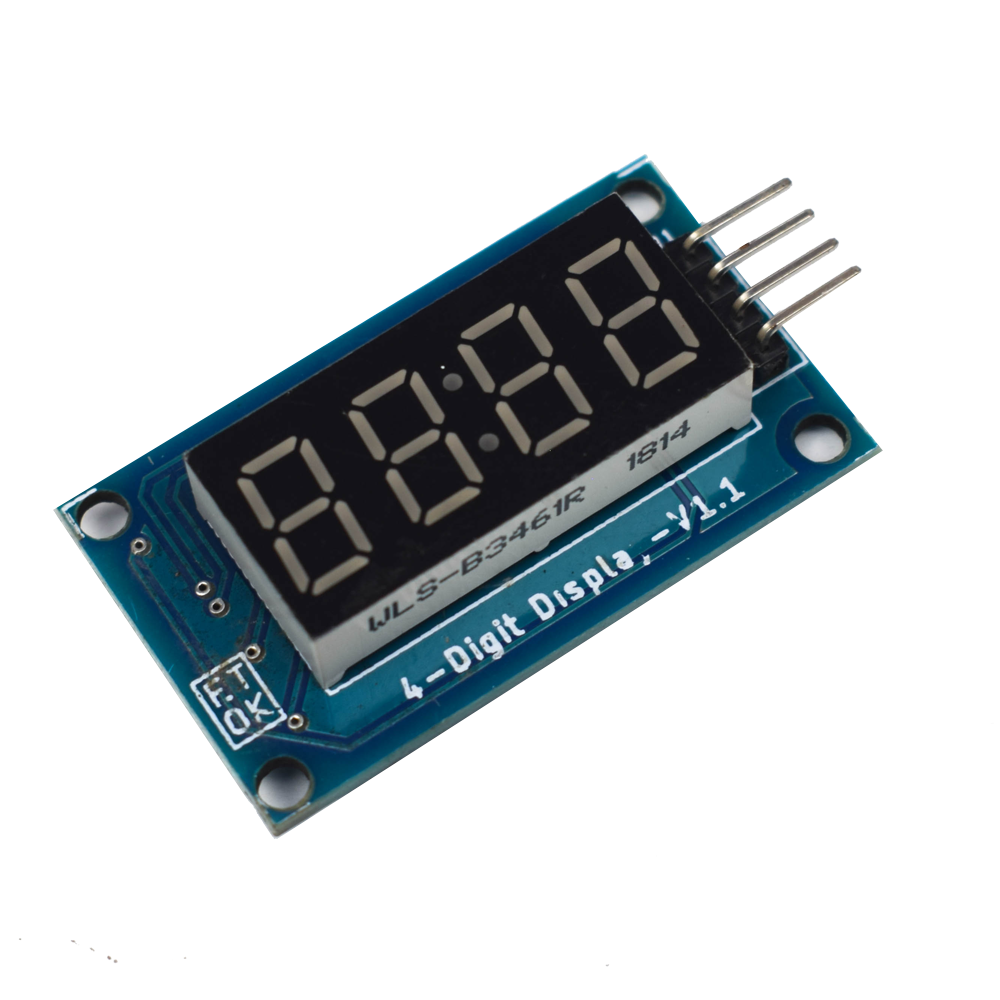

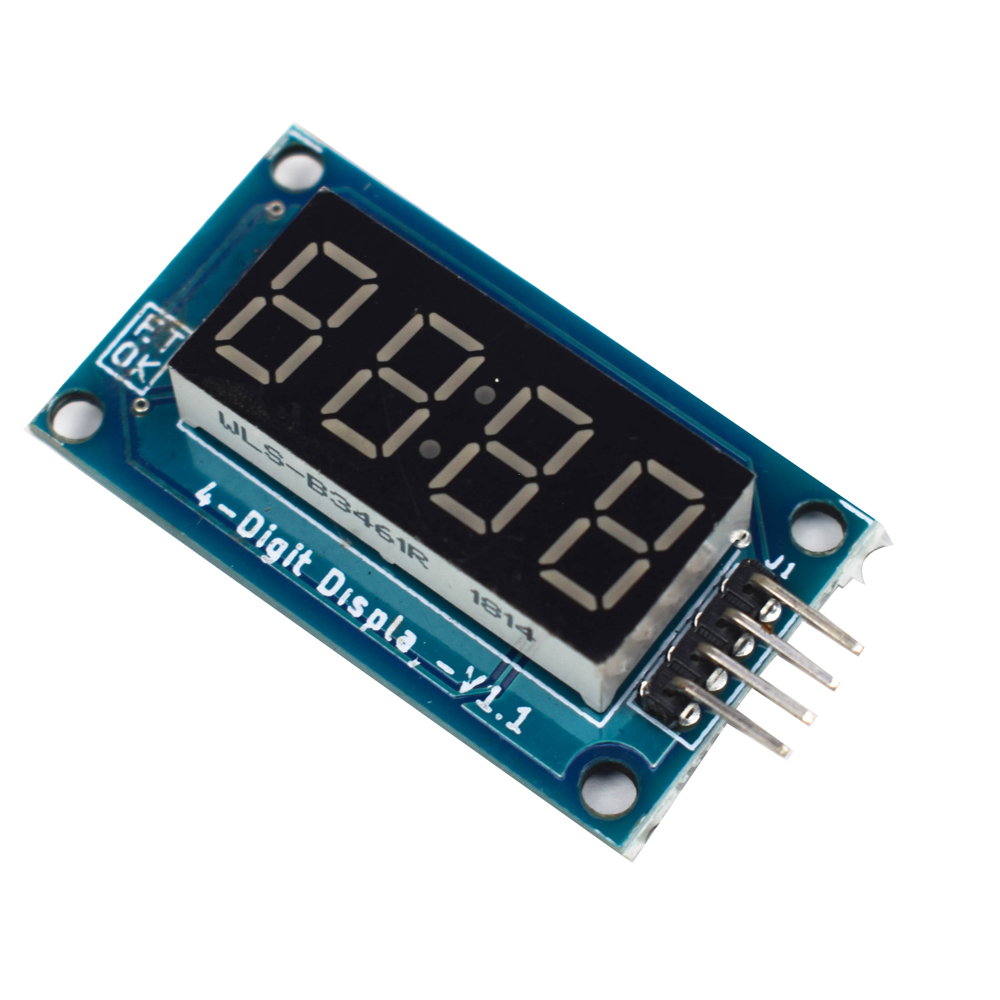

TM1637-4 Digit 7 Segment Display Module

Sold By: EnGenius LabSKU: ENG-99

Price:
Sale price₹ 75.00

Tax included Shipping calculated at checkout

Min Qty:

Description

The TM1637 is a 7-segment 4-digit display that can be easily controlled by an Arduino with a few wires. There are 12 pins on a 4-digit, 7-segment LED display. 8 of the pins are for the 8 LEDs on a 7-segment display (A-G and DP) (decimal point). The remaining four pins correspond to the four digits D1-D4.

The TM1637 Driver Chip controls the 4 digits on this 7-segment LED Display. This TM1637 4 Bits Digital Tube LED Display Module can be controlled with only two connections. You can also power it with just two wires thanks to the I2C Bus, which frees up more pins on your MicroController to attach other stuff.

Features

  • This 7-segment LED display has 4 digits controlled by a TM1637 Driver Chip. It requires only two connections to control this TM1637.
  • Follows I2C communication protocol.
  • It can be used as a clock display.
  • It can be easily interfaced with Arduino.

Pinout

  1. CLK: Clock
  2. DIO: Data
  3. VCC: 3.3V - 5V
  4. GND: Ground
    Specifications
    Product TM1637
    Type 4 Digit 7 Segment Display
    Input Voltage 3.3 to 5.0 V
    Input Current 30 mA
    Display Colour Red
    Display Dimensions (L x H) 30 x 14 mm
    Driver Chip(IC) TM1637
    Board Dimensions (L x H) 43 x 25 mm
    No. of Pins 04
    Make  Made in India
