Description

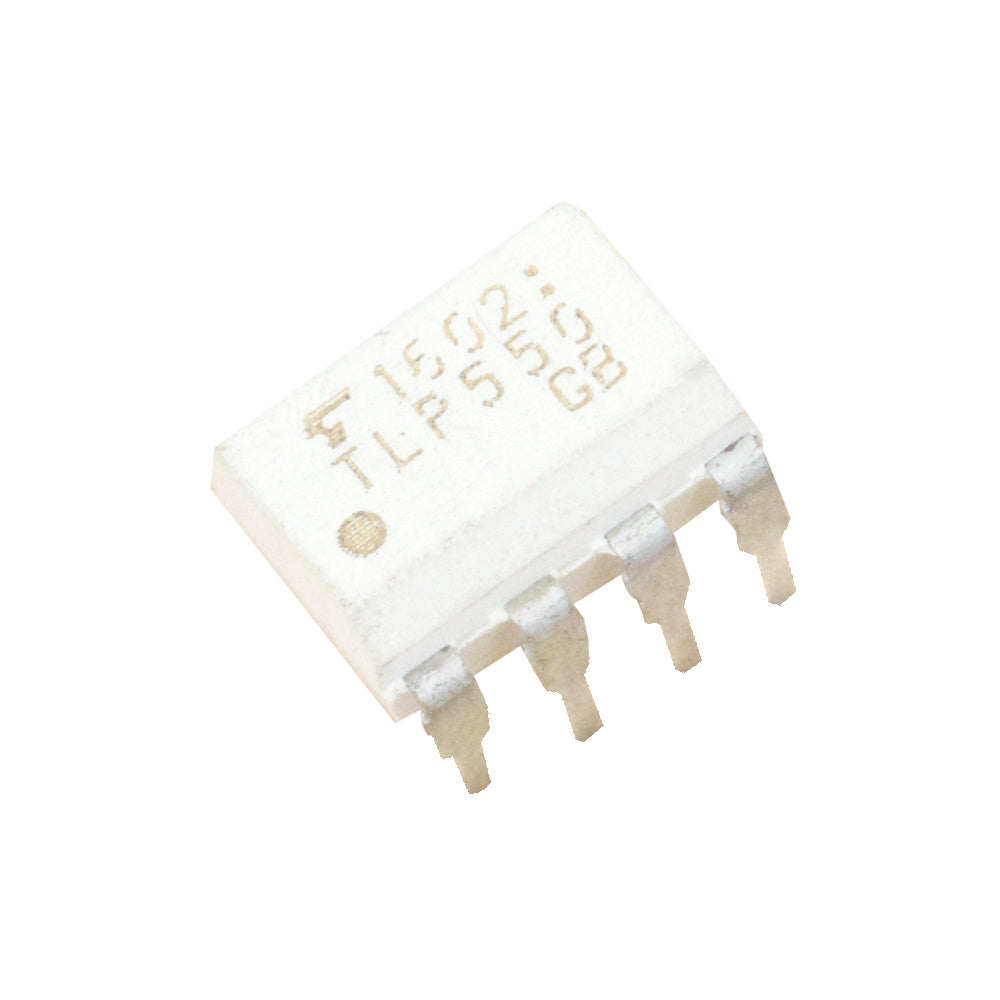

TLP550 is an eight pins IC constructed with a high-emitting diode and a photodiode in. As we already know, the photocoupler contains an infrared-emitting LED and a photocoupler; a current is first applied to the Optocoupler, which makes the infrared LED emit a light proportional to the current. When the light hits the photosensitive device, it switches on and starts to conduct a current as any ordinary transistor might. Its isolation voltage is 2500VRMS its switching speed is 0.5 microseconds.
Pinout details:
- NC
- Anode
- Cathode
- NC
- Emitter
- Collector
- NC
- Cathode
Specification
| Model | TLP550 |
| Type | Photocoupler IC |
| Package | DIP-8 |
| Lead solder temperature | 260-degree centigrade |
| Isolation Voltage | 2500V RMS |
| Pulse forward current | 50mA |
| Total power dissipation | 100mW |
| Operating and Storage Temperature Range | -55°C TO 125°C |
| Country of Origin | China |
