Description

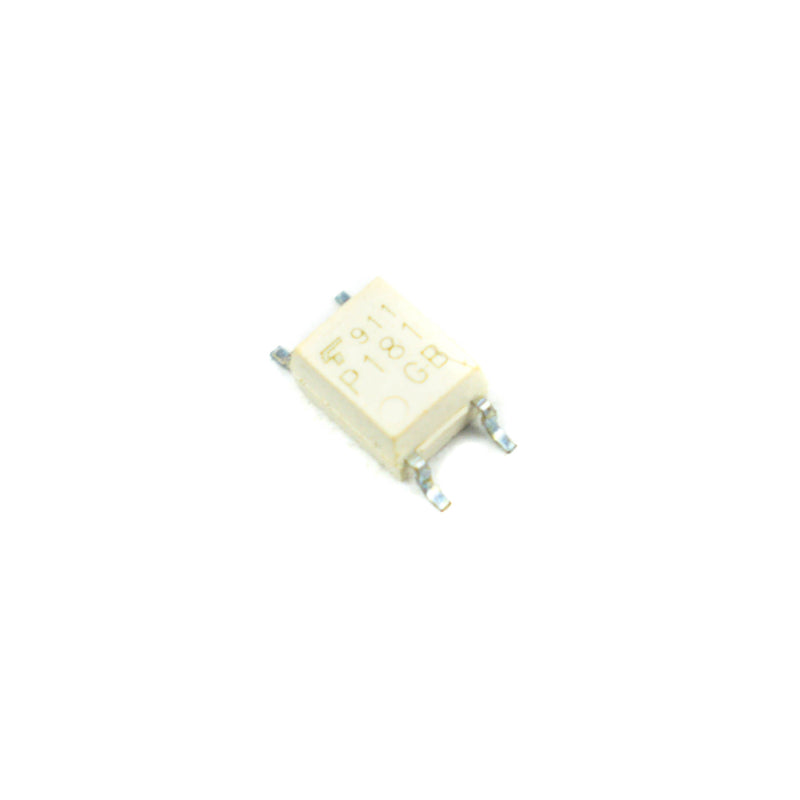

The TLP181 is a Thin-Profile Coupler that can be mounted on a surface. A photo transistor and an infrared emitting diode are what make up TLP181. TLP181 is appropriate for high density surface mounting applications like programmable controllers since it is smaller than DIP package.
An Opto Isolator is a semiconductor device that uses light to transmit an electrical signal between isolated circuits. It is sometimes referred to as an optical coupler, photocoupler, or optocoupler.
In a wide range of communications and monitoring systems, electrical isolation is employed to stop high voltage emitters from interfering with lower power equipment that is receiving a signal.
Features
- RoHS Compliant
- Industry Standard Packaging
- Ideal for surface and air sensing on PC boards
Specifications
| Model | TLP181 |
| Type | Opto Isolator |
| Package Style | SMD |
| Output Type | NPN Phototransistor |
| Number of Channels | 1 Channel |
| Maximum Collector Emitter Voltage | 80 V |
| Maximum Collector Current | 10 mA |
| Isolation Voltage | 3750 Vrms |
| Forward Voltage | 1.3 V |
| Reverse Voltage | 5 V |
| Power Dissipation | 200 mW |
| Operating Temperature Range | -55°C to 110°C |
| Collector-Emitter Breakdown Voltage | 80V |
| Maximum Collector Emitter Saturation Voltage | 0.4V |
| Country of Origin | China |
