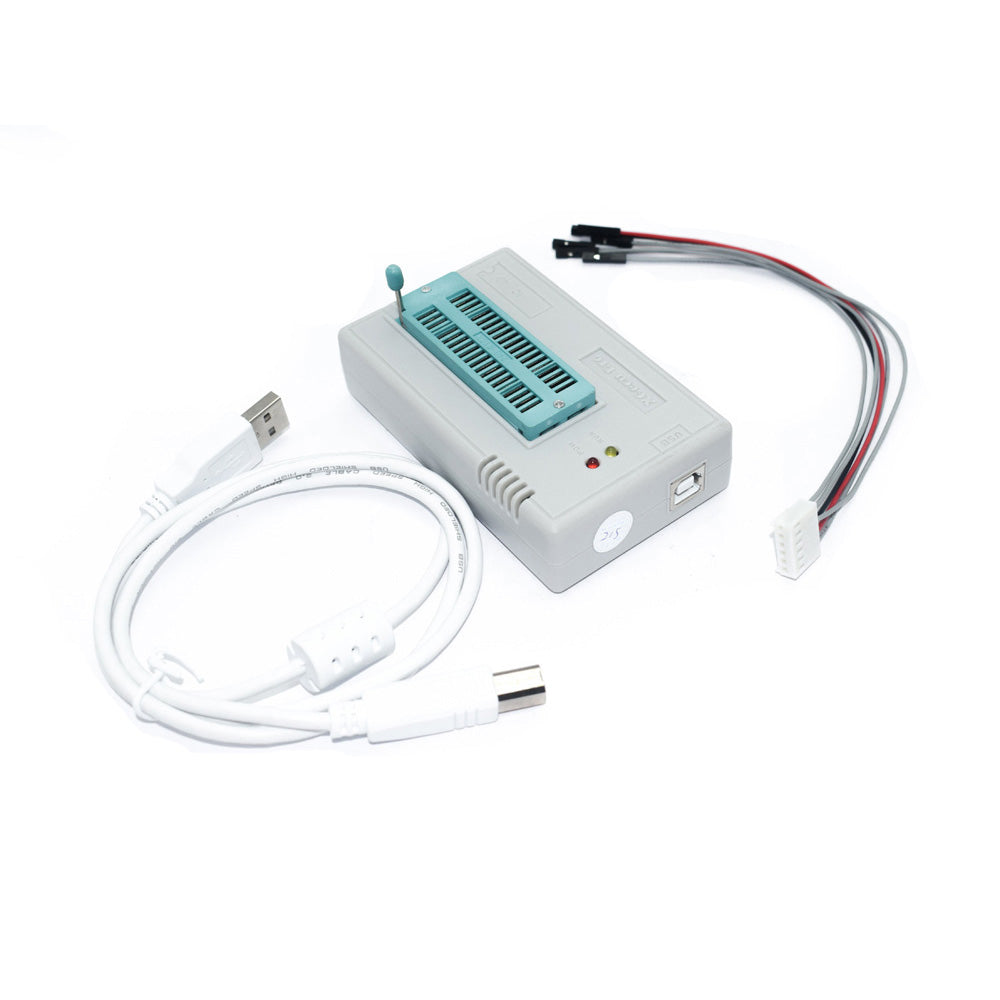

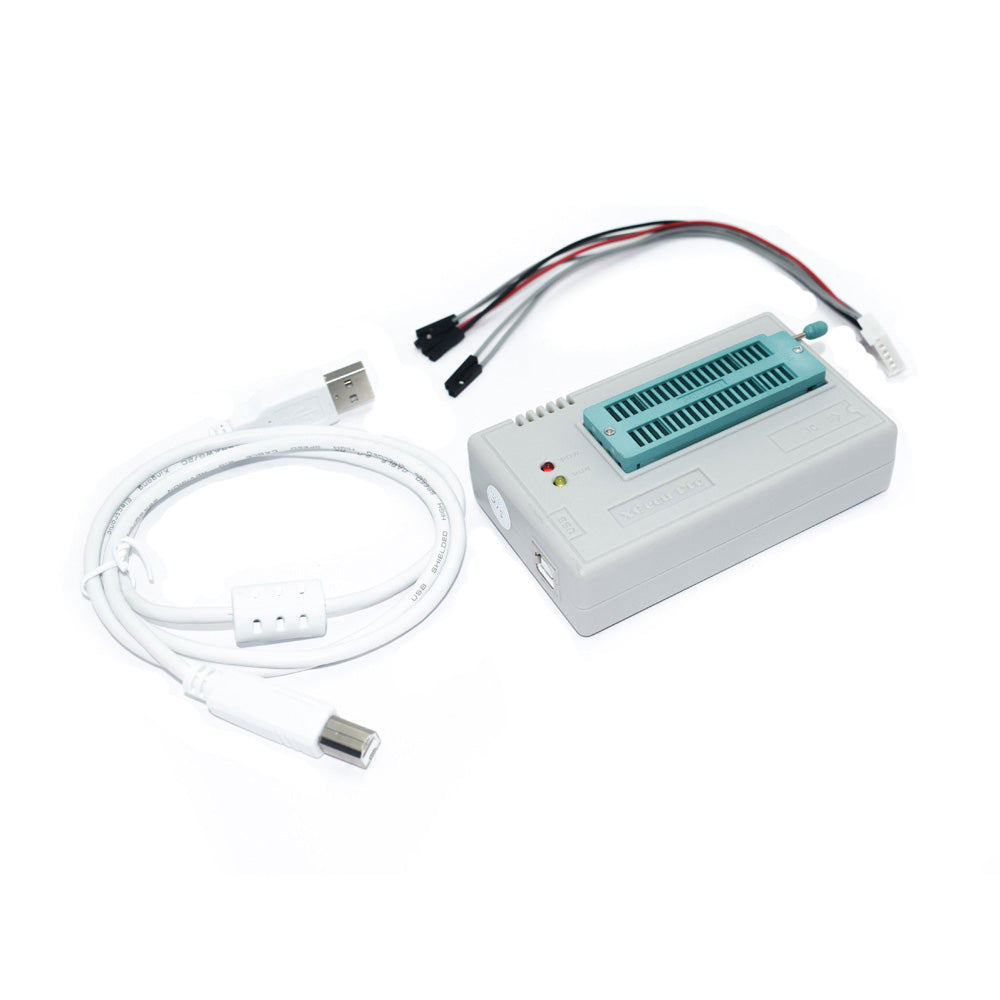

TL866II Plus Universal Programmer
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

TL866II Plus Universal Programmer

In Stock - SKU: 7A07

5,599.00
[ ₹ 4,744.92 + ₹ 854.08 (18% GST) ]
  • Model: TL866II Plus
  • Multi-functional ICSP interface
  • 40pin ZIF socket, fully automatic, support fast mode SPI
  • USB interface for both data transfer and power supply
  • Over voltage and over current protection
  • Order within

For Downloading Software and manual click here

  1.  AVR series single-chip high-speed programming
  2.  PIC series 8-bit microcontroller programming
  3.  Serial 24/25/35/45/93 series programming
  4.  High-performance BIOS programmer
  5. Car computer chip programming. support WIN2000 / WINXP / WIN2003 / WIN2008 / WIN VISTA /WIN7/WIN8/WIN10(32bITS AND 64BITS)
  6. Software version number: V7.05
  7. support over 15000+ chips ( This number keeping update)



The Outstanding advantages of the TL866II Programmer

  1. Support simultaneously burn with 4 Programmers each computer
  2. The Minimum Volume and the lowest Power Consumption and Do not Feel any Heat in Process.
  3. All chips do not need an external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
  4. Best internal 40 pins over-voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.
  5. Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH
  6. Unique serial ICSP interface. supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP
  7. Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.
  8. Chip auto serial number is the most complete and practical.
  9. Original chip encryption operation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.


Support wide range of chips

15000+ supported devices from hundreds of manufacturers by 7.05 version of SW (Mar. 1th, 2018).
NAND FLASH: Samsung K9xxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Micron MT29Fxxx, NANDxxx, Spansion S34xxx, NAND Toshiba TH58NVGxxx.
Serial NAND FLASH: Micron MT29Fxxx.
Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx, 25Fxxx, 25Lxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX26Lxxx ).DataFlash (AT45Dxxx, AT26Dxxx)
Parallel NOR Flash: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung'sK8Pxxxx, K8Dxxxx series, ...
EPROM: NMOS/CMOS, 27xxx and 27Cxxx series
EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series,
Serial E(E)PROM: 24XXX,25XXX series,
Microcontrollers MCS51 series:89Cxxx, 89Sxxx, 89EXXX,89VXX
Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, ATtiny, ATmega series
Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx series
GAL Programmable logic device programming and SRAM test
I.C. Tester: TTL type: 54,74 S/LS/ALS/H/HC/HCT series; CMOS type: 4000, 4500 series;
Static RAM: 6116 ..



High-Speed Programming
This Programmer has Built-in MCU with a high-performance and high-capacity USB interface at the communication speed of 12Mbps being in line with ( For each chip) a well-designed programming algorithm and USB high-speed communications. It may be one of the fastest integrated development programmers. The speed has been met the needs of small-quantity efficient production.

Unique ultra-low power consumption

The whole Programmer is equipped with ultra-low power chips and it is furnished with electricity via USB Interface. It is the first comprehensive Programmer to program all the chips without an external power supply. Their own power consumption is less than 20mA (it is 7mA when the Programmer is not programming, LED power indicator use largest electricity, 5mA each one) and Programming power loss rate is less than 20% so that the Programmer can supply the high VCC VPP programming electric current. A programmable chip can be provided with enough programming power (the largest programming power output is 2 watts that are impossible for a chip to use 2 watts of programming power). And you hardly feel the heat of the Programmer after such long continuous work.

Easily portable performance

This is one of the smallest products in the world and the dimensions are 10CM*6CM*2.5CM (it is as small as a driving license). In addition, you don't need to carry with an external power supply because of the ultra-low-power that makes it more portable.

Programmable power supply

VPP and VCC programming voltages are independently program-controlled: programmable VCC is from 1.8V to 6.5V; VPP is from 1.8V to 18V. The fluctuation of power supply is minor because of the multi-stage LC filter.

Best overvoltage, overcurrent protection

VCC, VPP power supply of the Programmer is furnished with the independent Grade 3 overcurrent protection and the protection of automatically cutting off the power supply. Each pin of the 40-pin programming socket has VPP overvoltage protection. It can effectively prevent putting a chip in the wrong place or short circuit due to other reasons. In this programming case, it can also stop VPP high voltage from coming back to the internal of the Programmer and damaging the device. Really make sure that the Programmer will not be damaged when there is any worst-case short circuit. At the same time, the programmed chip can be efficiently protected.
This Programmer will cut off the programming power supply VPP and VCC within 100us and send the message to the application program when there is a short circuit. The Programmer and PC won't be reset when there is a short circuit because of the multilevel overcurrent protection.

40PIN universal pin

It is the most versatile pin among 40PIN quasi-universal pins. You don't need to move or turn around the chip when programming. Just congruously put the chip forward and the handle direction of the Programmer is the PIN1 place. Its design accords with the common operating habit of the user.

Upgrading Function

This Programmer is equipped with upgrading the Function of the built-in hardware firmware program that can make sure your Programmer's firmware flash and application software can be timely updated. You can complete the upgrade by downloading the upgrading program through the manufacturer's website.

Second development function of chip serial number

This Programmer has a variety of automatic numbering functions that are used commonly. You can get any serial number through DLL Dynamic Link Libraries by using the custom algorithm. In mass production, the Function enables each chip to produce only one identifying information that can be encrypted by the custom algorithm. So you can effectively protect your rights as a customer.

Unique universal serial programming interface ICSP

This TL866ll Plus programmer can program through the 40-PIN universal socket and is provided with an ICSP serial programming port. For some in-circuit serial programmable chips, you can program MCU by choosing the ICSP port. You can get the clear instruction diagram in the programming software for the ICSP port wiring method. That is to say. You can directly program and update the chip soldered on the board.
Note: Now ICSP can in-circuit serial program ATMEL89S51, ATMEL89S52, AT45DBxxx, a whole series of AVR ATMEGAxxx, MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx, as well as a full serial of SYNCMOS SM59Dxx SM59Rxx. The variety of microcontrollers that can be supported in-circuit programming will be continually increased in the future. Six ICSP wires of this Programmer, except a ground wire, other wires led full functional I2C, SPI and UART serial main wire, be suitable for all kinds of serial communication. In addition, each wire can supply VCC, VPP or GND with high current.

54/74F/LS/HC CMOS4000 series IC functional tests

This is the first development programmer to test the common logic integrated circuit. This test can be located the errors of the logic gate circuit and test any possible input combinations of the integrated circuit.

Programmer self-testing function

This Programmer can test itself on each pin of VPP, VCC, GND and I/O information, at the same time, it can run an inside short-circuit test on VPP, VCC current.

AVR microcontroller one-to-one soft encryption

AVR microcontroller has an RC Calibration (calibrate bytes). Only one of the dozens of chips may have the same bytes value, and it cannot be modified. Microcontroller software can read this value and determine whether the code is used by other chips. Custom encryption algorithms can stop those who decrypt chips with ulterior motives from directly using them. The encryption algorithm is so complex that it is not easy to decrypt. But, about "encryption", there is a problem for developers - each chip is different - it is impossible to manually calculate one by one and respectively compile source code if the algorithm is complex. This Programmer can automatically read into RC bytes before programming. The developer can get the value of the byte of the chip in the DLL dynamic function and then automatically calculate the encrypted data according to the request and put it in the memory, efficiently completing mass production. (A detailed encrypted instance of the ATMEGA8 in the installation package is available for reference)

Unified and convenient user interface

The user interface is well-designed and is in complete accord with the operating habit of the Windows series of software. The built-in binary editor is comparable to pure professional editing software. You can directly read, write and modify the files such as BIN format, HEX format, JED format and so on. In addition, it has a complete and practical project mode that makes mass production more convenient and safer.

  • Dimensions: 4.02 in x 2.48 in x 1.22 in (10.2 cm x 6.3 cm x 3.1 cm)
  • Weight: 4.87 or (138 g)
  •  Specification
    Model TL866II Plus
    Interface Multi-Functional ICSP
    Socket 40 Pin ZIF socket, supports Fast Mode SPI
    USB Port Data Transfer and Power Supply
    Protection Over Voltage and Over Current protection
    Support EPROM, EEPROM,  FLASH, SPI, I2C, 93Cxx, ICSP, etc.

    For Downloading Software and manual click here

    1.  AVR series single-chip high-speed programming
    2.  PIC series 8-bit microcontroller programming
    3.  Serial 24/25/35/45/93 series programming
    4.  High-performance BIOS programmer
    5. Car computer chip programming. support WIN2000 / WINXP / WIN2003 / WIN2008 / WIN VISTA /WIN7/WIN8/WIN10(32bITS AND 64BITS)
    6. Software version number: V7.05
    7. support over 15000+ chips ( This number keeping update)



    The Outstanding advantages of the TL866II Programmer

    1. Support simultaneously burn with 4 Programmers each computer
    2. The Minimum Volume and the lowest Power Consumption and Do not Feel any Heat in Process.
    3. All chips do not need an external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
    4. Best internal 40 pins over-voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.
    5. Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH
    6. Unique serial ICSP interface. supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP
    7. Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.
    8. Chip auto serial number is the most complete and practical.
    9. Original chip encryption operation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.


    Support wide range of chips

    15000+ supported devices from hundreds of manufacturers by 7.05 version of SW (Mar. 1th, 2018).
    NAND FLASH: Samsung K9xxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Micron MT29Fxxx, NANDxxx, Spansion S34xxx, NAND Toshiba TH58NVGxxx.
    Serial NAND FLASH: Micron MT29Fxxx.
    Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx, 25Fxxx, 25Lxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX26Lxxx ).DataFlash (AT45Dxxx, AT26Dxxx)
    Parallel NOR Flash: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung'sK8Pxxxx, K8Dxxxx series, ...
    EPROM: NMOS/CMOS, 27xxx and 27Cxxx series
    EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series,
    Serial E(E)PROM: 24XXX,25XXX series,
    Microcontrollers MCS51 series:89Cxxx, 89Sxxx, 89EXXX,89VXX
    Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, ATtiny, ATmega series
    Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx series
    GAL Programmable logic device programming and SRAM test
    I.C. Tester: TTL type: 54,74 S/LS/ALS/H/HC/HCT series; CMOS type: 4000, 4500 series;
    Static RAM: 6116 ..



    High-Speed Programming
    This Programmer has Built-in MCU with a high-performance and high-capacity USB interface at the communication speed of 12Mbps being in line with ( For each chip) a well-designed programming algorithm and USB high-speed communications. It may be one of the fastest integrated development programmers. The speed has been met the needs of small-quantity efficient production.

    Unique ultra-low power consumption

    The whole Programmer is equipped with ultra-low power chips and it is furnished with electricity via USB Interface. It is the first comprehensive Programmer to program all the chips without an external power supply. Their own power consumption is less than 20mA (it is 7mA when the Programmer is not programming, LED power indicator use largest electricity, 5mA each one) and Programming power loss rate is less than 20% so that the Programmer can supply the high VCC VPP programming electric current. A programmable chip can be provided with enough programming power (the largest programming power output is 2 watts that are impossible for a chip to use 2 watts of programming power). And you hardly feel the heat of the Programmer after such long continuous work.

    Easily portable performance

    This is one of the smallest products in the world and the dimensions are 10CM*6CM*2.5CM (it is as small as a driving license). In addition, you don't need to carry with an external power supply because of the ultra-low-power that makes it more portable.

    Programmable power supply

    VPP and VCC programming voltages are independently program-controlled: programmable VCC is from 1.8V to 6.5V; VPP is from 1.8V to 18V. The fluctuation of power supply is minor because of the multi-stage LC filter.

    Best overvoltage, overcurrent protection

    VCC, VPP power supply of the Programmer is furnished with the independent Grade 3 overcurrent protection and the protection of automatically cutting off the power supply. Each pin of the 40-pin programming socket has VPP overvoltage protection. It can effectively prevent putting a chip in the wrong place or short circuit due to other reasons. In this programming case, it can also stop VPP high voltage from coming back to the internal of the Programmer and damaging the device. Really make sure that the Programmer will not be damaged when there is any worst-case short circuit. At the same time, the programmed chip can be efficiently protected.
    This Programmer will cut off the programming power supply VPP and VCC within 100us and send the message to the application program when there is a short circuit. The Programmer and PC won't be reset when there is a short circuit because of the multilevel overcurrent protection.

    40PIN universal pin

    It is the most versatile pin among 40PIN quasi-universal pins. You don't need to move or turn around the chip when programming. Just congruously put the chip forward and the handle direction of the Programmer is the PIN1 place. Its design accords with the common operating habit of the user.

    Upgrading Function

    This Programmer is equipped with upgrading the Function of the built-in hardware firmware program that can make sure your Programmer's firmware flash and application software can be timely updated. You can complete the upgrade by downloading the upgrading program through the manufacturer's website.

    Second development function of chip serial number

    This Programmer has a variety of automatic numbering functions that are used commonly. You can get any serial number through DLL Dynamic Link Libraries by using the custom algorithm. In mass production, the Function enables each chip to produce only one identifying information that can be encrypted by the custom algorithm. So you can effectively protect your rights as a customer.

    Unique universal serial programming interface ICSP

    This TL866ll Plus programmer can program through the 40-PIN universal socket and is provided with an ICSP serial programming port. For some in-circuit serial programmable chips, you can program MCU by choosing the ICSP port. You can get the clear instruction diagram in the programming software for the ICSP port wiring method. That is to say. You can directly program and update the chip soldered on the board.
    Note: Now ICSP can in-circuit serial program ATMEL89S51, ATMEL89S52, AT45DBxxx, a whole series of AVR ATMEGAxxx, MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx, as well as a full serial of SYNCMOS SM59Dxx SM59Rxx. The variety of microcontrollers that can be supported in-circuit programming will be continually increased in the future. Six ICSP wires of this Programmer, except a ground wire, other wires led full functional I2C, SPI and UART serial main wire, be suitable for all kinds of serial communication. In addition, each wire can supply VCC, VPP or GND with high current.

    54/74F/LS/HC CMOS4000 series IC functional tests

    This is the first development programmer to test the common logic integrated circuit. This test can be located the errors of the logic gate circuit and test any possible input combinations of the integrated circuit.

    Programmer self-testing function

    This Programmer can test itself on each pin of VPP, VCC, GND and I/O information, at the same time, it can run an inside short-circuit test on VPP, VCC current.

    AVR microcontroller one-to-one soft encryption

    AVR microcontroller has an RC Calibration (calibrate bytes). Only one of the dozens of chips may have the same bytes value, and it cannot be modified. Microcontroller software can read this value and determine whether the code is used by other chips. Custom encryption algorithms can stop those who decrypt chips with ulterior motives from directly using them. The encryption algorithm is so complex that it is not easy to decrypt. But, about "encryption", there is a problem for developers - each chip is different - it is impossible to manually calculate one by one and respectively compile source code if the algorithm is complex. This Programmer can automatically read into RC bytes before programming. The developer can get the value of the byte of the chip in the DLL dynamic function and then automatically calculate the encrypted data according to the request and put it in the memory, efficiently completing mass production. (A detailed encrypted instance of the ATMEGA8 in the installation package is available for reference)

    Unified and convenient user interface

    The user interface is well-designed and is in complete accord with the operating habit of the Windows series of software. The built-in binary editor is comparable to pure professional editing software. You can directly read, write and modify the files such as BIN format, HEX format, JED format and so on. In addition, it has a complete and practical project mode that makes mass production more convenient and safer.

  • Dimensions: 4.02 in x 2.48 in x 1.22 in (10.2 cm x 6.3 cm x 3.1 cm)
  • Weight: 4.87 or (138 g)
  • Model TL866II Plus
    Interface Multi-Functional ICSP
    Socket 40 Pin ZIF socket, supports Fast Mode SPI
    USB Port Data Transfer and Power Supply
    Protection Over Voltage and Over Current protection
    Support EPROM, EEPROM,  FLASH, SPI, I2C, 93Cxx, ICSP, etc.
