Description
The TL431 is a three-Pin adjustable regulator series with guaranteed thermal stability over the temperature ranges applicable. With the help of two external resistors, the output voltage can be adjusted to any value between VREF (approximately 2.5 volts) and 36 volts. The typical dynamic output impedance of these devices is 0.2. Because active output circuitry has a very sharp turn-on characteristic, these devices are an excellent replacement for Zener diodes in many applications.
Features:
- Temperature range -40 to +125ºC
- Reference Voltage Tolerance at 25°C: 2.495V ± 1.0%
- Low Output Noise
- 0.2Ω Typical Output Impedance
- Sink Current Capability: 1mA to 100mA
- Adjustable Output Voltage: VREF to 36V
- Power Dissipation: 330mW
| Specifications | |
|---|---|
| Model | TL431 |

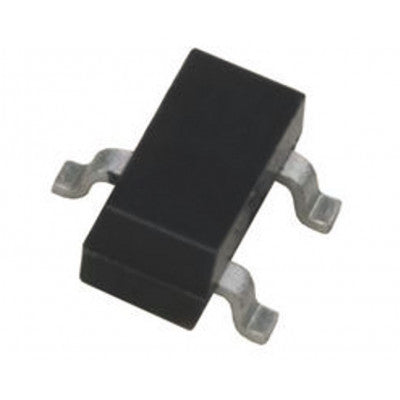

| Package | SOT-23 |
| Mounting Type | SMD |
| Operating Temperature | -40 to +125ºC |
| Power | 330mW |
| No of Pins | 3 |
| Type | Shunt Regulator |
