Description
These monolithic integrated circuits with low-noise JFET input operational amplifiers combine two cutting-edge analogue technologies. Each internally corrected operational amplifier features a well-matched high-voltage JFET input device for low input offset voltage. BEFIT technology's low supply, input offset, and bias currents make wide bandwidths and quick slew rates possible. The devices also have minimal harmonic distortion and noise, making them perfect for high-fidelity audio amplifier applications.
Features
-
Low Supply Current: 1.4 mA per Amp
-
Low Harmonic Distortion: 0.01% Typ
-
Low Input Bias and Offset Currents
-
High Input Impedance: 1012ΩTyp
-
Wide Gain Bandwidth: 4.0 MHz Typ
-
Its low supply current is 1.4mA
-
Max Storage & Operating temperature should be: -65 to +150 Centigrade
Specification

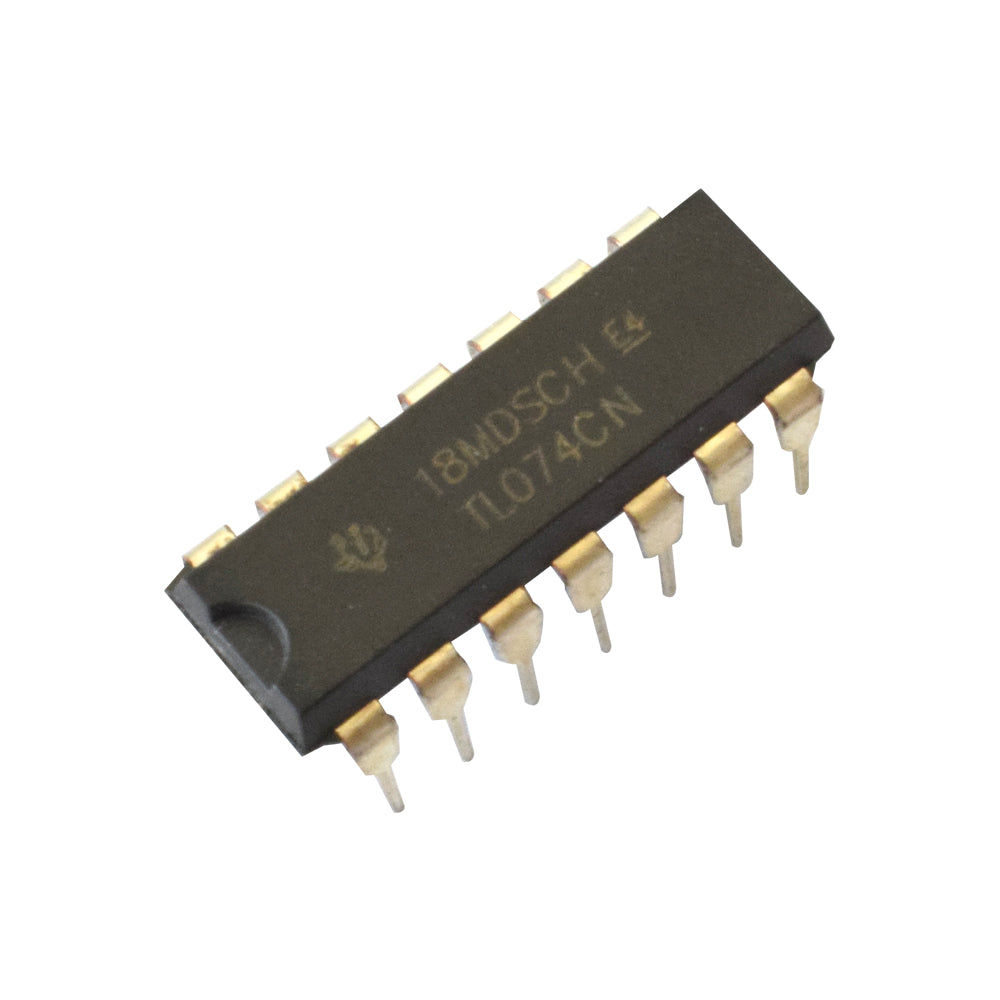

| Model | TL074CN |
| Type | IC |
| Package | 14DIP |
| Supply Current | 1.4mA |
| Low harmonic Distortion | 0.01% |
| Supply Voltage | 18V |
| Total power dissipation | 680mW |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
