Description

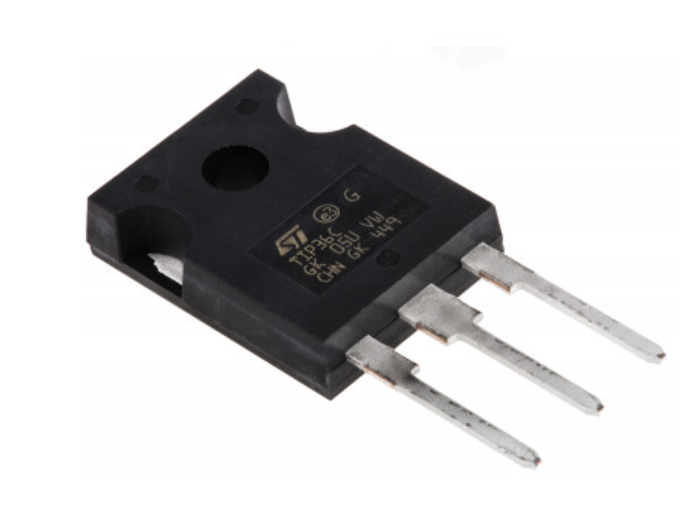

TIP36C is a three-layer PNP device having a collector current IC that is a function of the base current IB‚ with a change in the base current resulting in an amplified change in the collector current for a given collector emitter voltage VCE.
Features:
- Its saturation voltage is Low
- Its Simple drive requirements
- High safe operating area
| Specifications | |
|---|---|
| Part Number | TIP36C |
| Operating Temperature Range | -65 - 150°C |
| Mounting Style | Through Hole |
| Power Dissipation | 125W |
| Current | 25A |
| Voltage | 100V |
| Type | Power Amplifier Transistor |
| Package | TO-247 |
