Description

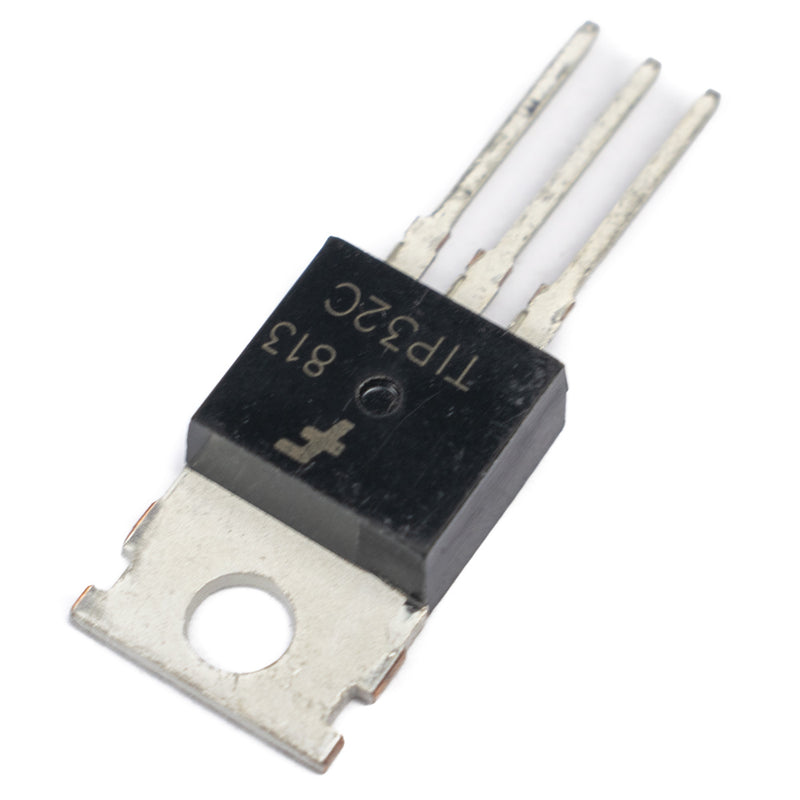

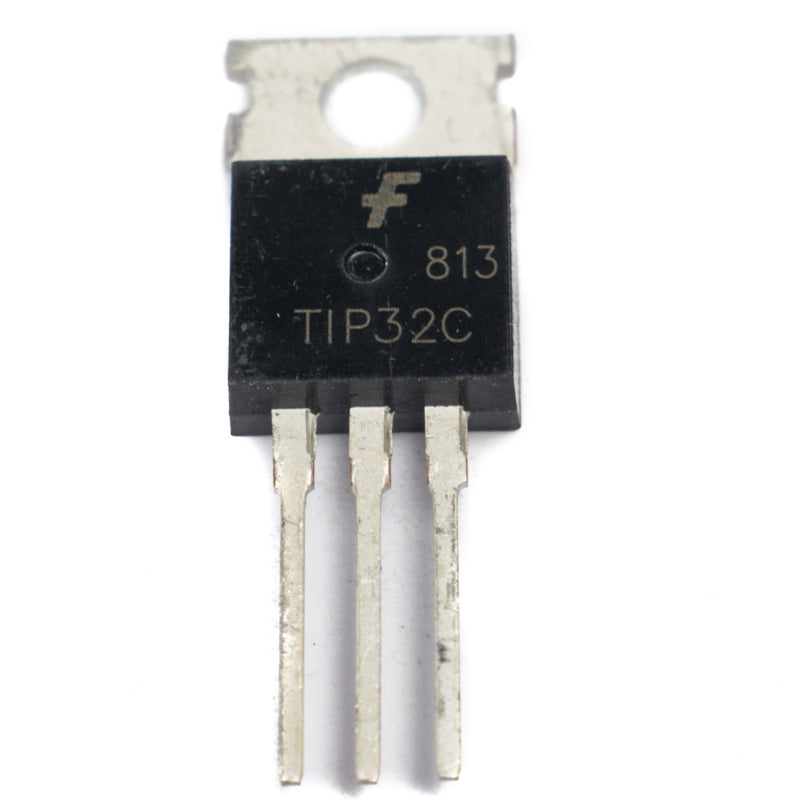

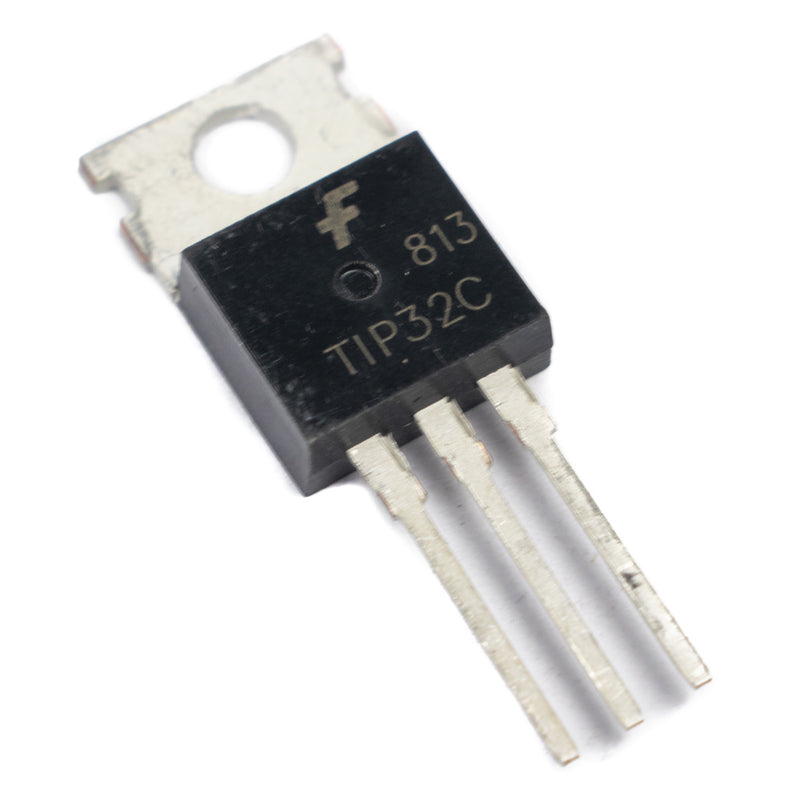

Its TIP32C PNP Bipolar Power Transistor 100V 3A TO-220. TIP32C is a silicon Epitaxial-base PNP power transistor packaged in a Jedec TO-220 plastic packaging. It's designed for medium-power linear and switching applications. TIP31C is the complementary NPN type.
Specifications:
| Type | PNP Transistor |
| Collector-Emitter Voltage | 40 VDC |
| Collector-Base Voltage | 40 VDC |
| Continuous Collector Current | 3 ADC |
| Continuous Base Current | 1 ADC |
| Emitter Base Voltage | 5 VDC |
| Power Dissipation | 40 W |
| Country of Origin | China |
