Description

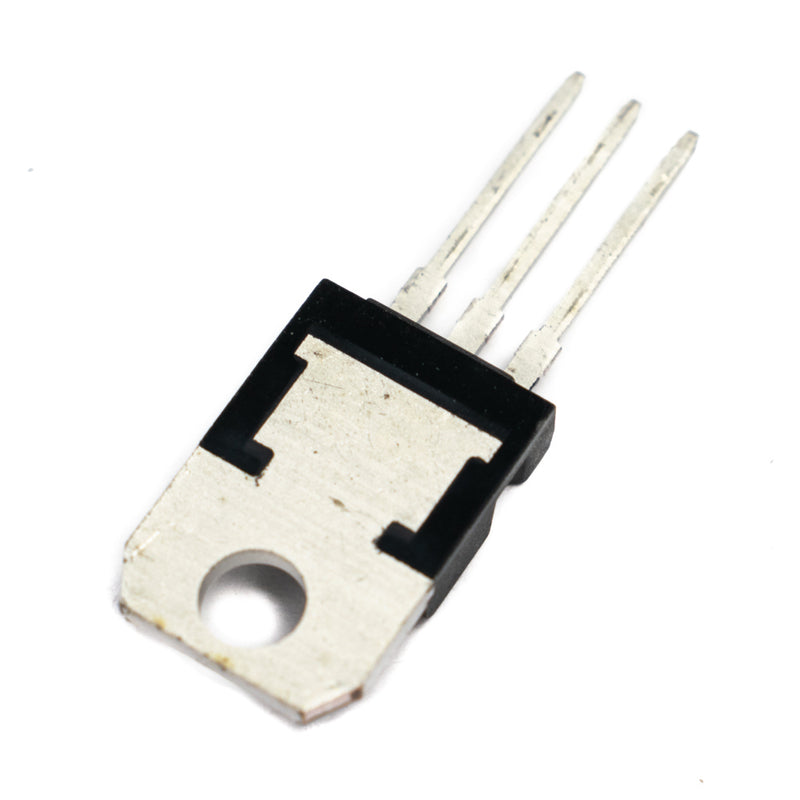

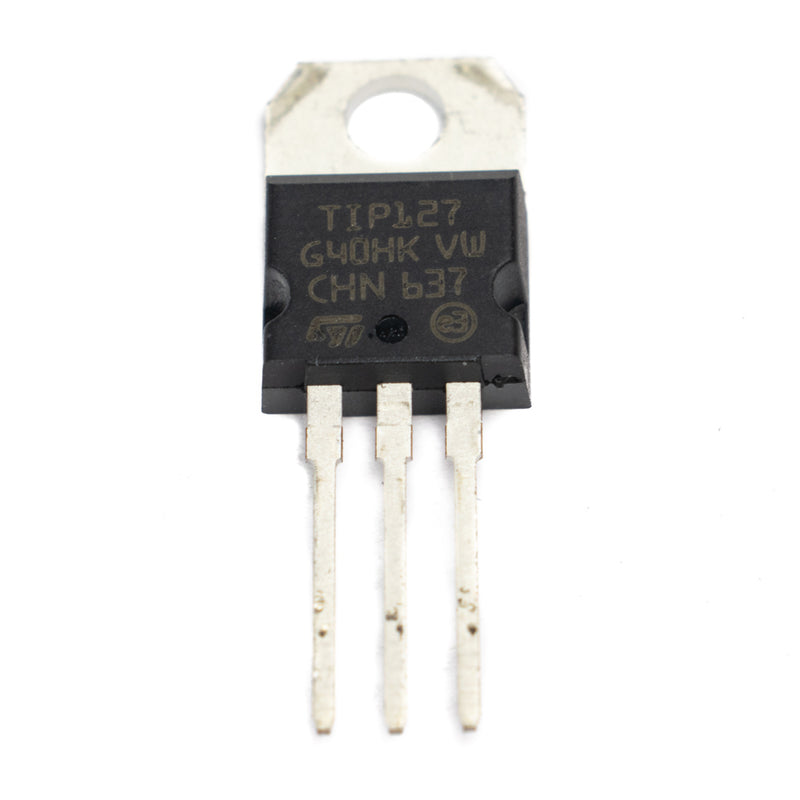

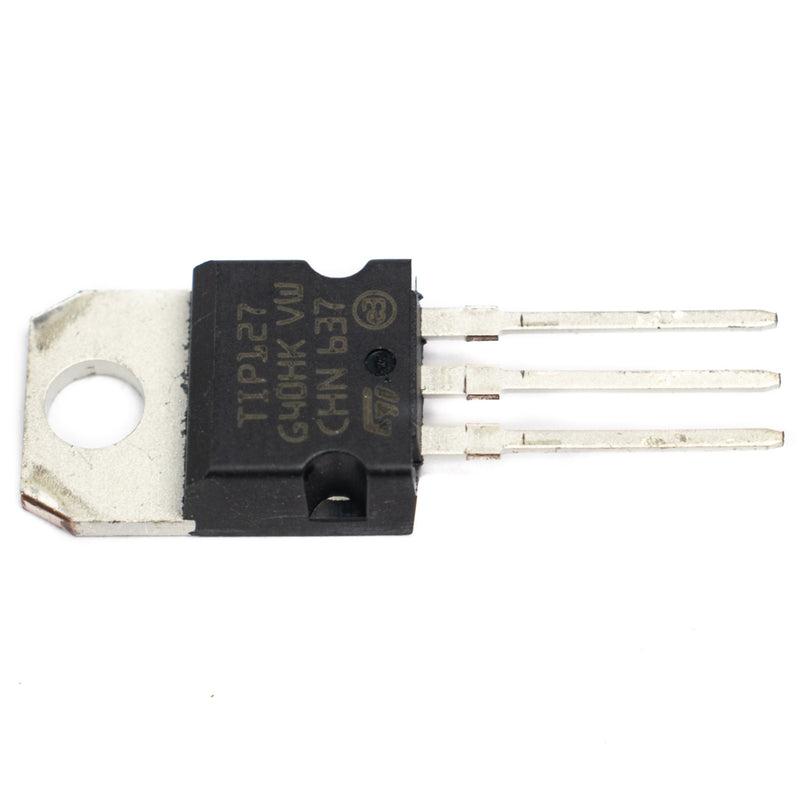

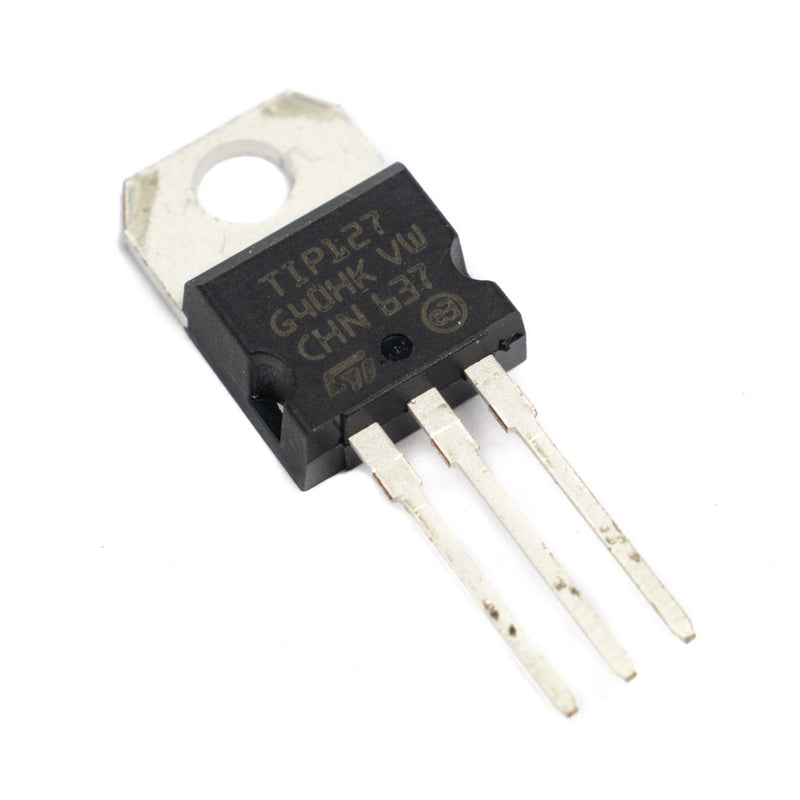

The base current for TIP127 transistor is about 120mA and the Emitter base voltage is 5V. TIP127 can switch loads up to 60V with a peak current of 8A and a continuous current of 5A. This makes it suitable for medium and high-power electronics like controlling motors, solenoids, or high-power LEDs.
Specifications
| Type | PNP Darlington Transistor |
| Collector-Emitter Voltage | 100V |
| Collector-Base Voltage | 100V |
| Continuous Collector Current | 5A |
| Continuous Base Current | 0.12A |
| Emitter Base Voltage | 5V |
| Power Dissipation | 65W |
| DC Current Gain | 50 |
| Package | TO-220 |
| Country of Origin | China |
