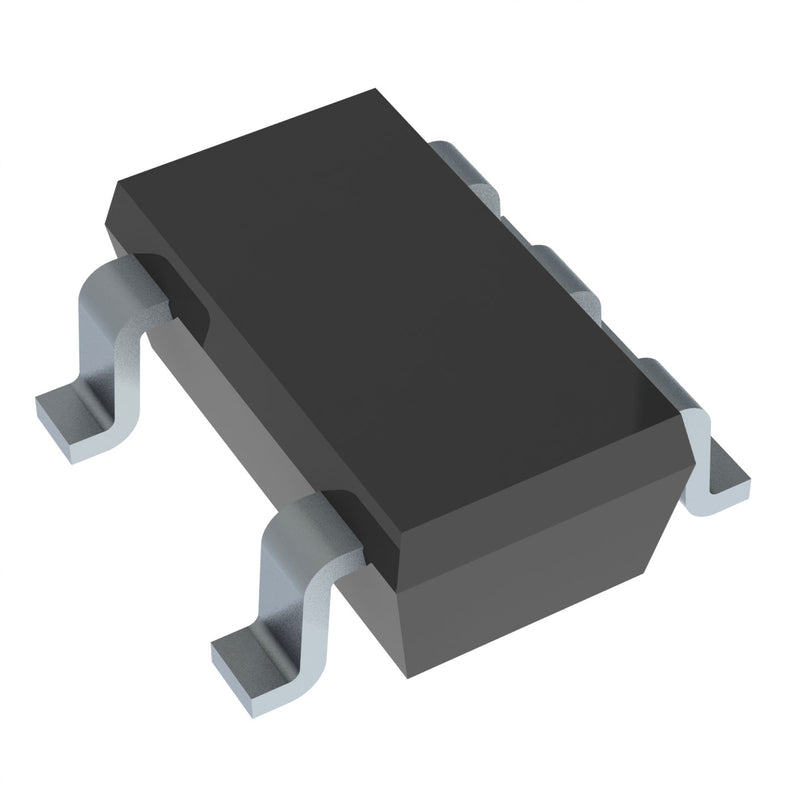

Texas Instruments SN74LVC1G32DBVR 1 Channel OR Gate IC SOT-23-5 Package

Sold By: HatchnHackSKU: AB1067K

Sale price₹ 35.27

Tax included Shipping calculated at checkout

Out of stock


This individual 2-input positive-OR gate is crafted to operate within a VCC voltage range of 1.65V to 5.5V. The SN74LVC1G32 component executes the positive logic Boolean function, combining strong output drive with minimal static power consumption across a wide VCC operating spectrum. Its used in AV Receiver Blu-ray Player and Home Theater ,Digital Picture Frame (DPF) , Embedded PC , IP Phone: Wireless, High-Speed Data Acquisition and Generation ,Motor Control: High-Voltage, Optical Networking: Video Over Fiber and EPON, Personal Navigation Device (GPS), Portable Media Player , Private Branch Exchange (PBX)


  • Supports 5-V VCC Operation
  • Inputs Accept Voltages to 5.5-V
  • Supports Down Translation to VCC • Max tpd of 3.6 ns at 3.3-V
  •  Low Power Consumption, 10-µA Max ICC
  •  ±24-mA Output Drive at 3.3-V
  •  Ioff Supports Live Insertion, Partial-Power-Down
Supply Voltage –0.5 to 6.5V
Brand Texas Instruments
Type Logic IC
No. of Pins 5
Package SOT-23-5
Mounting Type SMD
Part Number SN74LVC1G32DBVR
