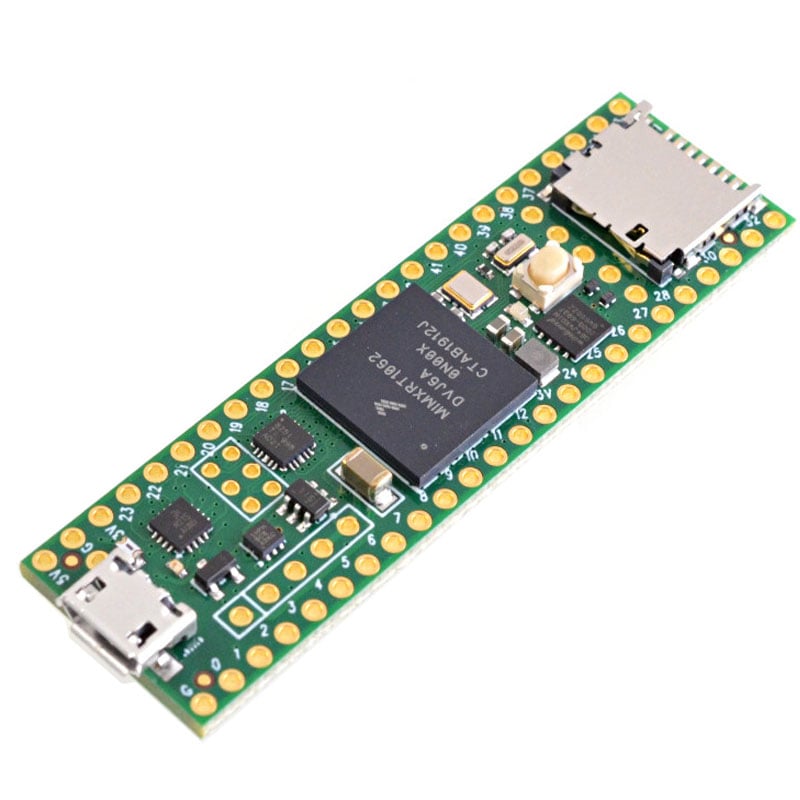

Description
- ARM Cortex-M7 at 600MHz
- 1024K RAM (512K is tightly coupled)
- 8 Mbyte Flash (64K reserved for recovery & EEPROM emulation)
- USB Host Port
- 2 chips Plus Program Memory
- 55 Total I/O Pins
| Core: |
ARM Cortex-M7 |
|---|---|
| Flash Memory (KB/MB): |
8 MB |
| RAM (KB/MB): |
1 MB |
| Rated Speed (MHz): |
600 |
| No. of Analog Inputs |
14 |
| Digital I/O Pins |
33 |
| Processor |
iMXRT1062 |
| Ethernet |
10 / 100 Mbit DP83825 PHY (6 pins) |
| USB Host |
5 Pins with power management |
| SDIO (4 bit data) |
Micro SD Socket |
| PWM Pins |
35 |
| Serial Ports |
8 |
| QSPI Memory |
2 chips Plus Program Memory |
| Bottom SMT Pad Signals |
7 |
| SD Card Signals |
6 |
| Lenght(mm) |
60.96 |
| Width (mm): |
17.78 |
| Shipping Weight | 0.008 kg |
| Shipping Dimensions | 7 × 2 × 1 cm |
