Description

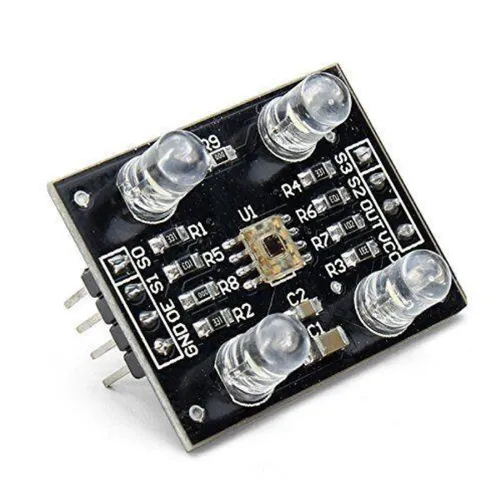

The TCS3200 TCS230 Color Sensor Module detects colors using an array of photodiodes, each with either red, green, blue, or no filter. It outputs frequency signals proportional to the detected color intensity. Ideal for color recognition in robotics, automated sorting, and ambient light sensing applications.
Features:
- Single-Supply Operation (2.7V to 5.5V)
- High-Resolution Conversion of Light Intensity to Frequency
- Programmable Color and Full-Scale Output Frequency
- Power Down Feature
- Communicates Directly to 5V Microcontroller
- S0~S1: Output frequency scaling selection inputs
- S2~S3: Photodiode type selection inputs
- OUT Pin: Output frequency
- OE Pin: Output frequency enable pin (active low), can be impending when using
- Support LED lamp light supplement control
