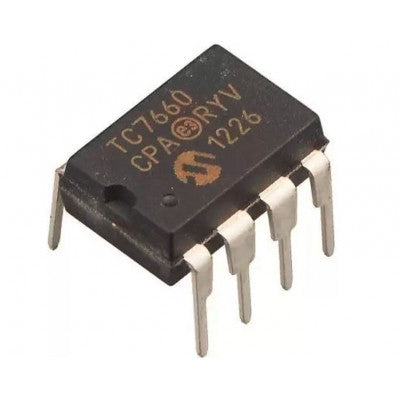

TC7660 Charge Pump DC to DC Voltage Converter IC DIP-8 Package

Sold By: HatchnHackSKU: J06-57

Sale price₹ 65.00

Tax included Shipping calculated at checkout

Min Qty:


The TC7660 is a drop-in replacement for the widely-used 7660 charge pump voltage converter. It transforms an input range of +1.5V to +10V into a corresponding -1.5V to -10V output, utilizing just two inexpensive capacitors. This design eliminates the need for inductors, reducing costs, size, and electromagnetic interference (EMI). Its built-in oscillator runs at around 10 kHz, but if lower supply current is needed, it can operate below 10 kHz by linking an external capacitor from OSC to ground. The TC7660 is offered in 8-Pin DIP Package.


  • Its mounting Style is through hole
  • It has 8 pins
  • Its package is DIP-8
