Description

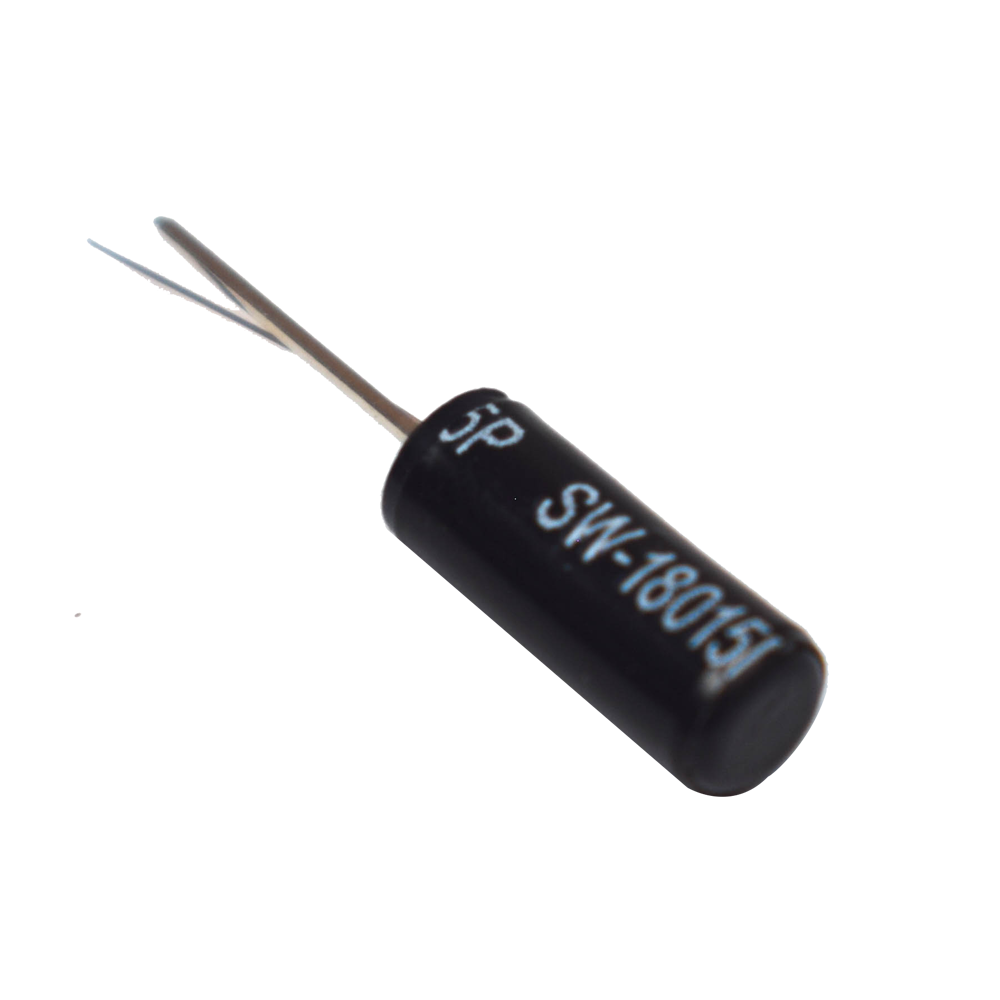

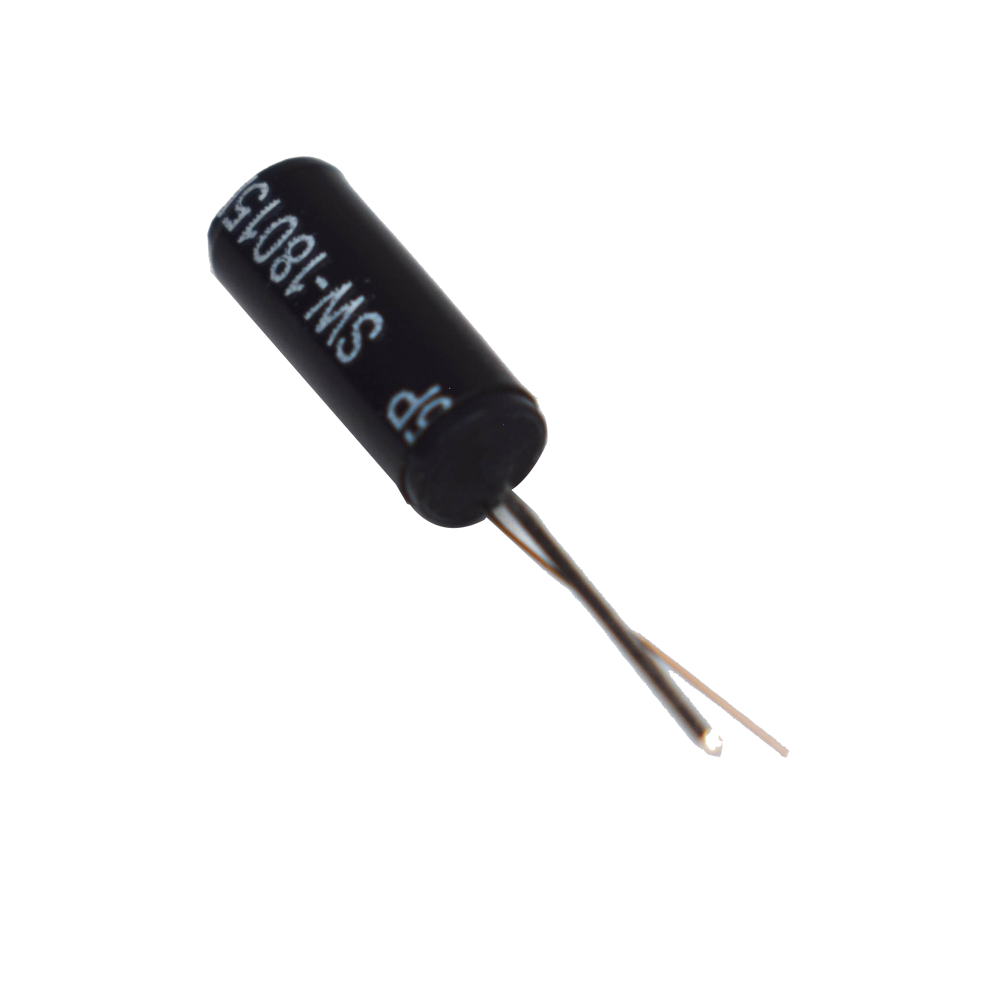

The SW-18015P is a Sealed High Sensitivity Vibration Sensor Switch. The 18015P series is a spring type with no directional vibration sensor trigger switch; it can trigger with vibration-detecting functionality from any angle. When the switch is in the open circuit OFF-state, external force to touch and corresponding vibration or movement speed achieve adequate (partial) centrifugal force, conductive pick feet will produce instant conductivity, and the switch will return to the open circuit OFF-state when the external force disappears.
Features:
- Vibration Detecting
- SW-18015P/20p series are spring type, no directional vibration sensor trigger switch, any angle can trigger
Applications
- Security devices
- Electronic scales
Dimensions:
- Diameter: 4.4mm
- Height: 11.3mm (excluding leads)
Specifications
| Product | SW-18015P/20P |
| Type | Vibration Sensor |
| Max Voltage | 12V |
| Max Current | 50mA |
| Closed Resistance |
<10 ohm |
| Open resistance | >10M ohm |
| Colour | Black |
| Diameter | 4.4mm |
| Height | 11.3mm |
| Operating temperature range | -40 to 80 Degrees C |
| Country of Origin | China |
