Description

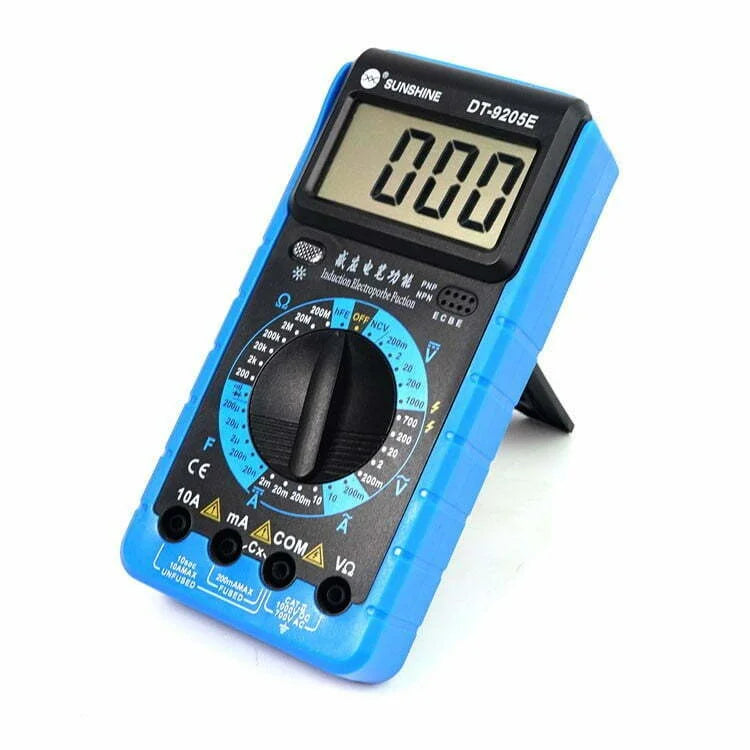

SUNSHINE DT-9205E digital multimeter is easy for operating, accurate readings, full-featured, compact, easy to carry. Pocket-type battery power to do large-screen LCD digital multimeter for engineering design, laboratory, pilot production, factory affairs, field operations and industrial maintenance applications.
The multimeter has the following main features:
1. CMOS integrated circuit. Double integral principle of A / D conversion, automatic zero, auto polarity selection, over range indication.
2. When the line through a short beep sound tests are shown dike
3. The new SUNSHINE DT-9205E digital multimeter, the appearance of new, more in line with international safety standards. Adds automatic shutdown, beep sound Japanese configuration in line with international standard test leads.
Specifications:
DC Voltage: 200mV-1000V; Accuracy: ±(0.5%+1dgt)
AC Voltage: 2V-750V; Accuracy: ±(0.8%+3dgt)
DC Current: 2mA-20A Accuracy: ±(0.5%+1dgt)
AC Current: 20mA-20A Accuracy: ±(1.0%+3dgt)
Resistance: 200Ω-200MΩ Accuracy: ±(0.8%+1dgt)
Capacitance: 20nF-200uf Accuracy: ±(4.0%+3dgt)
Diode Test: Yes
Transistor Test: Yes
Temperature Test: -40°C-1000°C
Hertz Test: 200KHz
Continuity Buzzer: Yes
Auto Power Off: Yes
Power Supply: 9V Battery 6F22 (not included)
Maximum Display: 1999
Product size: approx. 190*90*30mm/7.48*3.54*1.18”
