Description

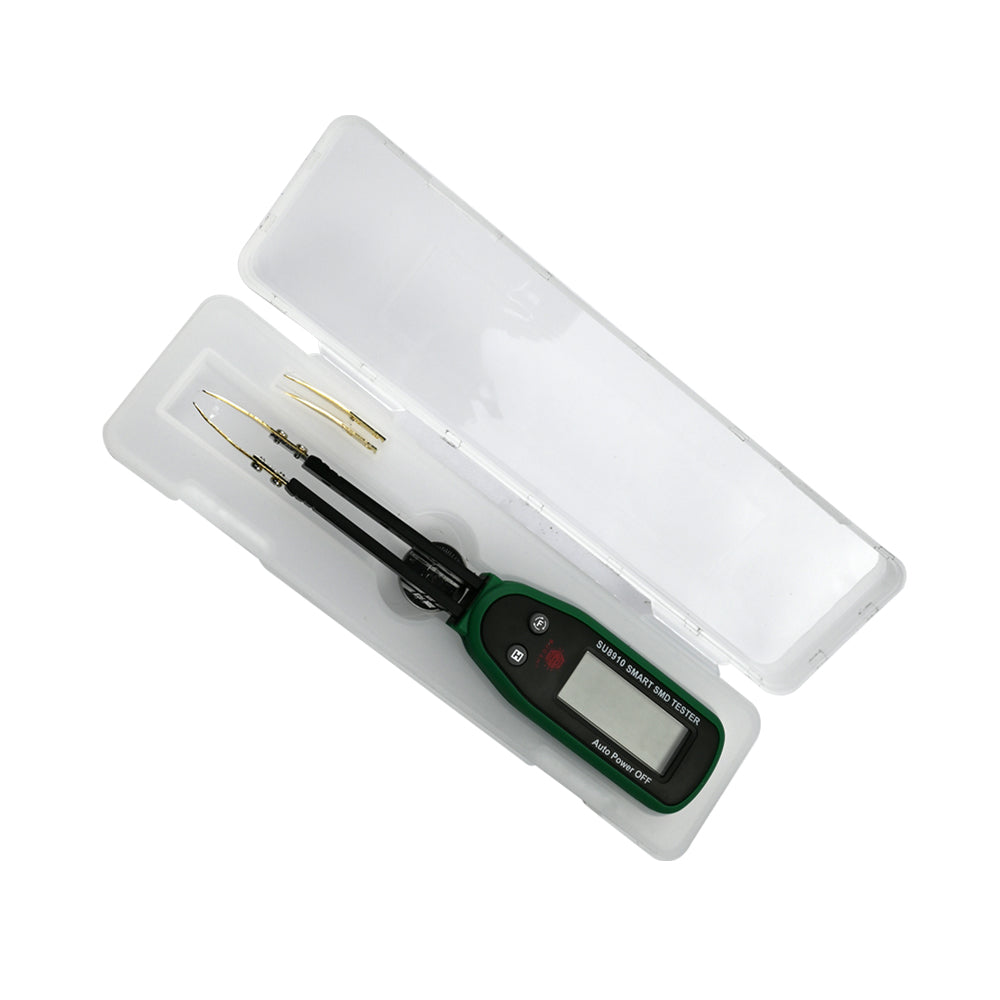

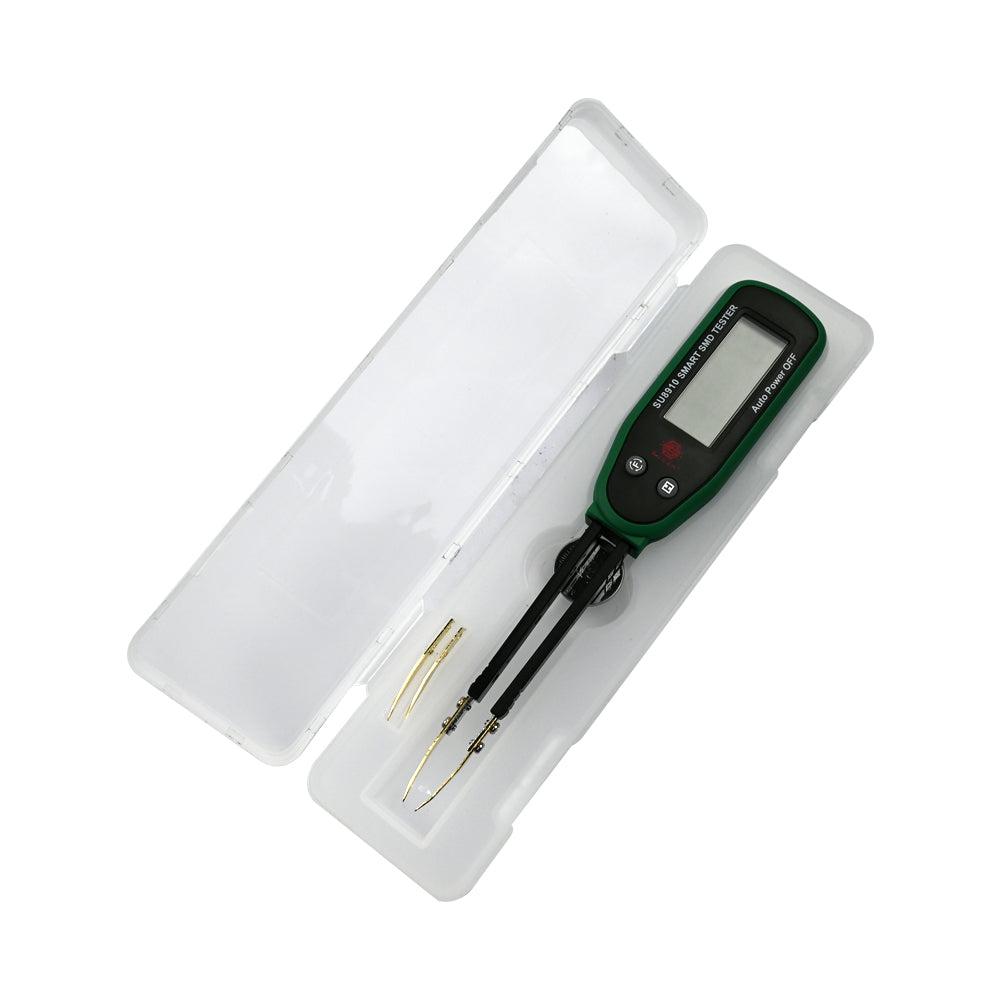

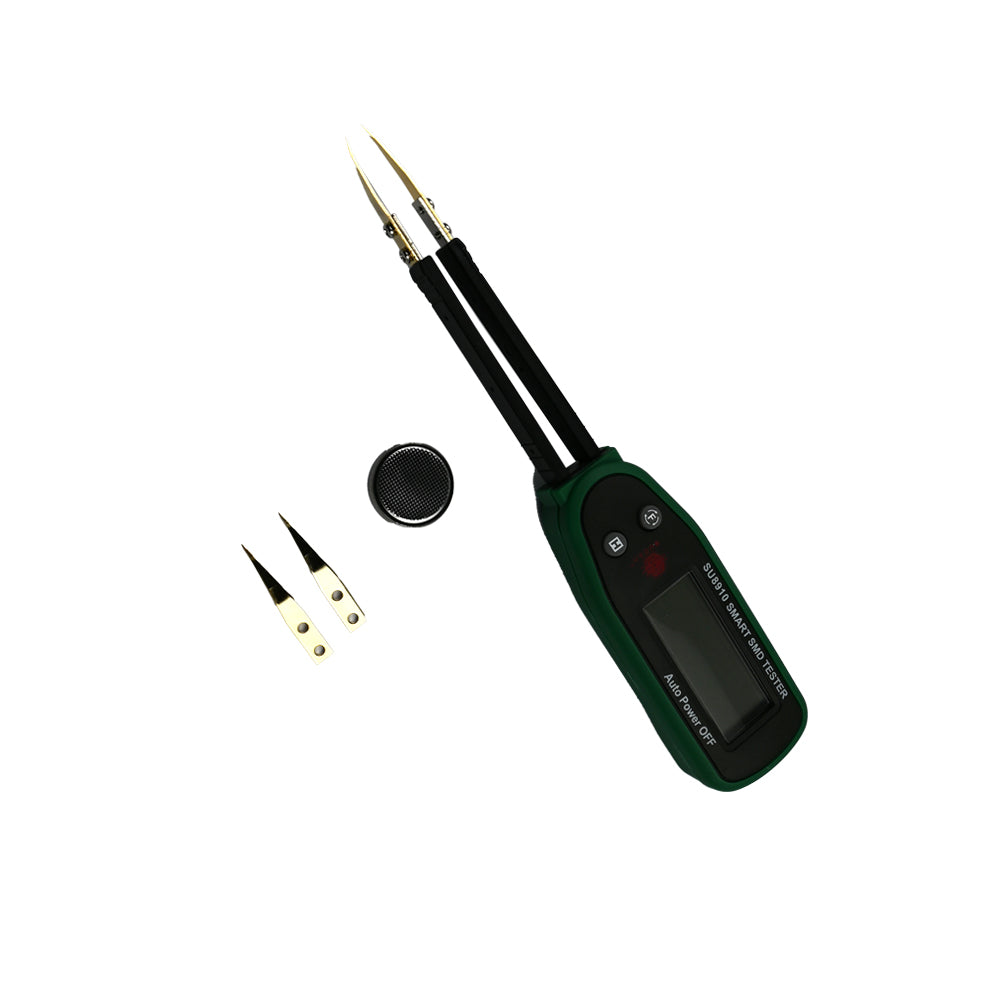

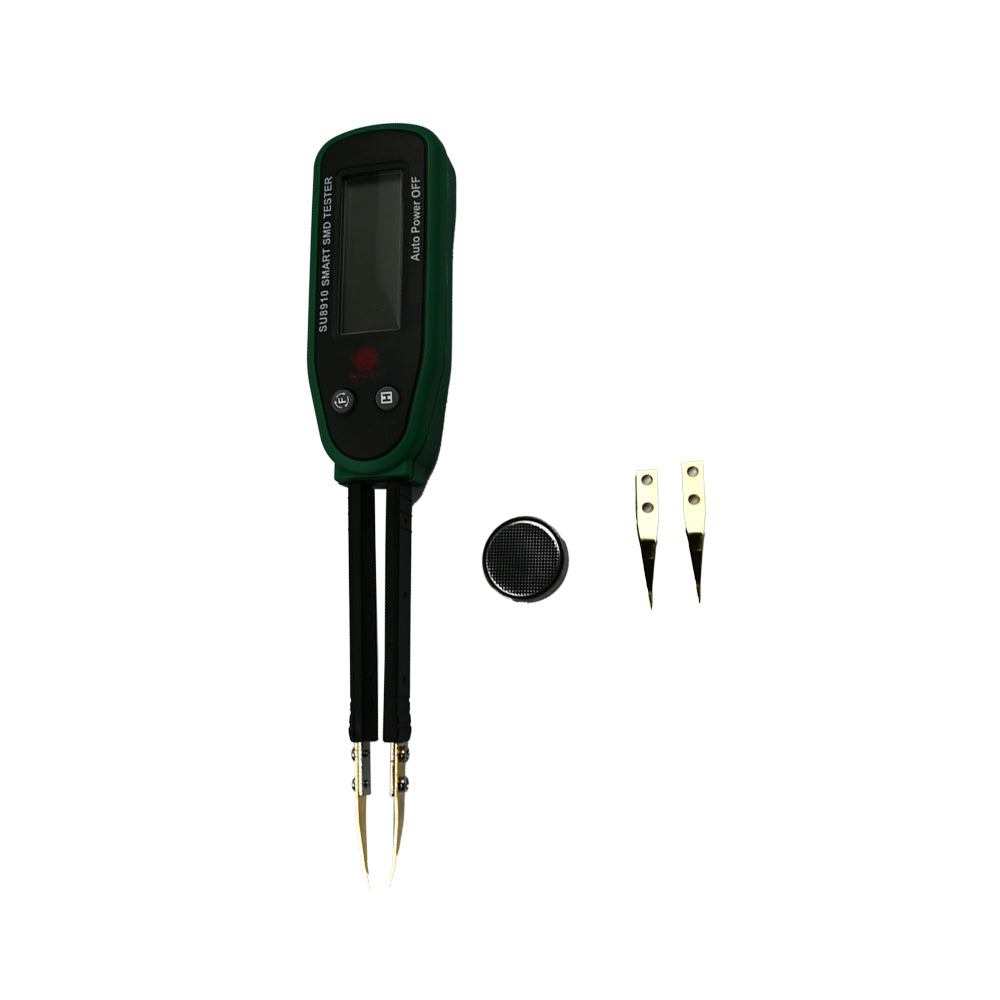

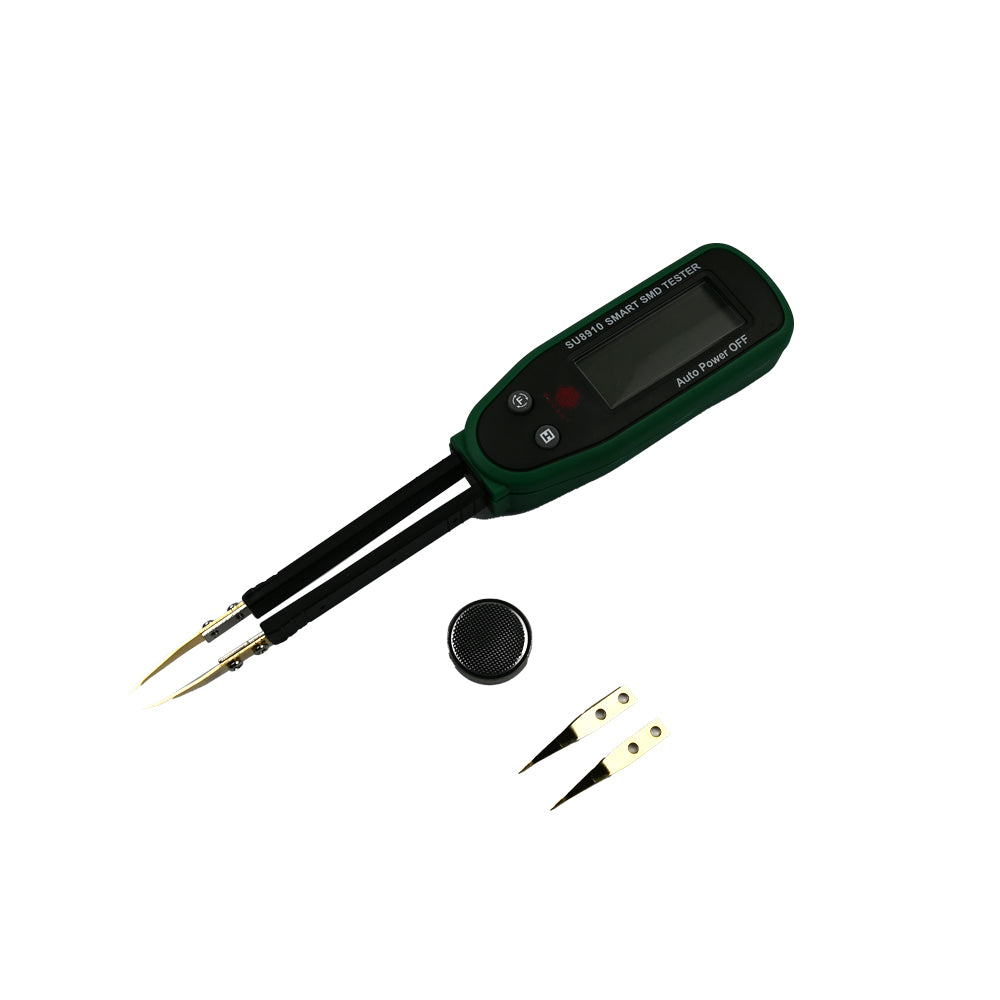

A Smart SMD tester is used to test the value of SMD Components like resistor capacitor, diode, etc. It is a battery-operated small tool, which is handheld. It is designed to test the SMD component's value. There are chip type of resistor, SMD capacitor, etc. It's entire outer surface is made of thermo plastic and elastomer. It's two pins are gold plated, which reduces the contact resistance and prevent it from getting rusty. It also has an LCD Display to show the result after testing and an auto power off feature. It comes with a 3V CR2032 Lithium cell to operate it.
Features:
- It can count 3000 LCD Display
- Its pin is gold plated which make it rusting free
- It has 3V CR2032 Lithium Cell
- It operates on 3V power supply
- Its power supply is DC
Specifications:
| Model | SU8910 |
| Type | Smart SMD Tester |
| Voltage | 3V |
| Resistance Measuring range | 300 - 30M Ohm |
| Capacitance Measuring Range1 | 3nF-30mF |
| Altitude up to | 2000 M |
| Dimension | 170 x 31 x 17mm |
| Brand | SUCAN |
| Country of Origin | China |
