Description

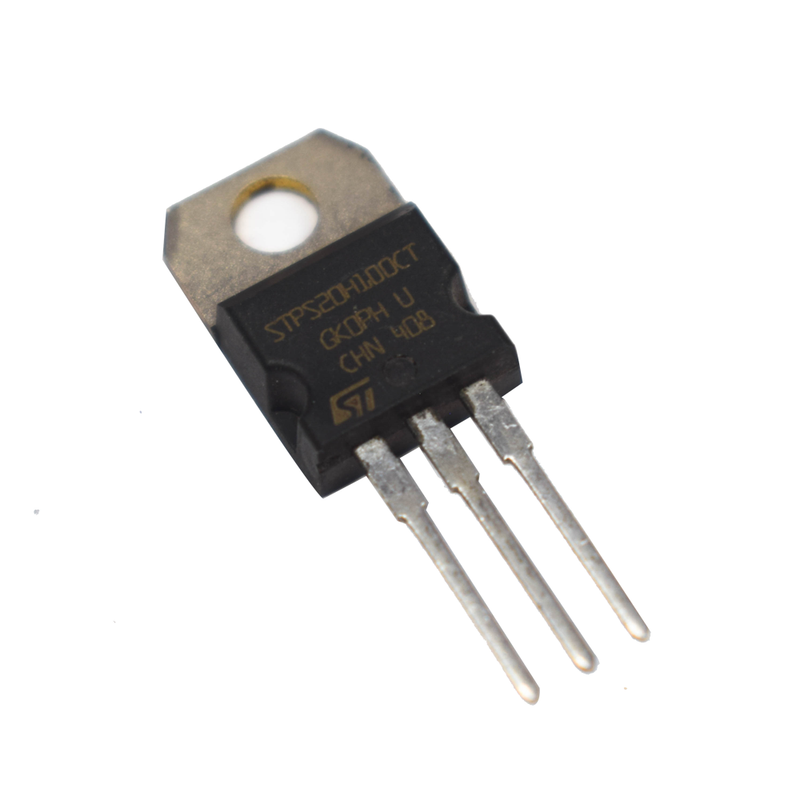

STPS20H100CT is a Schottky rectifier Its main goal is to provide rectification, or to make it easy for current to flow solely in one particular direction. They are used in this way to enable or block current in common DC circuits and to shape waves in AC circuits. Two center taps Schottky rectifier made for on-board DC-DC converters and other high frequency tiny switch mode power supplies. Its used as switching diode, DC-DC converters, adapter for notebooks and game stations, LED lighting and SMPS.
Features
-
Its maximum operating voltage is 100V
-
It provides less switching losses
-
Good trade off between leakage current and forward voltage drop
-
High junction temperature capability
-
Low leakage current
Specification
| Model | STPS20H100CT |
| Type | Schottky rectifier |
| Package | TO-220AB |
| Maximum operating voltage | 100V |
| Maximum temperature for soldering | 300°C |
| Forward current | 30A |
| Insulating voltage | 2000A |
| Operating and Storage Temperature Range | -55°C TO 175°C |
| Country of Origin | China |
