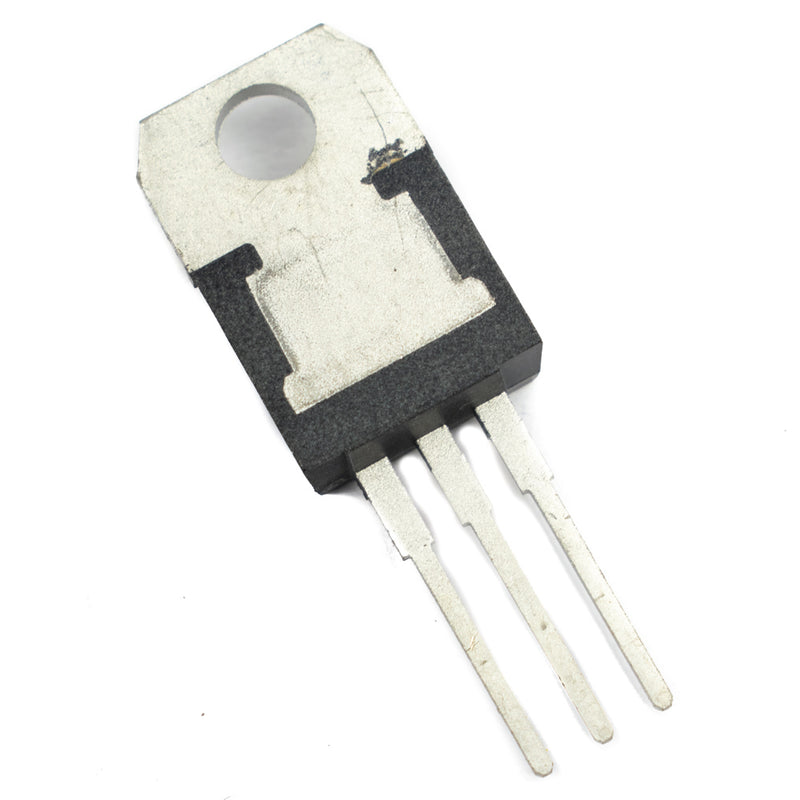

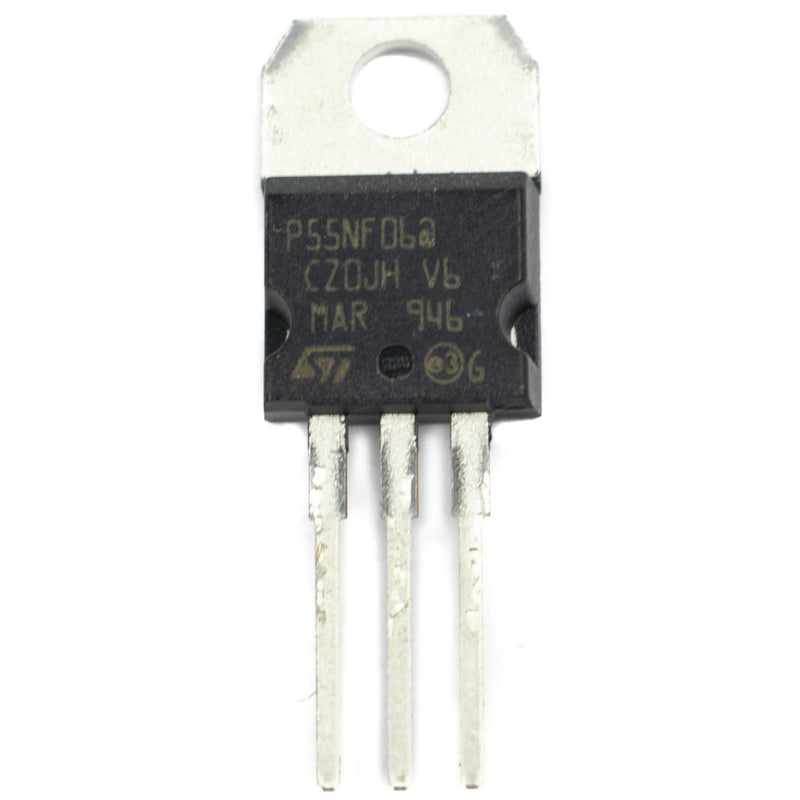

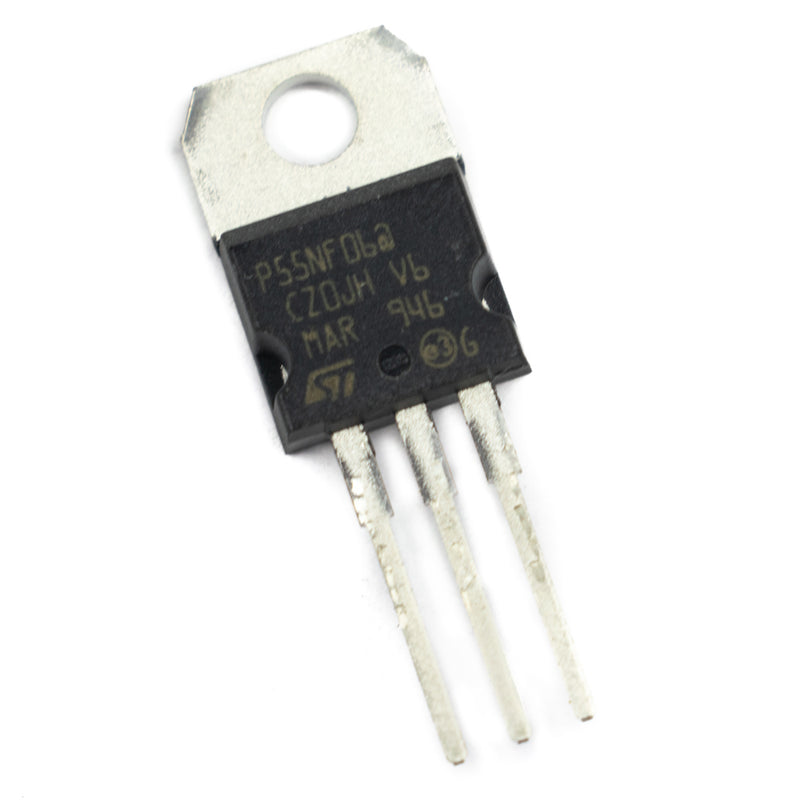

STMicroelectronics STP55NF06 60V 50A N-Channel Power MOSFET TO-220

Sold By: Sanpra EnterprisesSKU: SN74

Price:
Sale price₹ 26.50

Tax included Shipping calculated at checkout

Min Qty:

Description

STP55NF06 power MOSFETs have been developed using STMicroelectronics' unique "Single Feature Size" strip-based process, which is specifically designed to minimise input capacitance and gate charge. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics that make it suitable for use as a primary switch in advanced high-efficiency isolated DC-DC converters for telecom and computer applications, also for applications where low gate driving charge is required.

APPLICATIONS
  • High Current, High Switching Speed
  • Motor Control
  • Audio Amplifier
  • DC-DC & DC-AC Converters
  • Automotive
Specifications
Model STP55NF06
Brand STMicroelectronics
Drain-Source Voltage 60V DC
Drain-Gate Voltage 60V DC
Gate-Source Voltage ±20V DC
Drain Current 50A @ 25°C, 35A @100°C
Mounting Through Hole
Package TO-220
Pulsed Drain Current 200A
Power Dissipation 30W
Single Pulse Avalanche Energy 350mJ
Operating Temperature -55°C to 175°C
