Description

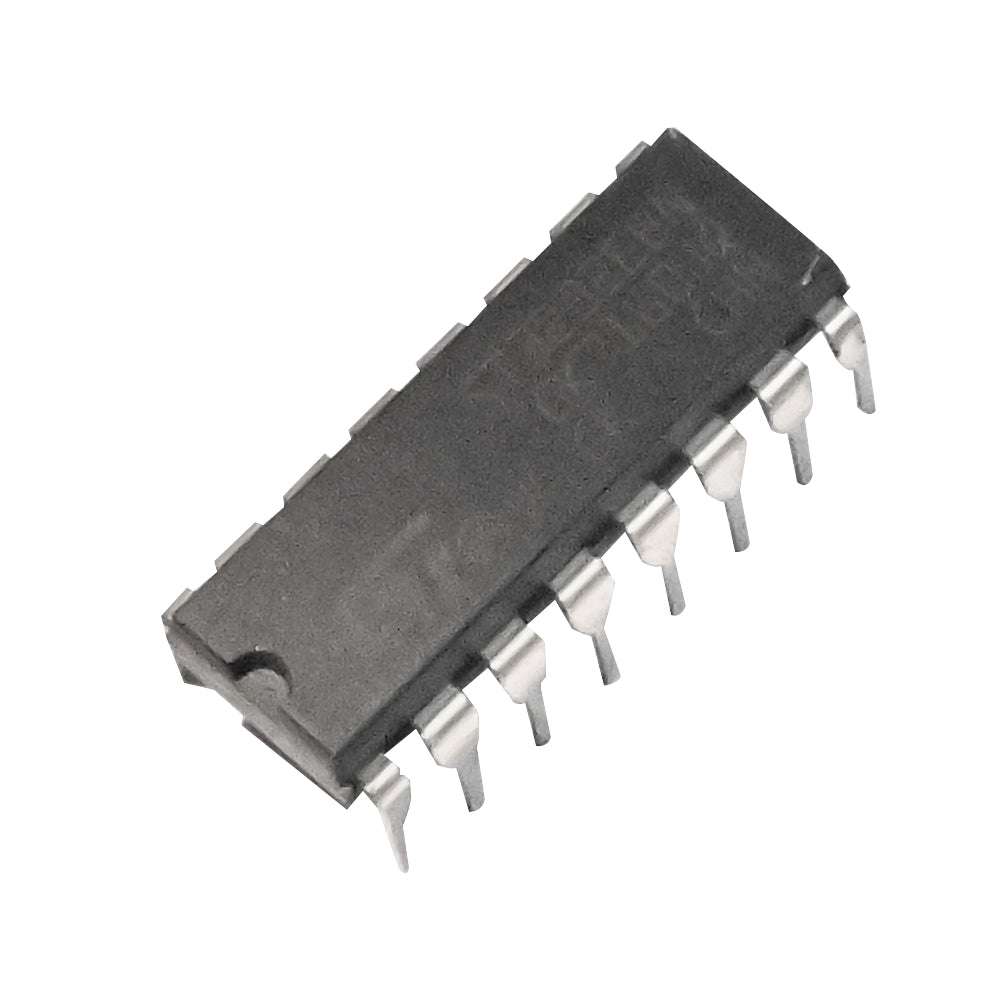

The ST3232EBN has high data-rate capabilities and low power needs. and improved electrostatic discharge (ESD) defense to 8 kV utilizing IEC1000-4-2 Contact Discharge and 15 kV using the Human Body Model. With a twin charge pump and a patented low dropout transmitter output stage, the ST3232E offers full RS-232 performance from 3 to 5 V supply. It's 16 Pin DIP package IC. Its mounting Style is through a hole. Its applications are Notebook, Subnotebook and Palmtop Computers, Battery Powered Equipment, Hand-Held Equipment, Peripherals, and Printers.
Features:
- ESD protection for RS-232 I/O pins
- ±15 kV human body model
- ±8 kV IEC 1000-4-2 contact discharge
- 300 µA supply current
- 250 kbps minimum guaranteed data rate
- 6V/µs minimum guaranteed slew rate
- Meet EIA/TIA-232 specifications down to 3 V
| Specifications | |
|---|---|
| Supply Voltage | 3V ~ 5.5V |
| Part Number | ST3232EBN |
| Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package | DIP-16 |
| No. of Pins | 16 |
| Type | Transceiver |
| Brand | STMicroelectronics |
