Description

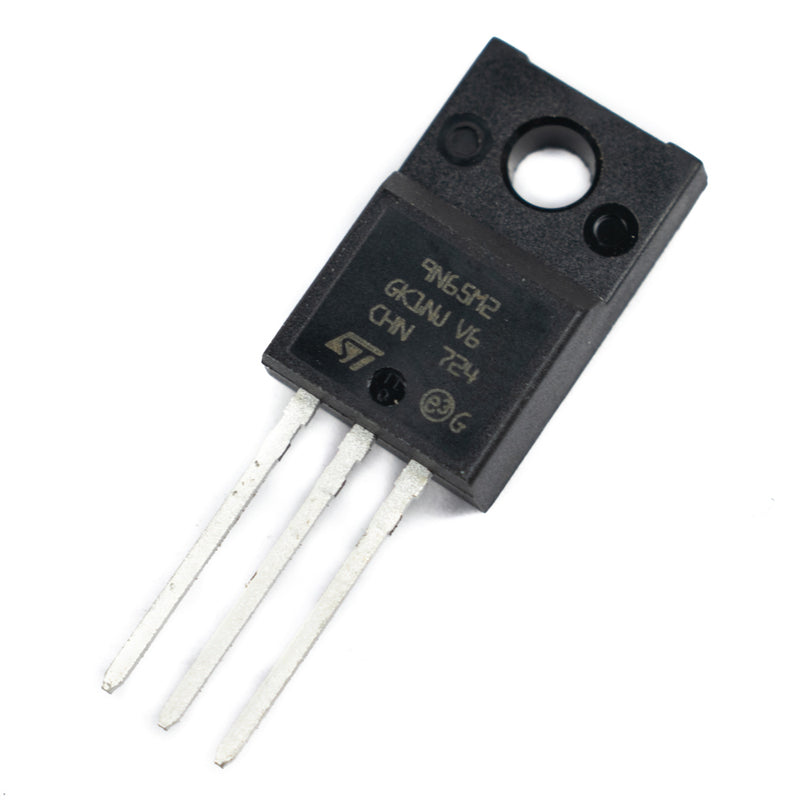

The ST-MICRO 9N65 is an N-channel mode power MOSFET using ST MICRO’s advanced technology to provide customers with planar stripe and DMOS technology. This technology allows a minimum on-state resistance and superior switching performance. It also can withstand high energy pulse in the avalanche and commutation mode.
The ST-MICRO 9N65 is generally applied in high-efficiency switch mode
power supplies and uninterruptible power supplies.
Features
- High Switching Speed
- Improved dv/dt Capability
- 100% Avalanche Tested
Specifications
| Model | 9N65 |
| Brand | STMicroelectronics |
| Transistor Type | MOSFET |
| Type of Control Channel | N-Type |
| Number of Channels | 1 |
| Vds - Drain-Source Breakdown Voltage | 650V |
| Id - Continuous Drain Current | 9A |
| Rds On - Drain-Source Resistance | 26m ohms |
| Vgs th - Gate-Source Threshold Voltage | 1.9V |
| Qg - Gate Charge | 157nC |
| Operating Temperature | -55°C - 175°C |
| Pd - Power Dissipation | 330W |
| Channel Mode | Enhancement |
| Package | DIP |
| Mounting | Through Hole |
| Quantity | 1 |
| Country of Origin | China |
