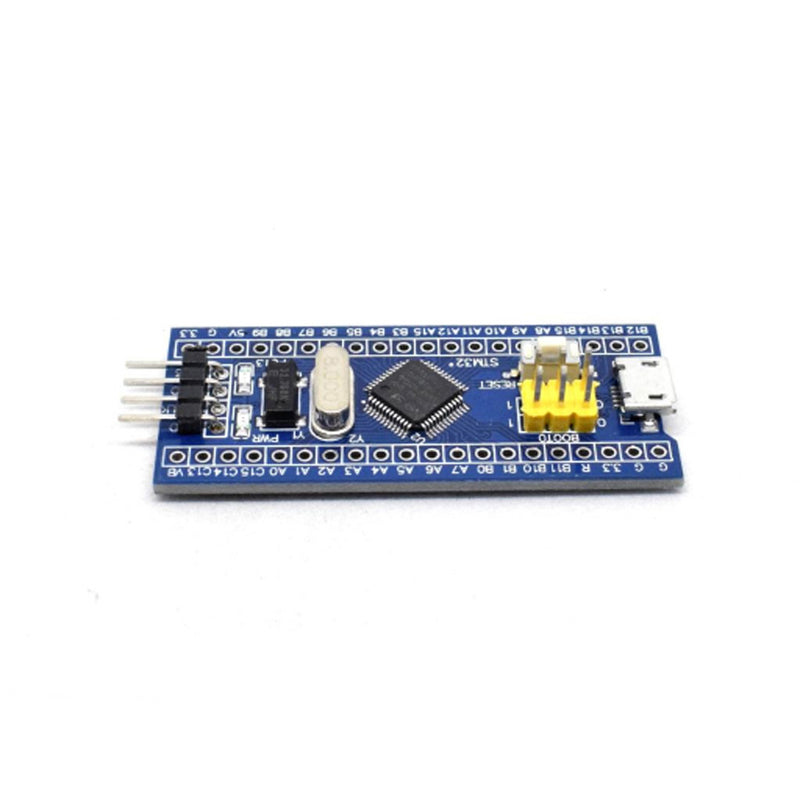

STM32F103C6T6 Minimum System ARM Core STM32 Development Board

Sold By: HatchnHackSKU: 6S17

Price:
Sale price₹ 354.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

STM32F103C6T6 Development Board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C6T6. It has an onboard Mini USB interface, you can give the board power supply and USB communication. This board is very suitable for learners that want to learn STM32 microcontroller with ARM Coretex-M3 32-bit core.

Features

  • On-board SWD interface, and it can be programmed with ST-LINK V2.
  • On-board reset button and power indicator LED.
  • On-board test indicator LED, and the beginners can program to control it.
  • On-board 100mA 3.3V Regulator.
  • Operating voltage: 3.3 V.
  • IO logic voltage: 3.3V
  • Digital I/O Pins: 37.
  • Analog Input Pins: 10 (12bits).
  • USB interface:1
  • Flash Memory: 32KB.
  • SRAM: 10KB.
  • Programmable Clock Speed: 72 MHz (MAX).
  • Model: STM32F103C6T6
  • Core: ARM 32 Cortex-M3 CPU.
  • Debug mode: SWD.
  • 72MHz work frequency.
  • Reset(POR/PDR).
  • 4-16MHz crystal.
  • On-board Mini USB interface, you can give the board power supply and USB communication.

Specifications

Model STM32F103C6T6
Core ARM 32 Cortex-M3 CPU
Debug mode SWD
work frequency 72MHz
flash memory 32KB
SRAM 10KB
Power Supply 2.0-3.6V
