Description

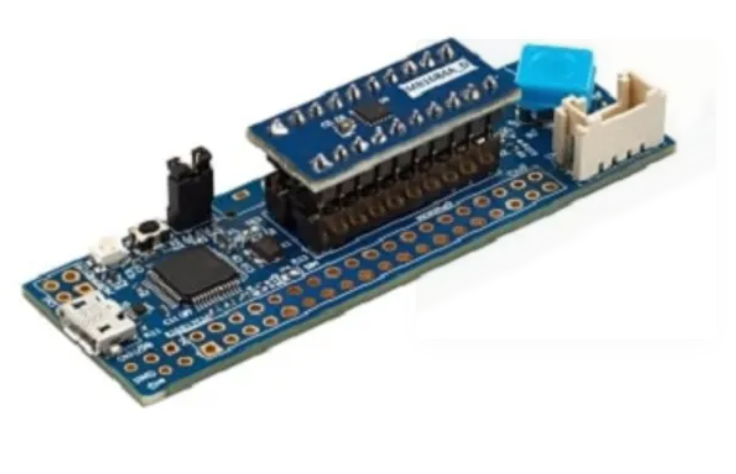

It's a STM32C0116-DK 32 Bit Microcontroller Discovery Kit. The STM32C0116-DK is a 32-bit microcontroller Discovery Kit from STMicroelectronics. It is based on the STM32C0116 microcontroller‚ which belongs to the STM32 Cortex-M0+ family. The Discovery Kit is designed to provide an easy and cost-effective way for developers to evaluate‚ prototype‚ and develop applications using the STM32C0116 microcontroller. The kit is built around the STM32C0116 microcontroller‚ which features an ARM Cortex-M0+ core running at up to 48 MHz. It has 16 KB of Flash memory and 4 KB of SRAM‚ offering sufficient resources for a wide range of applications. The kit includes user push-buttons‚ LEDs‚ and a reset button‚ providing a convenient user interface for testing and interacting with the microcontroller.
| Specifications | |
|---|---|
| RAM | 4 KB |
| Package | STM32Cube MCU Package |
| Interface Type | UART,USB, SPI, I2C |
| Operating Voltage | 3.3V and 5V. |
| Model | STM32C0116-DK |
| Processor | STM32C0116 |
| Clock Frequency | 48 MHz |
| Brand | STMicroelectronics |
| Type | Discovery Kit |
