Description

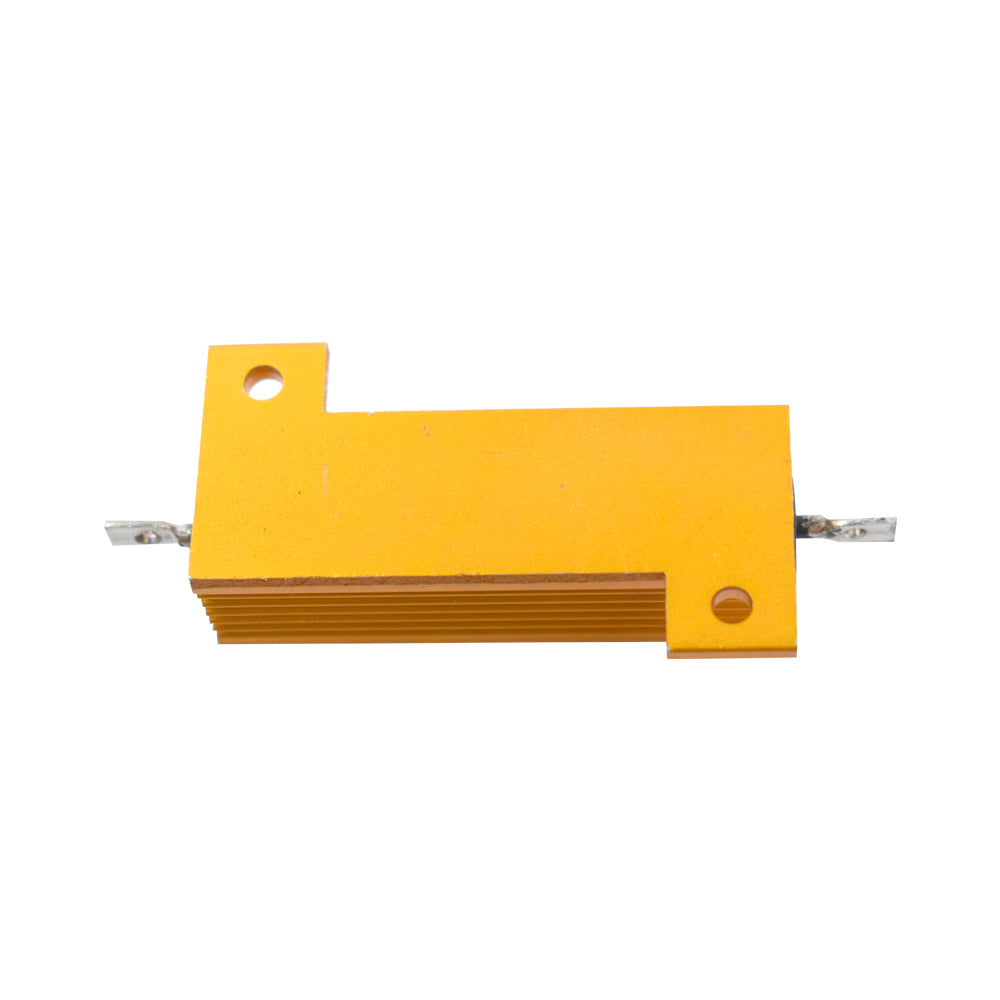

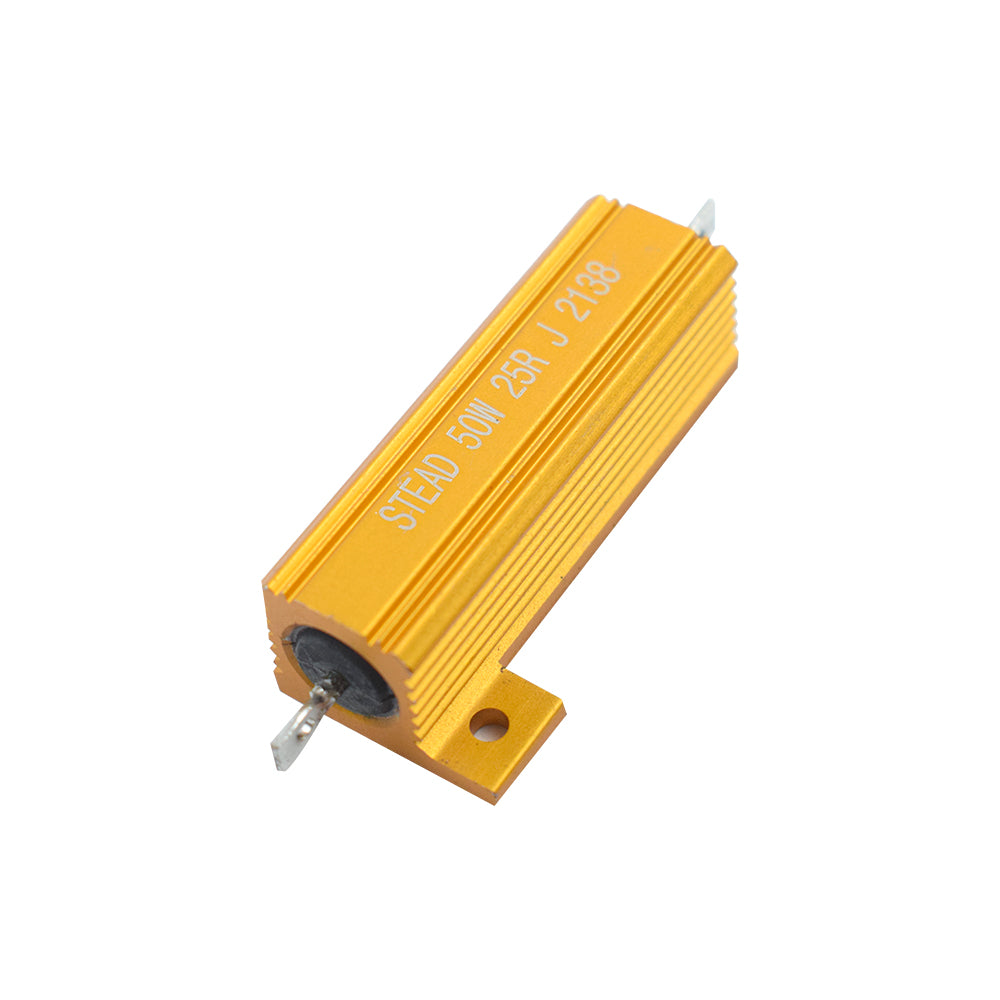

Its Stead 25 Ohm 25R 50 Watt Aluminum Housed Wire Wound Chassis Mount Resistor. Its a Power Resistor with Aluminum case provide extra durability to the resistor and it works as a safety shield for the resistor, and its used to dissipate the heat, which is generated by the high power resistors. its material is Aluminum alloy. Its a passive electrical device that controls the current flow. It commonly used for general-purpose use, power supplies, power generation and the traction industry.
Applications:
- It's used in Power Supplies
- Power Generation
- Traction industry
- Other industrial Control equipment
- Machine tools.
Specification
| Product |
Stead 25 Ohm 50W Aluminum Housed |
| Coating, Housing Type | Aluminum |
| Material | Aluminum Alloy |
| Temperature | -55C To 250C |
| Dimension (mm) | 50*16.2 (mm) |
| Core Material | Ceramic Steatite |
| Power Rating | 50 Watts |
| Wire material | Nichrome |
| Resistance | 25 Ohm |
| Country of Origin | China |
