Description

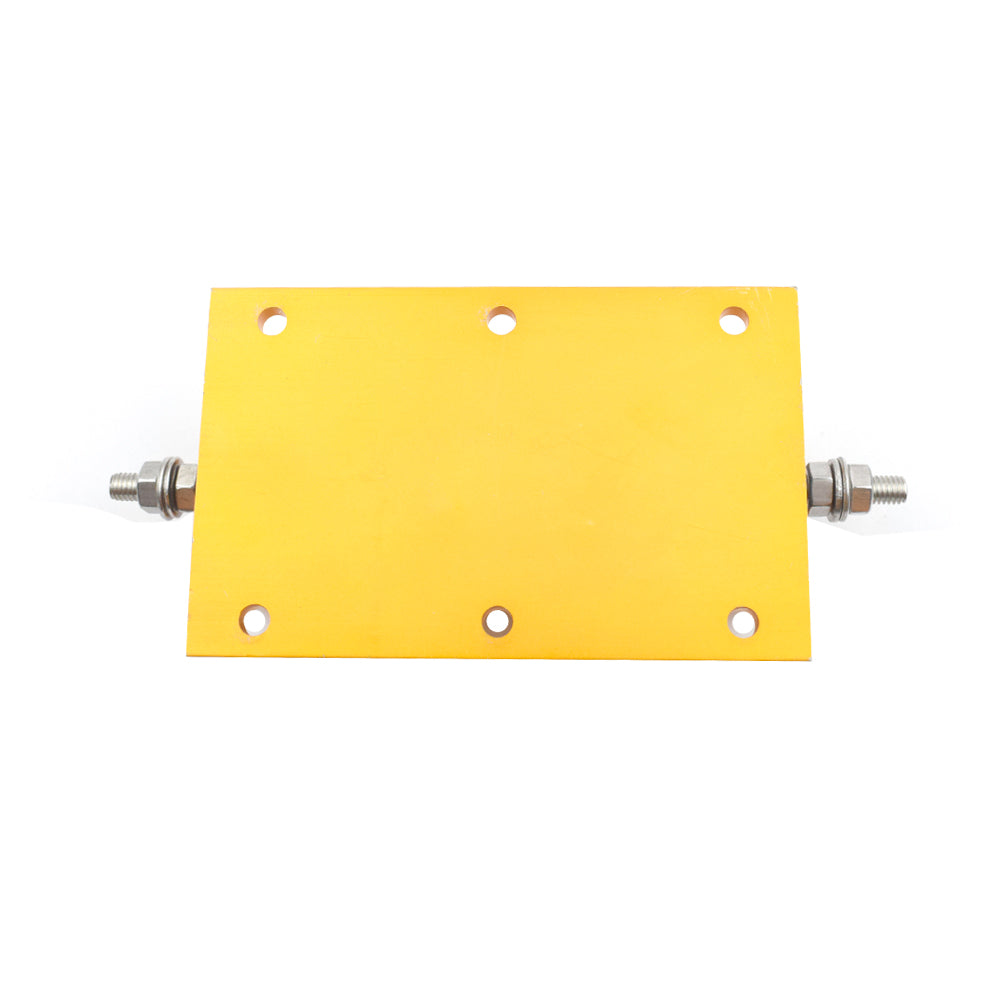

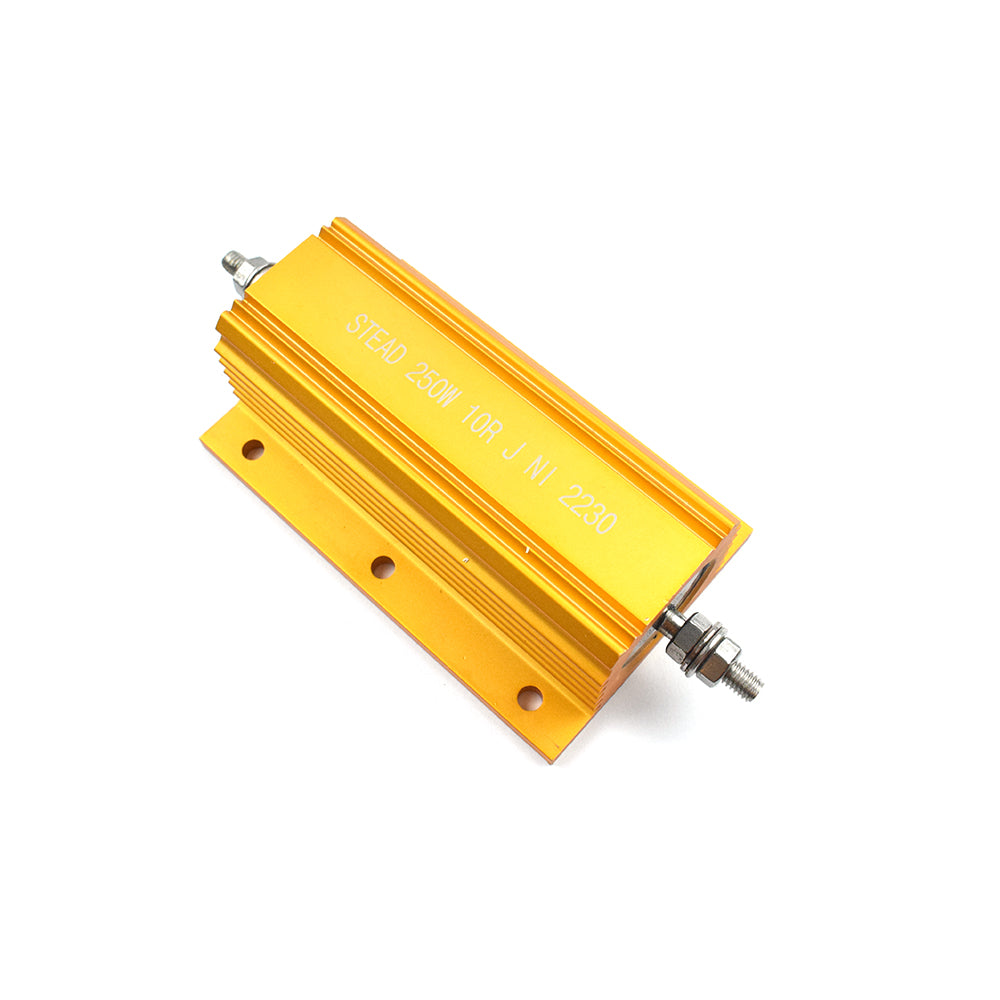

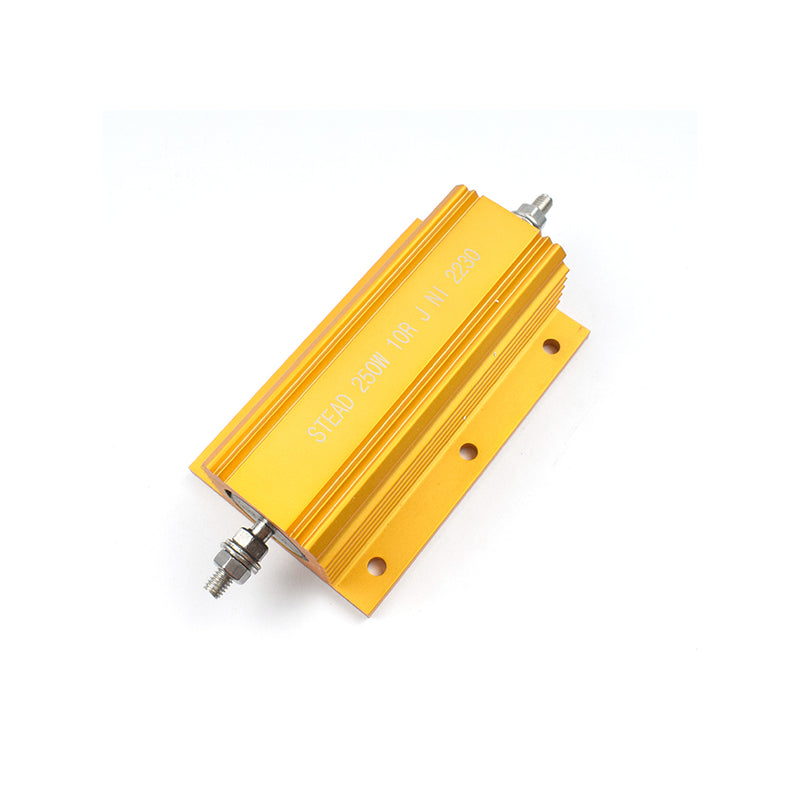

Its Stead 10 Ohm 250 Watt Aluminum Housed Wire Wound Chassis Mount Resistor. Its a Power Resistor with Aluminum case provide extra durability to the resistor and it works as a safety shield for the resistor, and its used to dissipate the heat, which is generated by the high power resistors. its material is Aluminum alloy. Its a passive electrical device that controls the current flow. It commonly used for general-purpose use, power supplies, power generation and the traction industry.
Applications:
- It's used in Power Supplies
- Power Generation
- Traction industry
- Other industrial Control equipment
- Machine tools.
Specifications:
| Model | 250W 10R Aluminum Housed |
| Coating, Housing Type | Aluminum |
| Material | Aluminum Alloy |
| Power (w) | 250W |
| Dimensions (mm) | 114x45x41(mm) |
| Thickness of Lead (mm) | 5.5mm |
| Resistance | 10 Ohm |
| Country of Origin | China |
