Description

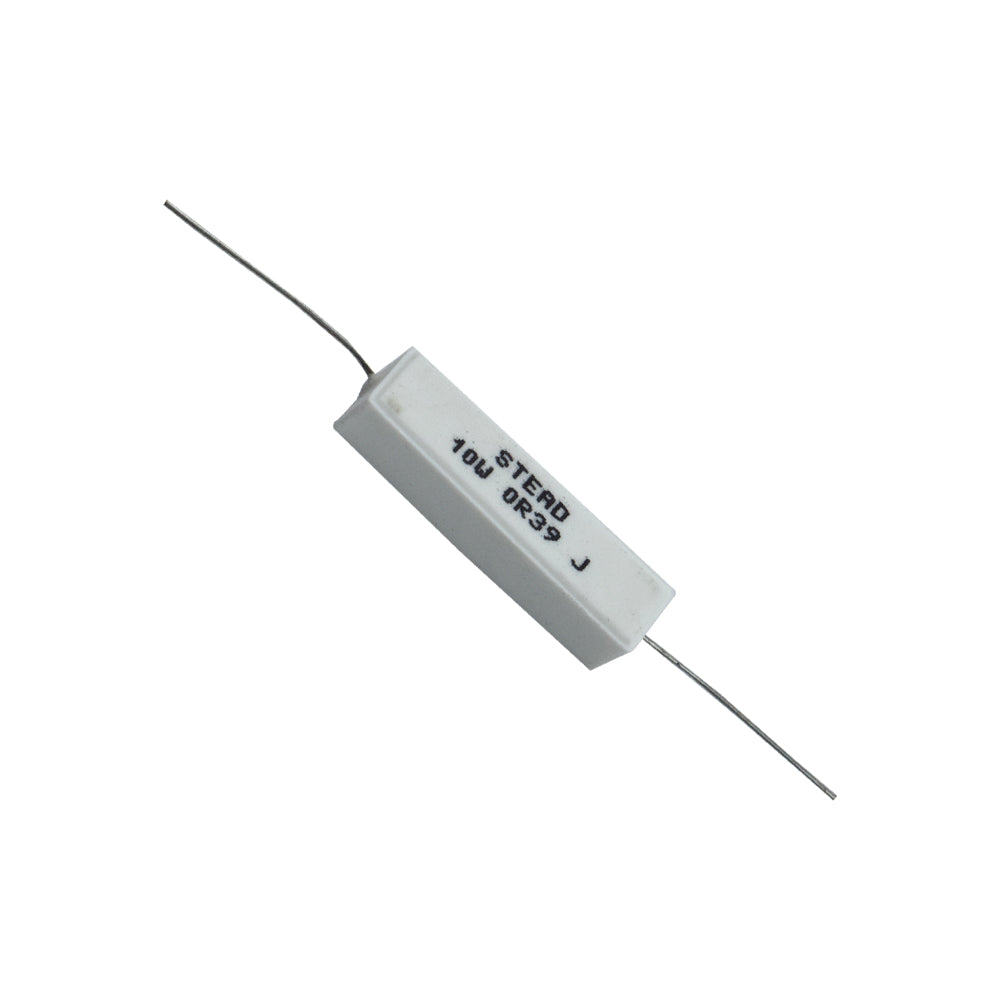

10W 0.39 Ohm Wire Wound Resistor is a passive electrical device that controls the current flow. The resistive element is an insulated metallic wire wound around a non-conductive substance core. The high-resistivity wire material typically comprises nickel-chromium (Nichrome), a copper-nickel-manganese alloy. Glass, plastic, and ceramic are typical core materials.
Applications:
- It's used in Circuit breaker fuses to make the fusible resistor
- Battery-testing equipment.
- X-ray equipment Flowmeters.
- Power supplies Medical Equipment.
- Transducers Instrumentation.
- Lighting controls.
- Telecommunications.
- Machine tools.
Specifications:
| Model | 10W 0R39 |
| Resistance |
0.39 Ohm |
| Type | SQP |
| Quantity | 25 |
| Tolerance | 5% |
| Power | 10W |
| Dimensions | 38.8mm* 9.6mm |
| Thickness of Lead | 0.6mm |
| Country of Origin | China |
