Description

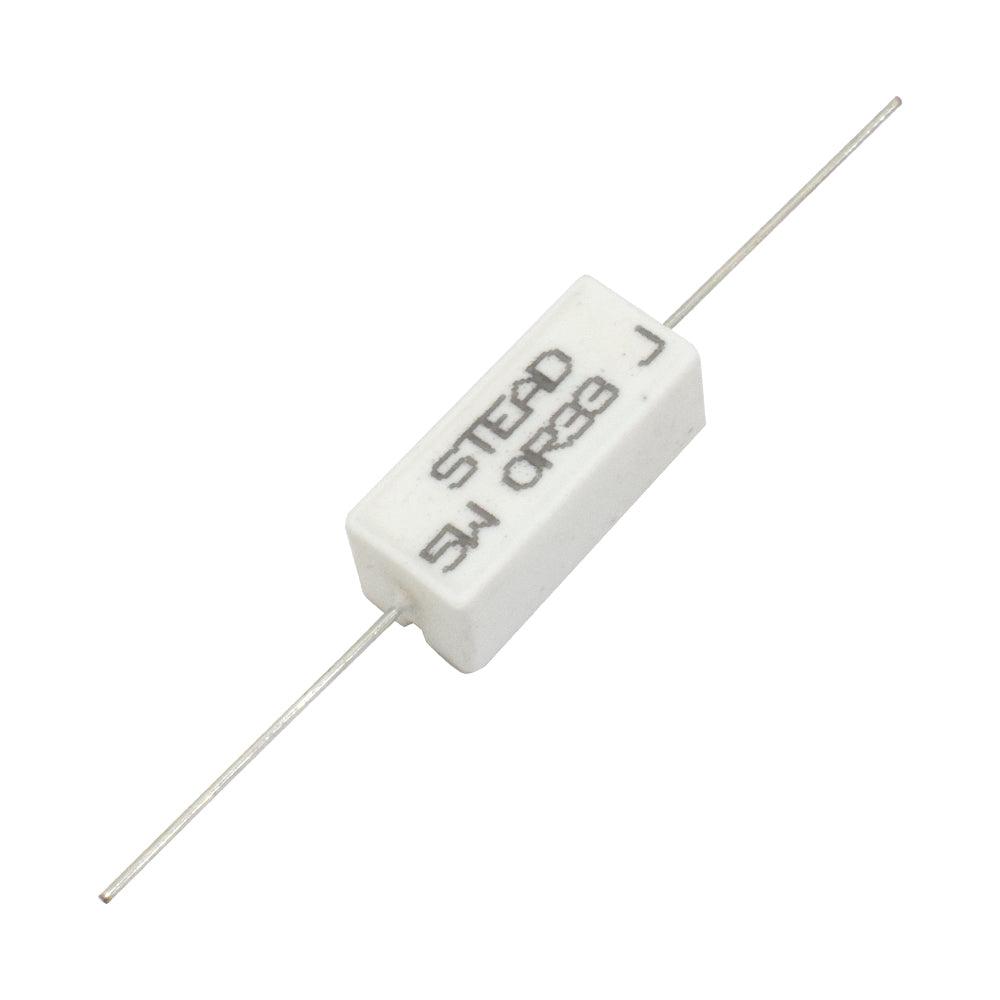

5W 0R33 is a Power wire wound resistor. It can have a wire of power oxide film elements. It's entirely fireproof construction. This design provides a resistor with high insulation resistance and low surface temperature. These resistors are ideally suited to a range of areas where low cost and efficient thermal performance are essential to design criteria. Metal film cores adjusted by laser spiral are used where the resistor value is above that suited to the wire.
Features:
- Its value range is too wide
- Its operating temperature is -55 to 250 Degree centigrade
- Its construction is inorganic flameproof
- Its colour is white
Specifications:
| Product | 5W 0R33 |
| Type | Wire wound Ceramic Resistor |
| Type | MPR |
| Tolerance | 5% |
| Value | 0.33 Ohm |
| Quantity | 25 |
| Dimensions | 22.5mmx9mmx9mm |
| Country of Origin | China |
