Description

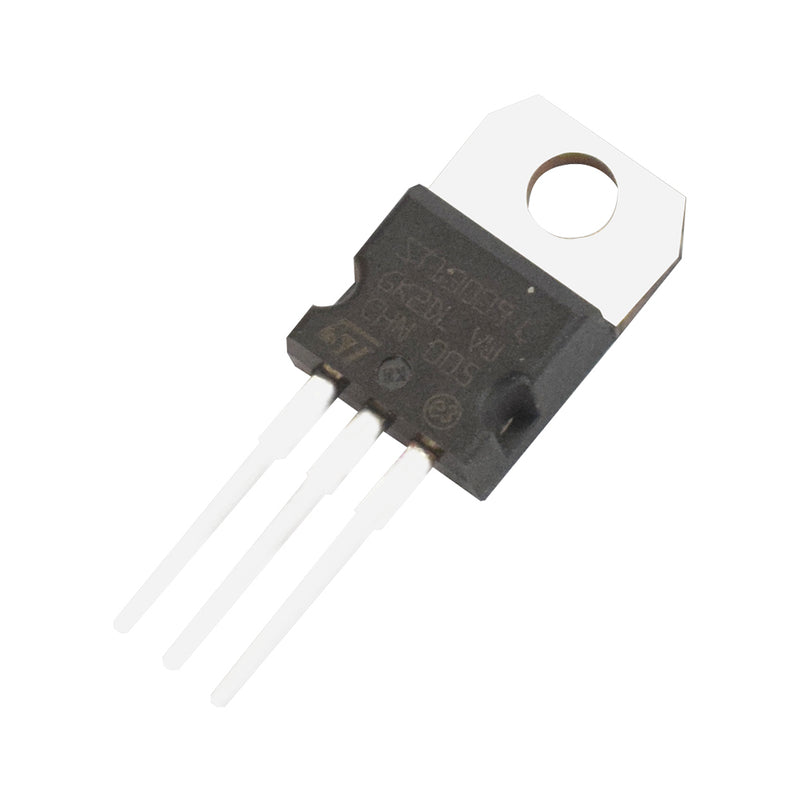

13009L STMicroelectronics is an NPN Switching Transistor designed for high voltage, high-speed power switching in an inductive circuit. The MJE13009L is a silicon multi-epitaxial mesa NPN power transistor mounted in a Jedec TO-220 plastic package. They are frequently used in motor control, switching regulators, and other applications.
Features
- High Current Capacity
- High-speed switching
- Wide SOA
Applications
- Switch Mode Power Supply
- Motor Control
- Switching Capability
Specifications
| Model | 13009L |
| Brand | STMicroelectronics |
| Transistor Type | NPN Power Transistor |
| Collector-Emitter Voltage (VCEO) | 400V |
| Collector-Emitter Voltage (VCEV) | 700V |
| Emitter-Base Voltage |
12V |
| Base Current |
6A |
| No. of Pins | 3 Pin |
| Blocking Capacity |
700V |
| Storage/Operating Temperature | -65°C ~ 150°C |
| Package | TO-220 |
| Mounting | Through Hole |
| Power Dissipation | 100W |
| Country of Origin | China |
