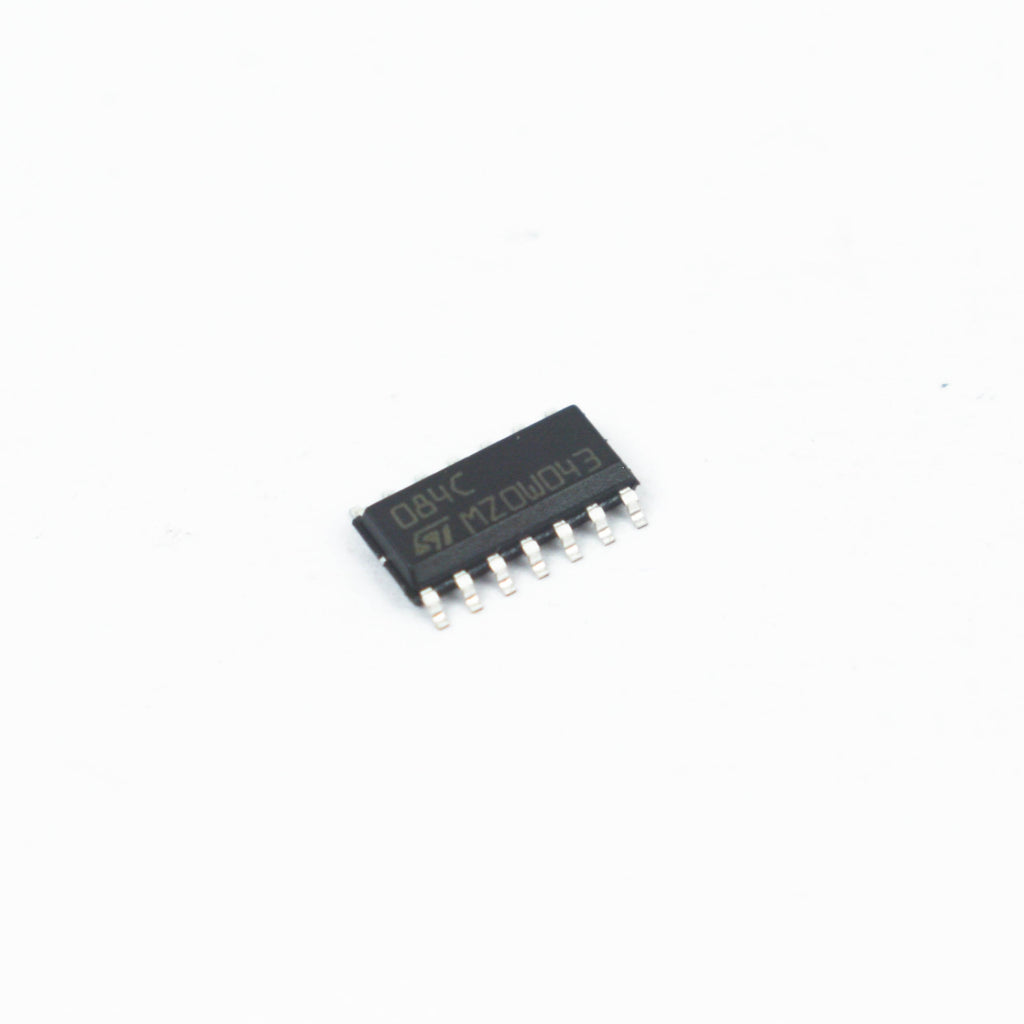

ST TL084C JFET Quad Operational Amplifier SO-14 (Pack of 5)

Sold By: HatchnHackSKU: 0

Min Qty: 1


STMicroelectronics TL084C is a JFET Quad Operational Amplifier. The TL084C is a high-speed, JFET input, a quad operational amplifier with well-matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. High slew rates, low input bias and offset currents, and a low offset voltage temperature coefficient characterize the devices. It is a surface mount(SMD) active component with plastic micro package SO-14.


  • Wide common-mode (Up to VCC) and differential voltage range
  • Low input bias and offset current
  • Output short-circuit protection
  • High input impedance JFET input stage
  • Internal frequency compensation
  • Latch-up free operation
  • High slew rate:  16 V/μs (typical)


 Model 084C
 Brand STMicroelectronics
 Mounting Type SMD
 No. of Pin 14
 Supply Voltage range (VCC) 6 to 36 V
 Supply Voltage ±18V
 Input Voltage ±15V
 Operating temperature 0~70°C
 Packaging SO-14
