Description

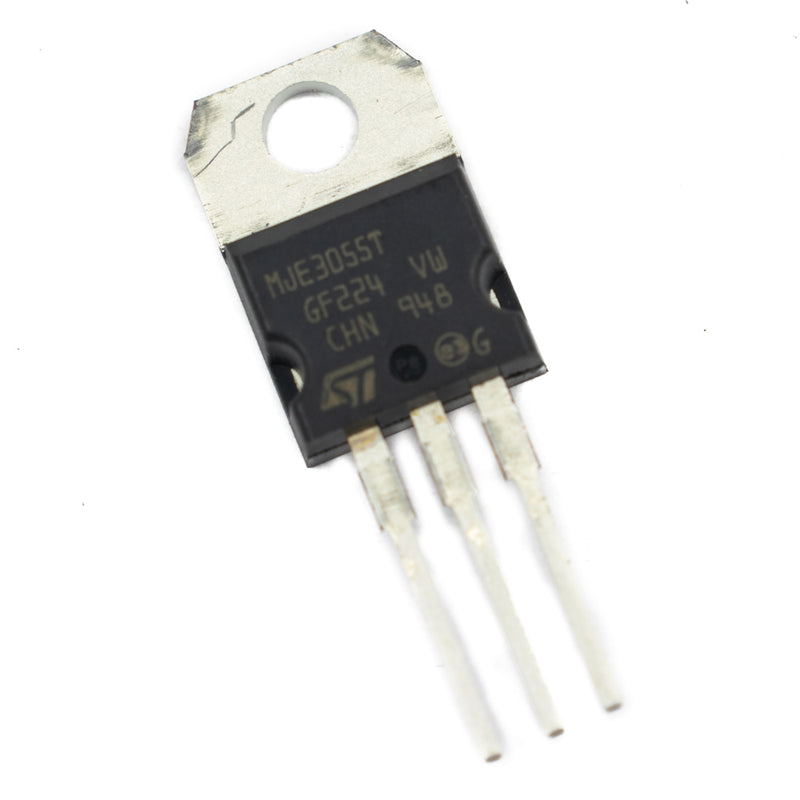

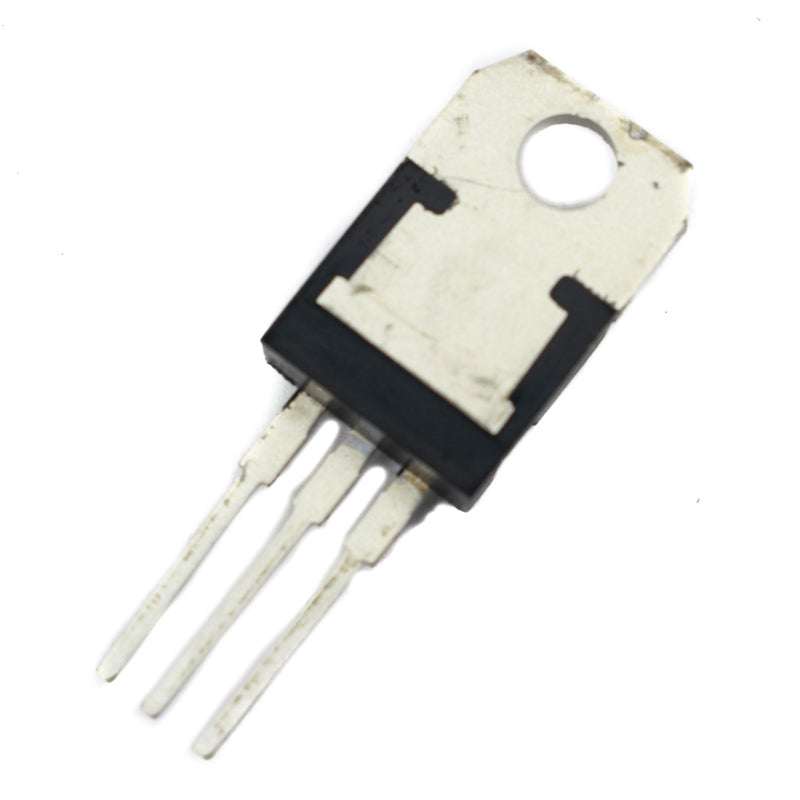

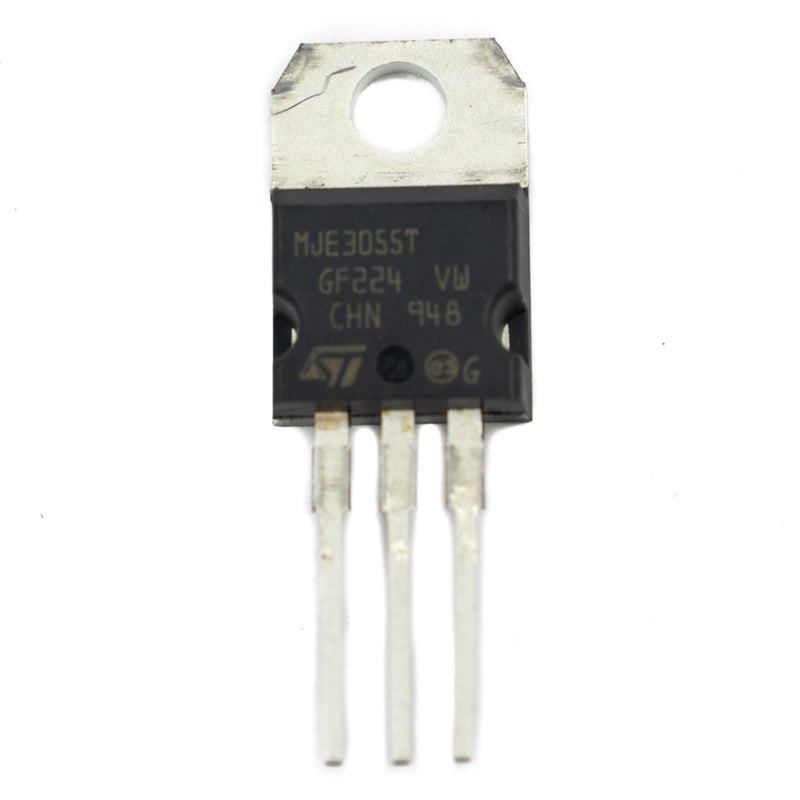

The MJE3055T is a silicon epitaxial-base NPN transistor in Jedec T0-220 package. It is for power switching circuits intended for general-purpose amplifiers. The complementary PNP type is MJE2955T.
Features:
- DC Current Gain Specified to 10 Amperes
- High Current Gain — Bandwidth Product —fT = 2.0 MHz (Min) @ IC = 500 mAdc
Specifications
| Model | MJE3055T |
| Brand | ST Microelectronics |
| Collector–Emitter Sustaining Voltage | 60V |
|
Collector Cutoff Current (VCE= 30 Vdc, IB= 0)
|
700A |
|
Collector Cutoff Current(VCE= 70 Vdc, VEB(off)= 1.5 Vdc)
|
1mA |
| No. of Pins | 3 |
|
Collector Cutoff Current(VCB= 70 Vdc, IE= 0)
|
1mA |
|
Emitter Cutoff Current (VBE= 5.0 Vdc, IC= 0)
|
1mA |
|
Current–Gain–Bandwidth Product (IC= 500 mAdc, VCE= 10 Vdc, f = 500 kHz)
|
2Mhz |
| Country of Origin | China |
