Description

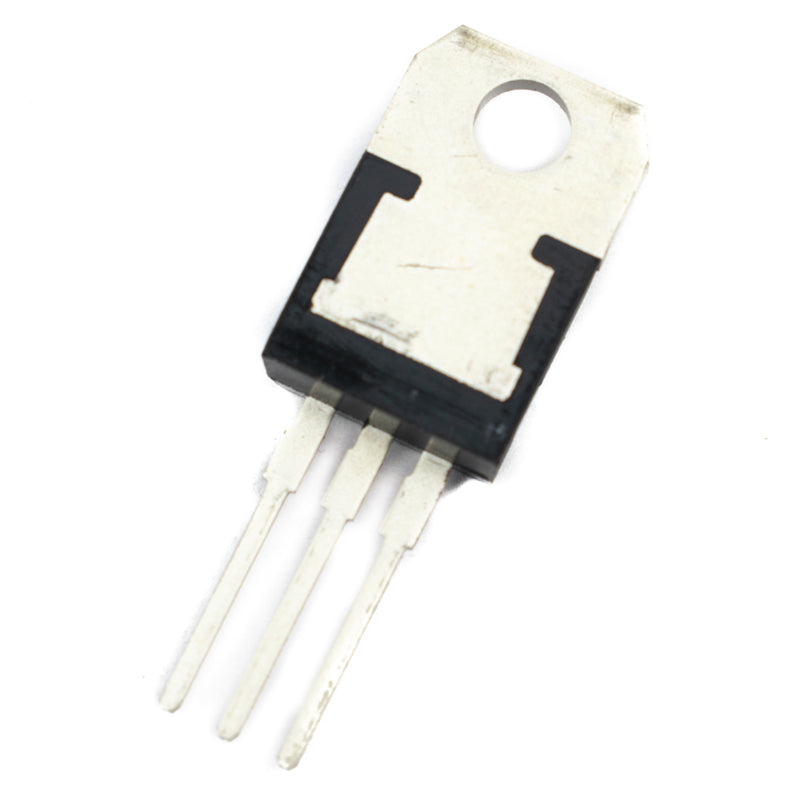

The MJE3055T is a silicon Epitaxial-Base NPN transistor in Jedec TO-220 package. It is
intended for power switching circuits and general-purpose amplifiers. The complementary.
Features
- Complementary to the MJE3055T
- Well-controlled hFE parameter for increased reliability
Specifications
| Model | MJE2955T |
| Brand | STMicroelectronics |
| Material | Silicon |
| Polarity | PNP |
| Max. Collector power Dissipation | 75W |
| Max. Collector-Base Voltage | 70V |
| Max. Collector-Emitter Voltage | 60V |
| Max. Emitter base Voltage | 5V |
| Max. Collector Current | 10A |
| Max. Operating Junction Temperature | 150°C |
| Transition Frequency | 2MHz |
| Package |
TO-220 |
| Quantity | 1 |
| Country of Origin | China |
