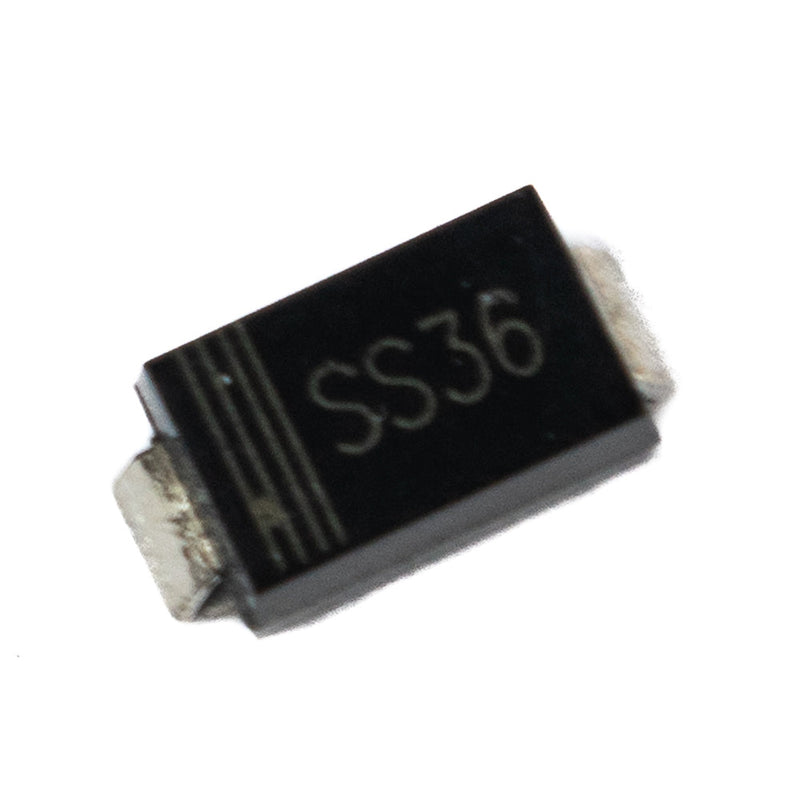

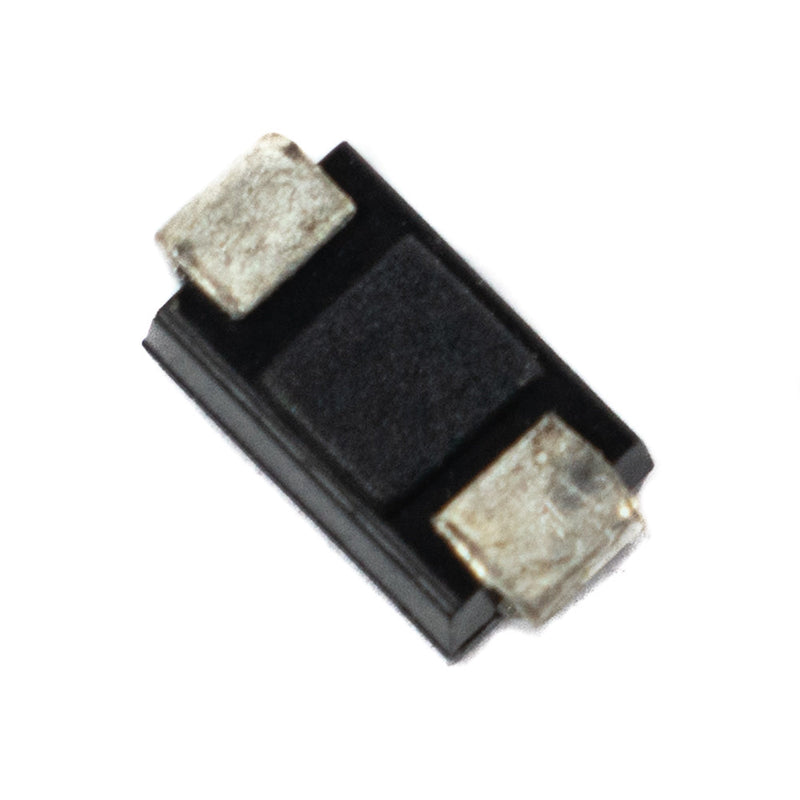

SS36 60V 3A Schottky Diode SMD DO-214AC (Pack of 2000)

Sold By: HatchnHackSKU: SNBL68

Min Qty: 1


The SS36 Schottky diode in the DO-214AC package makes it perfect for automated placement. SS36 has overvoltage protection, minimal power losses, and high efficiency. SS36 is also known for its low forward voltage drop and good surge capability. These are widely utilised in low voltage, high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.


  • Low profile package
  • Ideal for automated placement
  • Guardring for overvoltage protection
  • Low power losses, high efficiency
  • Low forward voltage drop
  • High surge capability
Model SS36
Max. Repetitive Peak Reverse Voltage 60V
Max. RMS Voltage 28V
Maximum Average Forward Rectified Current 3A
Rate of Change of Voltage (dv/dt) 10000V/µs
Operating Junction Temperature -55°C to 150°C
Package DO-214AC
Quantity 2000 Pieces
