Description

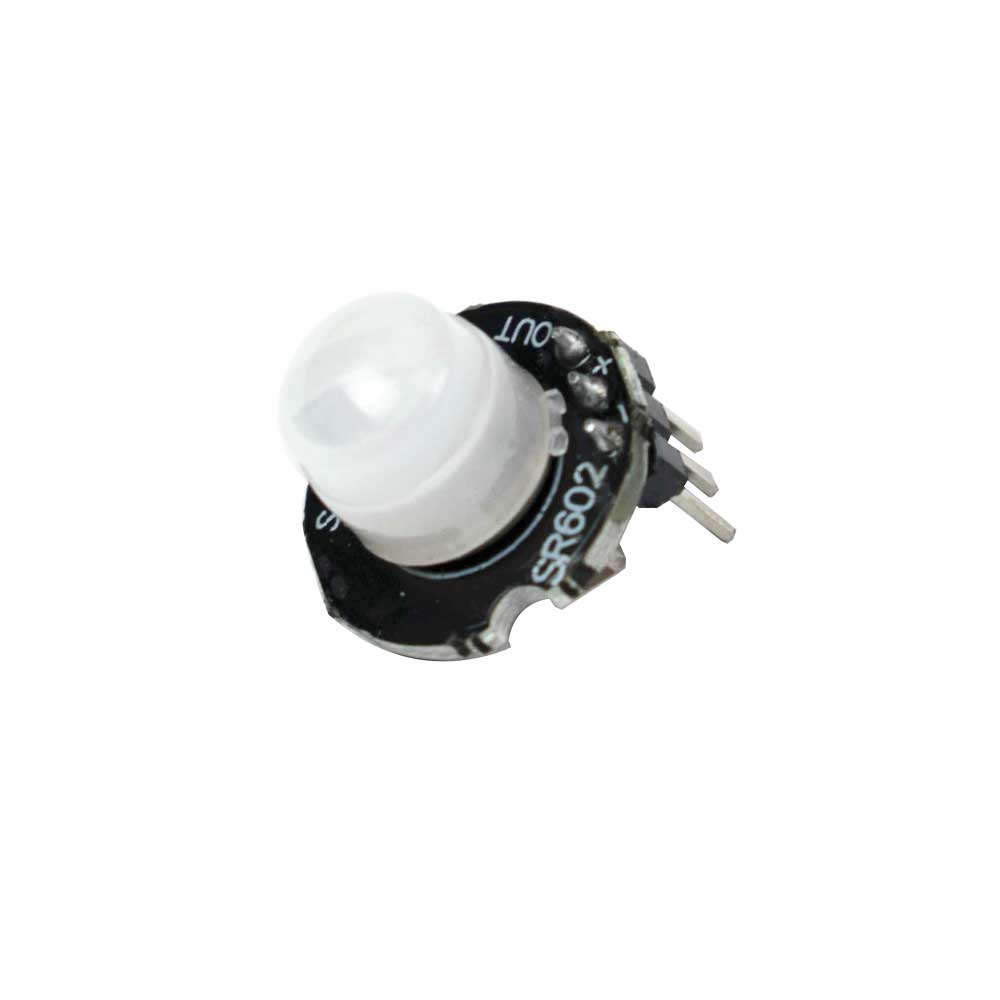

The SR602 Mini PIR Motion Detector Sensor Module is a Pyroelectric human body infrared sensor module. It can detect infrared sources like human bodies from up to 5 meters away. It is suitable for automatic sensor lights, alarms, and security. It can be used with Arduino and other microcontrollers.
Features
- High sensitivity
- Low power consumption
- Fast response
- small size

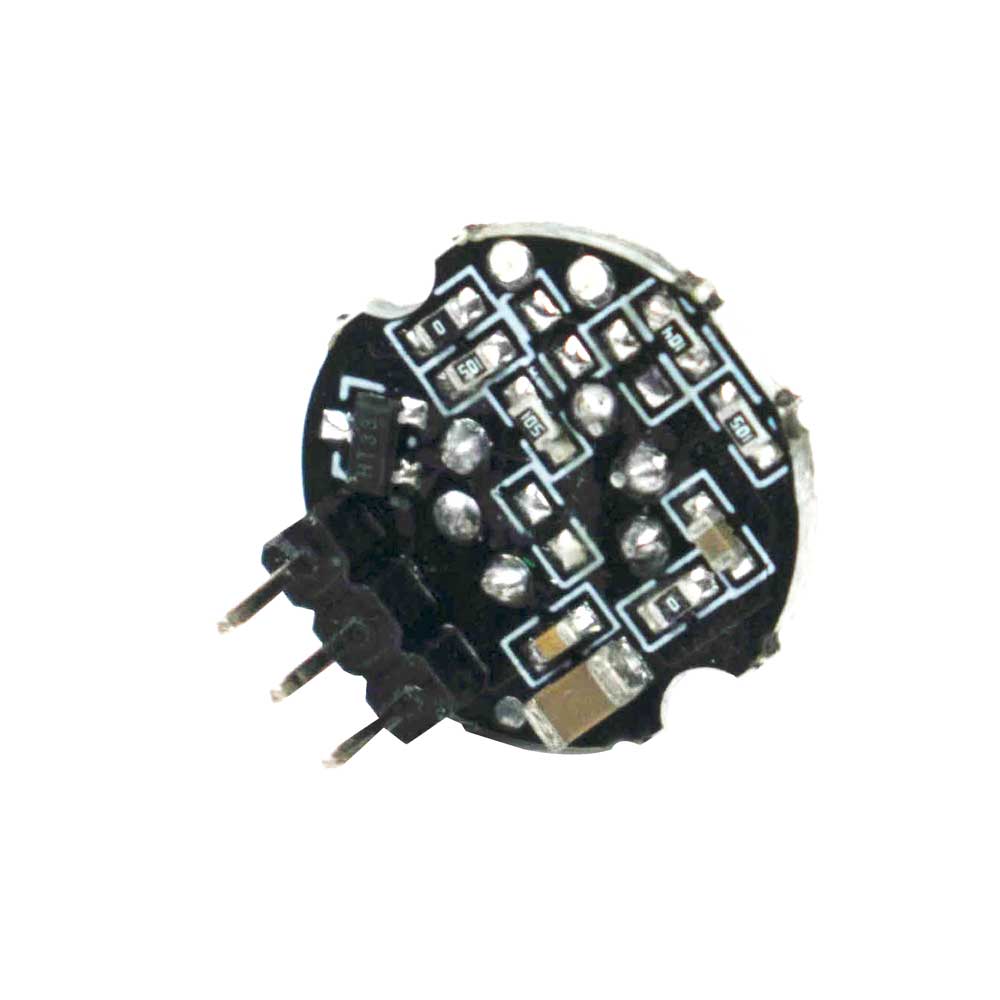

Pin Descriptions
- Power(+)
- Power(-)
- Signal(out)
- Photosensitive(S-)
- Photosensitive(S+)
Specification
| Model | SR602 |
| Type | Mini Motion Sensor |
| Delay | Adjustable |
| Operating Temperature | -20°C~+60°C |
| Lens Diameter | 10mm |
| Lens Height | 10mm |
| Board Thickness | 1.4mm |
| Pinhead Height | 8mm |
| DC Power Supply | 3.3V-15V |
| Quiescent current | 20uA |
| Trigger Time | Repeatable |
| Country of Origin | China |
