Description

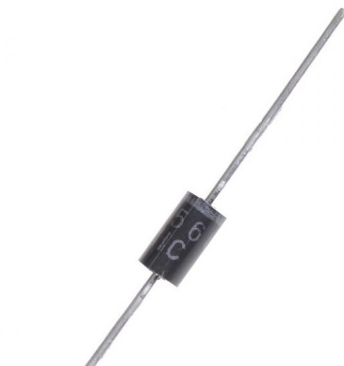

The SR560 is a high-performance Schottky rectifier designed to handle high-frequency applications and offer low forward voltage drop and fast switching characteristics. Its SR560 Schottky Rectifier‚ 60 V‚ 5 A‚ Single‚ DO-201AA‚ 2 Pins‚ 700 mV‚ The Schottky diode‚ also known as the Schottky Barrier Rectifier‚ is a semiconductor diode built with a metal by the semiconductor junction and named after the German physicist "Walter H. Schottky." It boasts a minimal forward voltage drop and a lightning-fast switching act.
Features:
-
Repetitive Reverse Voltage Vrrm Max: 60V
-
Forward Current If(AV): 5A
-
Diode Configuration: Single
-
Diode Case Style: DO-201AA
| Specifications | |
|---|---|
| No. of Pins | 2 |
| Operating Junction | Max 150 Degree centigrade |
| Part Number | SR560 |
| Forward Current | 150A |
| Forward Voltage | 700mV |
| Mounting Style | Through Hole |
| Current | 5A |
| Operating Voltage | 60V |
| Type | Schottky Rectifier |
