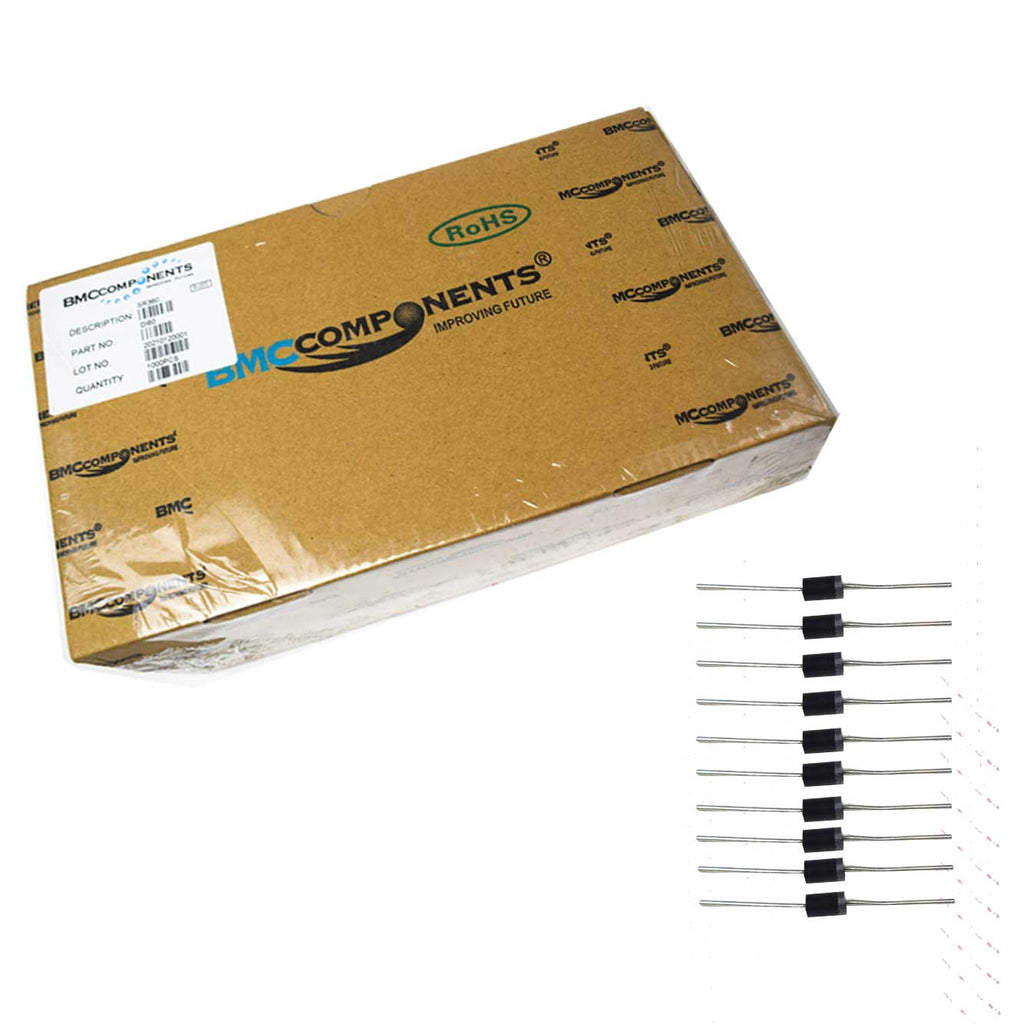

SR360 3A 60V Schottky Barrier Rectifier DO-27

Save 15%
Sold By: HatchnHackSKU: G18-12

Price:
Sale price₹ 2.44 Regular price₹ 2.87

Tax included Shipping calculated at checkout

Min Qty:

Description

The SR360 is a Schottky Barrier Rectifier with a 0.75V voltage drop and a 3A forward current. This diode features low power loss, high efficiency, and an 80A surge current capability. Low voltage, high-frequency inverters and polarity protection are common applications.

Features

  • Schottky Barrier Chip
  • Guard Ring Die Construction for Transient Protection
  • High Current Capability
  • Low Power Loss, High Efficiency
  • High Surge Current Capability
  • For Use in Low Voltage, High-Frequency Inverters, Free Wheeling, and Polarity Protection Applications

Specifications

 Model SR360
 Make BMC Components
 Type Schottky Diode
 Max. Average Forward Rectified Current 3A
 Max. Recurrent Peak Reverse Voltage 60V
 Max. DC Blocking Voltage  60V
 Mounting Type Through Hole
 No of Pin 02
 Operating Temperature Range -55 to +150 °C
 Quantity 1
Country of Origin China
