Description

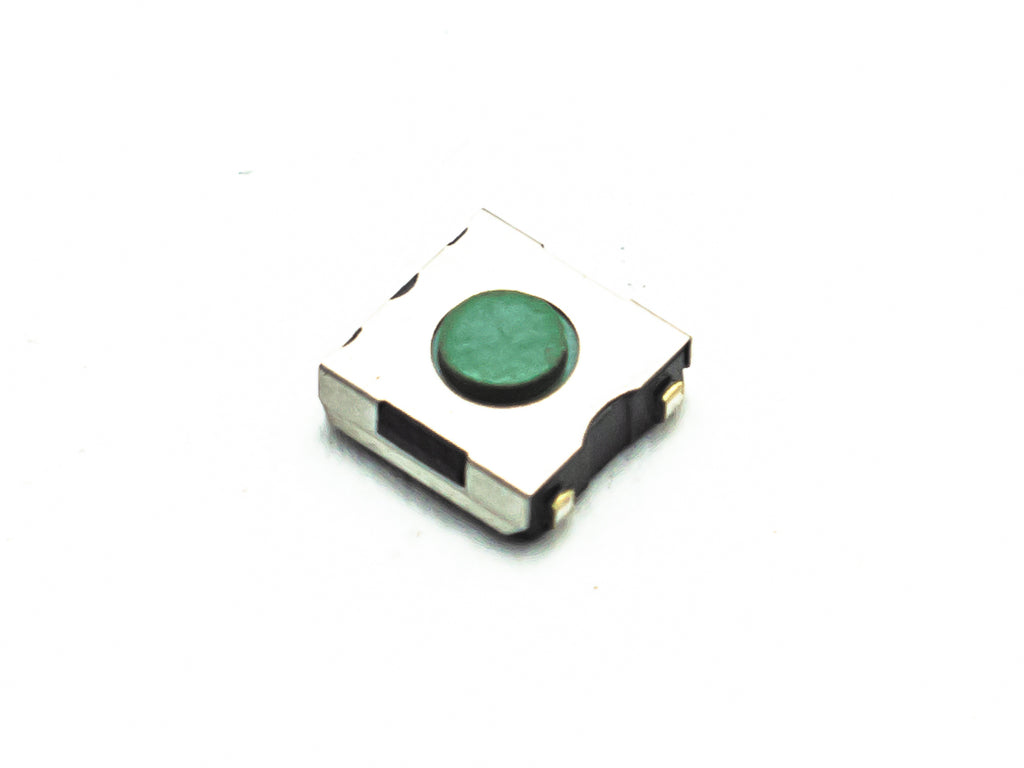

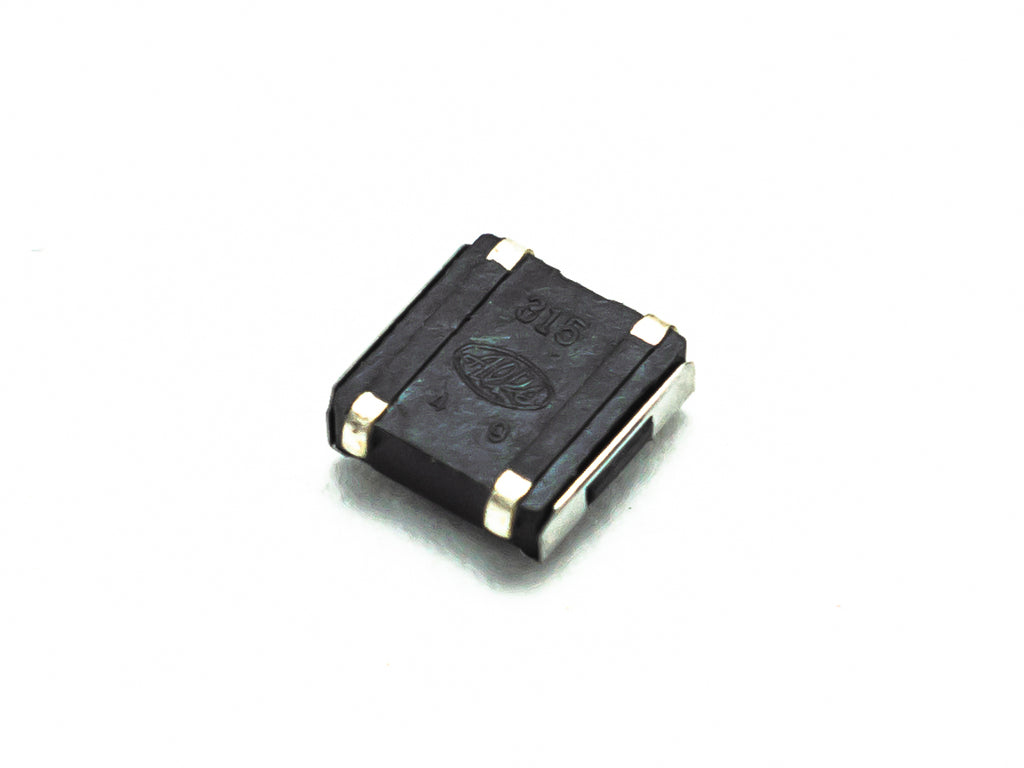

A tactile push-button switch is Normally Open switch. The tactile button connects the circuit for the time it is kept pressed and as soon as it is released the circuit is disconnected. The Tactile Push-button has 4 pins. Two pins are connected internally. These Tactile push-buttons feature an SMD design.
Specifications
| On/Off Function | Push to ON |
| Rating | 12V 50mA |
| Switching Type | Momentary |
| Mounting Type | Surface Mount |
| Contact Material | Aluminium Alloy |
| Contact Resistance | 50mΩ |
| Size | 6x6x2.5mm |
| Country of Origin | China |
