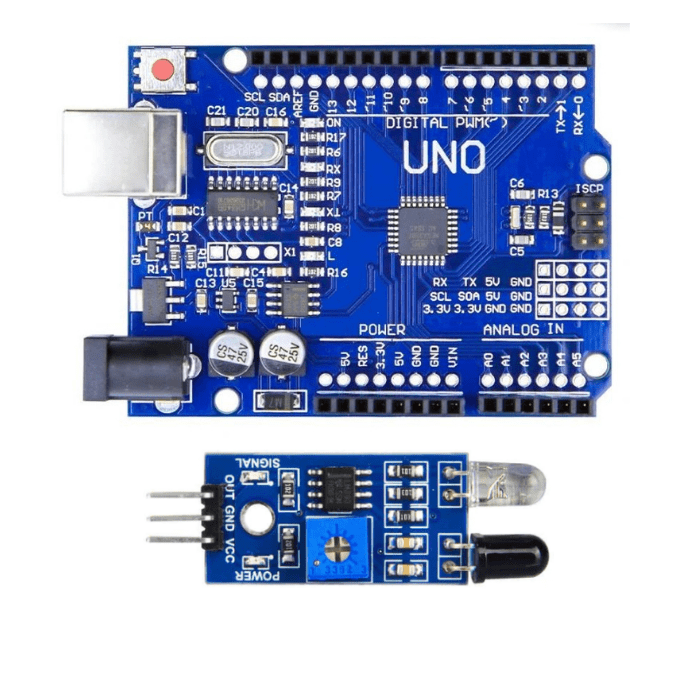

IR Proximity Sensor with SMD UNO Compatible with Arduino

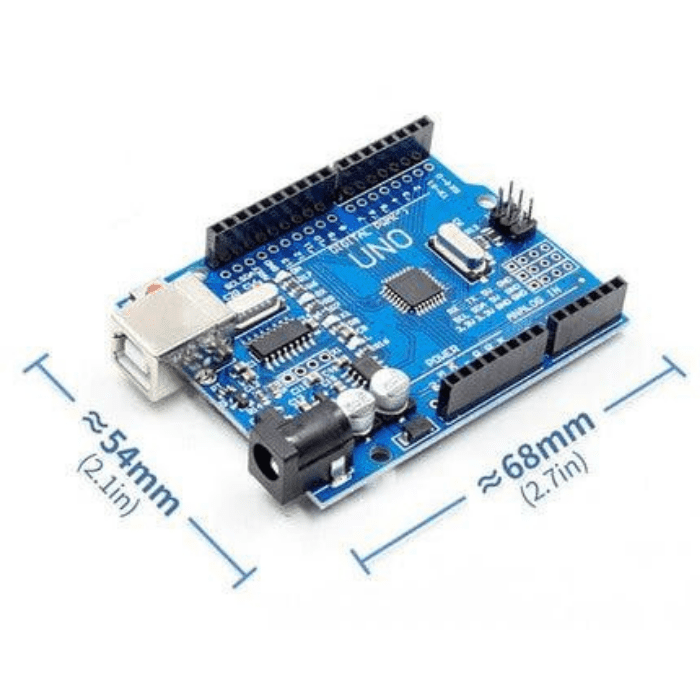

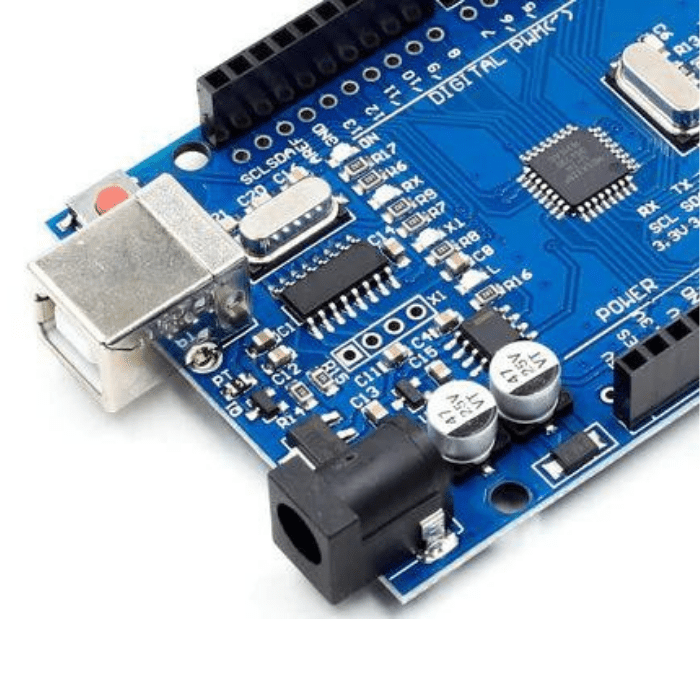

The Arduino UNO SMD board is based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

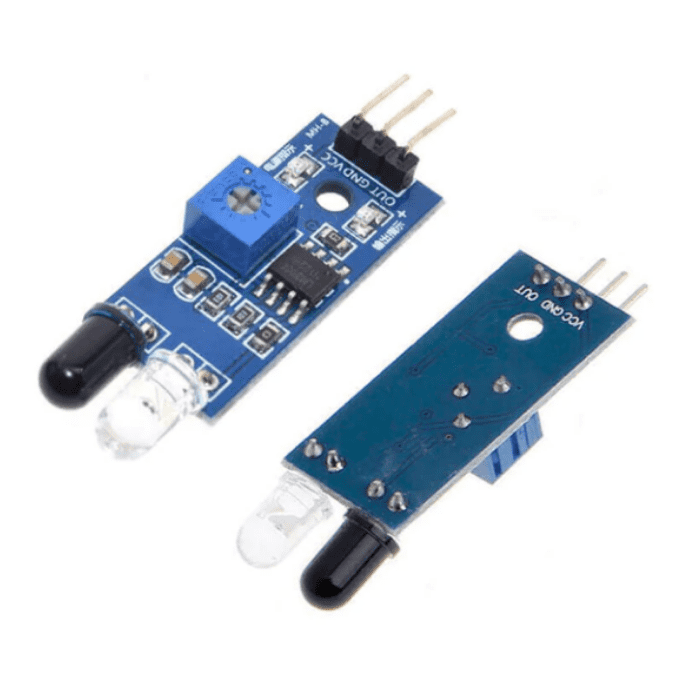

IR Proximity Sensor module has the great adaptive capability of the ambient light, having a pair of an infrared transmitter and the receiver tube, the infrared emitting tube to emit a certain frequency encounters an obstacle detection direction (reflecting surface), infrared reflected the receiver tube receiving, after a comparator circuit processing, the green LED lights up, while the signal output will output digital signal (a low-level signal).
Arduino UNO Pinout:

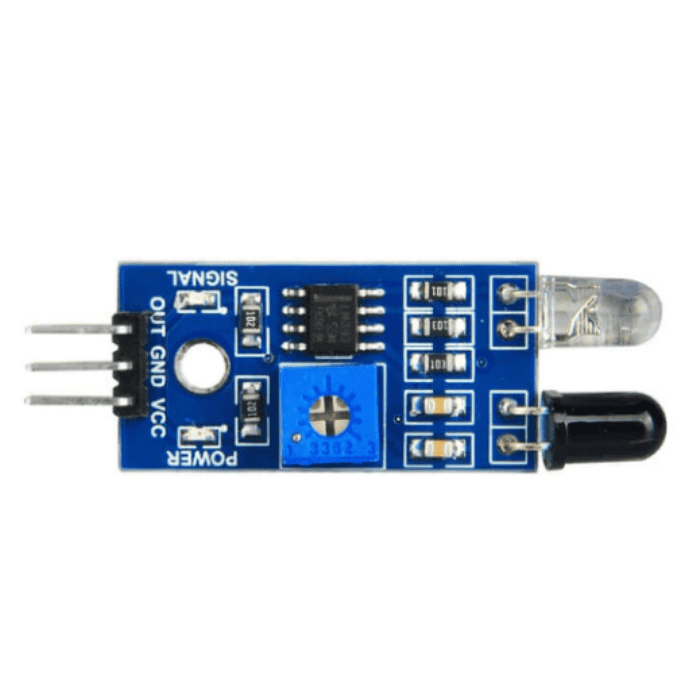

IR Proximity Sensor Pinout:
Applications:
- Remote System Monitoring
- Home Alarm System
- Remote Controlling System
- Security Access Control
- Vehicle tracking
- SMS Gateway
- Arduino Music Instrument
- Robot Car
- Fingerprint door lock
Package Includes:
- 1 x Arduino UNO SMD
- 1 x IR Proximity Sensor module
Specifications:
|
Microcontroller |
ATmega328 |
|
Digital I/O Pins |
14 |
|
Analog Inputs |
6 |
|
Crystal Oscillator Frequency |
16MHz |
|
Operating Voltage |
6-20V |
|
Dimensions |
7 x 5 x 1cms |
|
Weight |
10 grams |
|
Main Chip Of IR Proximity Sensor |
LM393 |
|
Operating Voltage (VDC) Of IR Proximity Sensor |
3.6 ~ 5 |
|
Distance Measuring Range (CM) |
2 ~ 30 |
|
Dimensions Of IR Proximity Sensor |
48 x 14 x 8 mm |
