Description

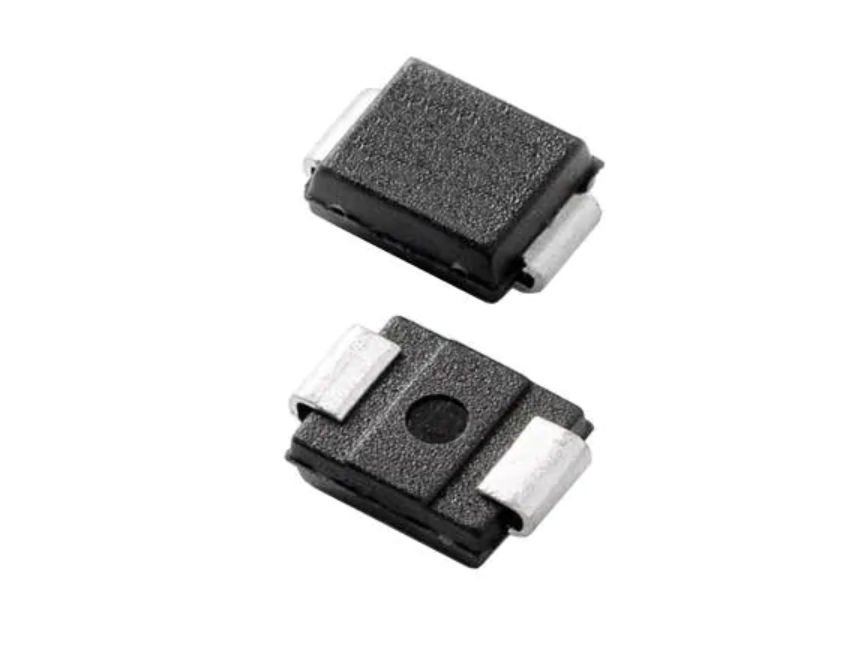

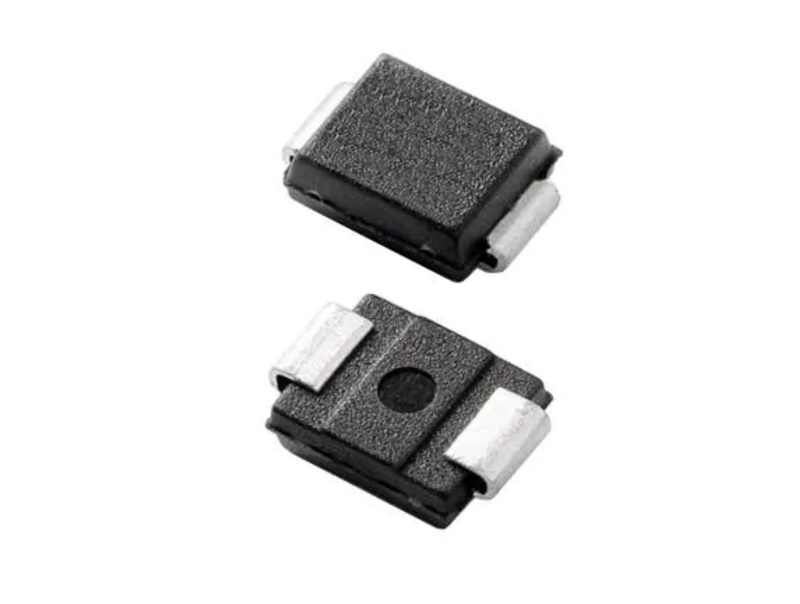

The SMBJ5.0A 5V 600W TVS Diode‚ series is specially designed to shield sensitive electronic equipment from voltage transients caused by lightning and other transient voltage occurrences. Protection against voltage transients caused by inductive load switching and illumination on ICs‚ MOSFETs‚ and signal lines of sensor units for consumer‚ computer‚ industrial‚ and communications applications. TVS components are useful for shielding I/O interfaces‚ VCC buses‚ and other susceptible circuits in telecom‚ computer‚ industrial‚ and consumer electronic applications.
Features:
- Its Ideal for automated placement
- Its Glass passivated chip junction
- Its Excellent clamping capability
- It has Very fast response time
| Specifications | |
|---|---|
| Reverse Leakage Current | 800uA |
| Breakdown Volatge | 6.4V |
| Part Number | SMBJ5.0A |
| Mounting Style | SMD |
| Operating temperature | 150 Degree Centigrade |
| Power Dissipation | 600W |
| Type | TVS Diode |
