Description

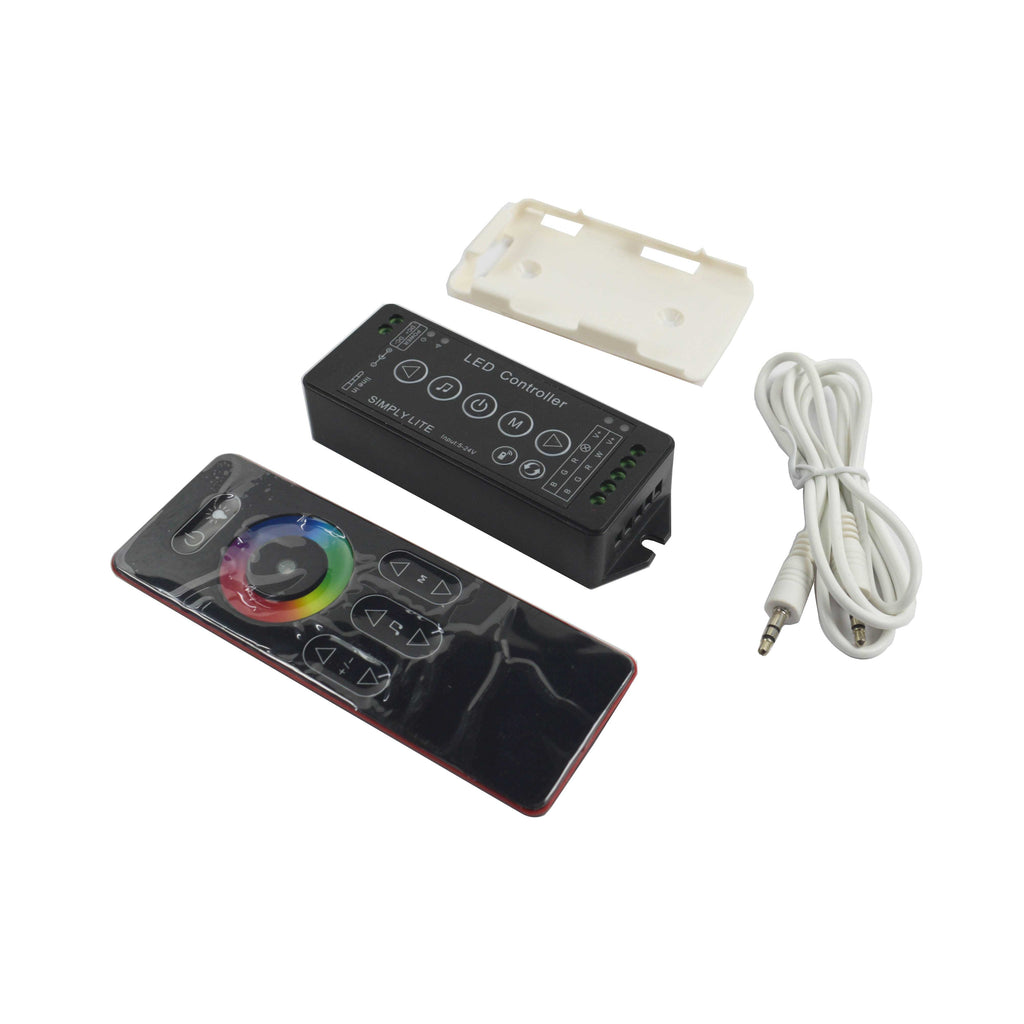

This device is a powerful LED touch remote control that uses the most beneficial 2.4 G control technology. It contains the memory function (that is to say the previous setting will be resumed when power on). It is frequently used in LED modules, LED RGBW strip lights, and other products. It has features like low power consumption, long distance transmission, strong anti-interference ability, high speed telecommunications, etc. thanks to the 2.4G high frequency wireless remote control technology. The capacitive touch screen design makes the remote simple to operate, and it has simple and useful features like colour changing and brightness adjusting.The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products
Features
- Ultra thin remote powered by 2025 button battery
- 2.4Ghz RF remote control distance >20M
- Excellent music control performance
- Simple and light packaging
Specifications

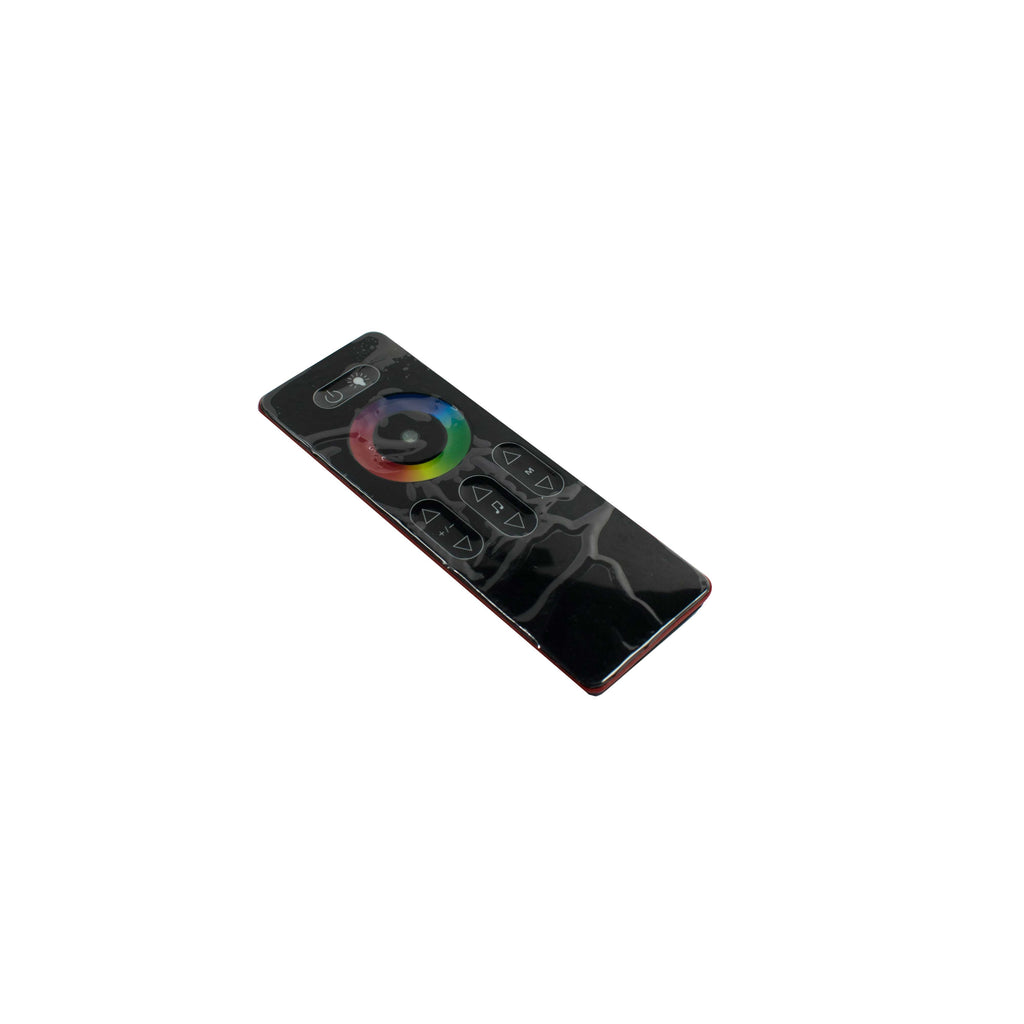

Remote
| Operating voltage | 3V DC |
| Capacity | 150 mAh |
| TX freq | 2.4 GHz |

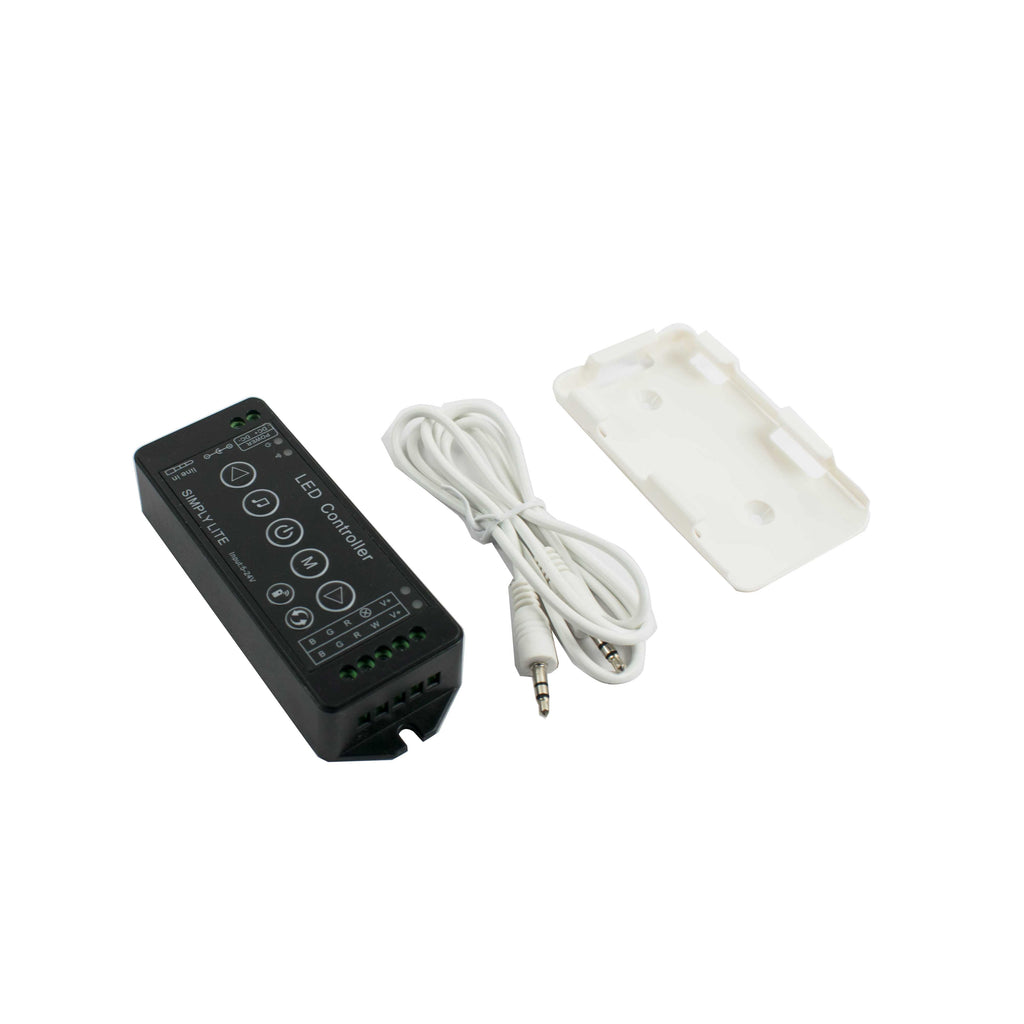

Receiver
| RX signal | 2.4GHz |
| Operating voltage | 5VDC~24VDC |
| Output power | 60W at 5VDC,144W at 12VDC,288W at 24VDC |
| Output current | Max 6A/CH |
| Output channel | 4 Channel |
| Working temperature |
-20°C TO 60°C |
| Music sensitivity | 40dB |
