Description

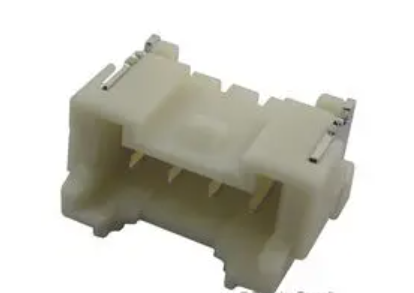

It's a SM04B-PASS-TBT SMD Connector Header. The SM04B-PASS-TBT SMD Connector Header is a type of surface-mount connector header manufactured by JST (Japan Solderless Terminal). It is commonly used in electronic devices and circuit boards for connecting wires or other components. The SM04B-PASS-TBT is a type of board-to-board (pass-through) connector header. It allows for the connection of two circuit boards in a perpendicular orientation. It is a surface-mount (SMD) connector, which means it is designed to be soldered directly onto the surface of a circuit board, as opposed to being inserted into pre-drilled holes. The SM04B-PASS-TBT connector header has a dual-row pin configuration, meaning it has two rows of pins. The number of pins can vary depending on the specific variant.
| Specifications | |
|---|---|
| Connector Type | Wire to Board |
| Pin Pitch | 2mm |
| Type | Header |
| No. of Pins | 4 |
