Description

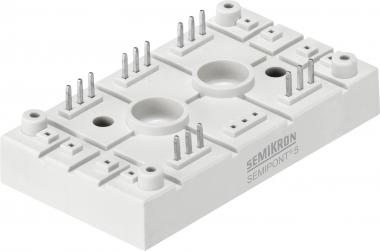

The SKD145/16 is an Insulated Gate Bipolar Transistor (IGBT) module from Semikron. It is designed for high-power applications, offering robust performance in switching operations. With a voltage rating of 1600V and a current rating of 145A, this IGBT module is ideal for use in inverters, motor drives, and power supplies. Semikron is renowned for its reliable and efficient semiconductor solutions, making the SKD145/16 a preferred choice for demanding industrial applications.
Specifications:
- Voltage Rating (VCE): 1600V
- Current Rating (IC): 145A
- Configuration: Single IGBT with antiparallel diode
- Collector-Emitter Saturation Voltage (VCE(sat)): Typically 2.8V
- Gate-Emitter Threshold Voltage (VGE(th)): Typically 5.5V
- Switching Frequency: Up to 20kHz
- Operating Temperature Range: -40°C to +125°C
- Package Type: Module
- Isolation Voltage: 2500V AC
- Applications: Inverters, motor drives, power supplies, and other high-power switching applications.
