Description

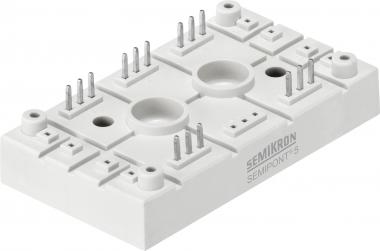

The SKD115/16 is an Insulated Gate Bipolar Transistor (IGBT) module from SEMIKRON. It features a voltage rating of 1600V and a current rating of 115A. This IGBT module is designed for high efficiency and reliability, suitable for applications in power inverters, motor drives, and industrial power supplies.
Specifications:
- Collector-Emitter Voltage (Vce): 1600V
- Collector Current (Ic): 115A
- Gate-Emitter Voltage (Vge): ±20V
- Power Dissipation (Ptot): 670W
- Operating Temperature Range: -40°C to +150°C
- Mounting: Screw mounting
- Package Type: Module
- Isolation Voltage: 2500V RMS (AC)
- Switching Frequency: Suitable for various switching frequencies
- Application: Power inverters, motor drives, and industrial power supplies
