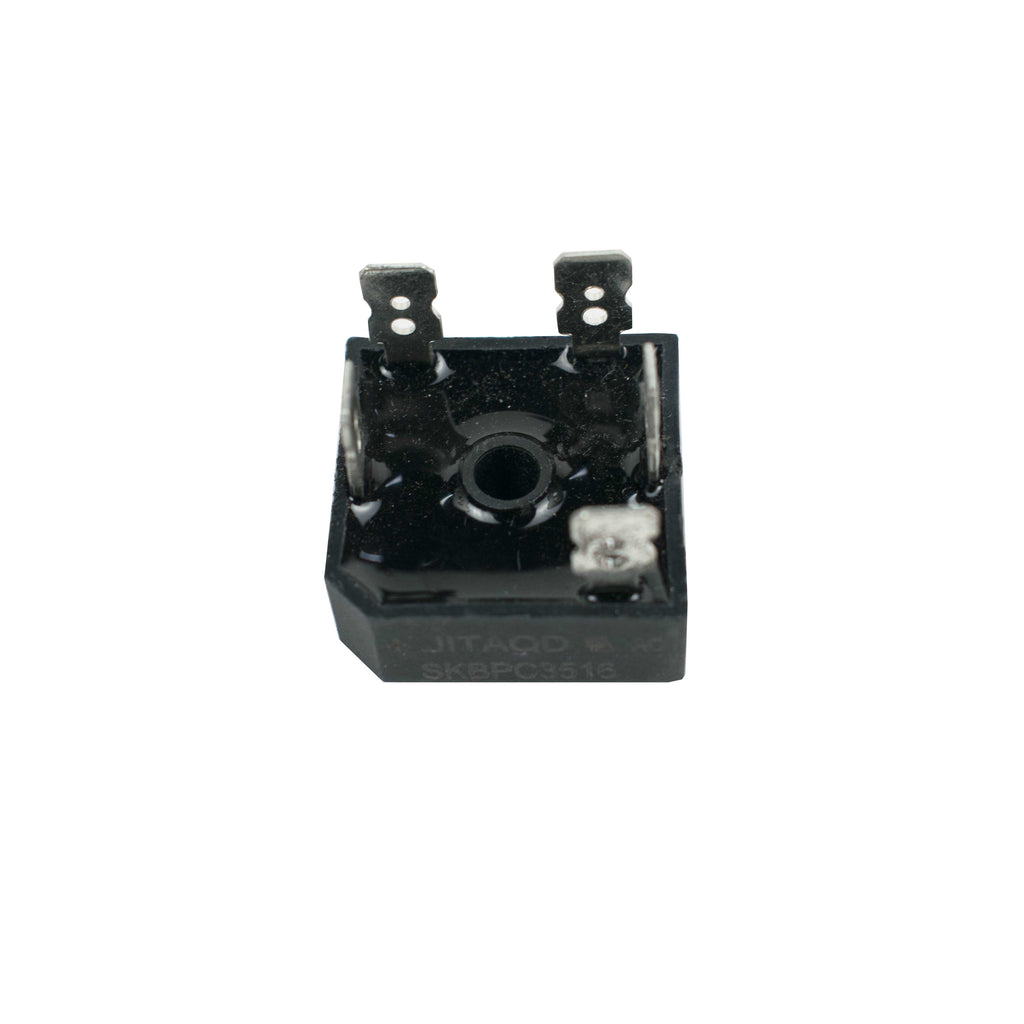

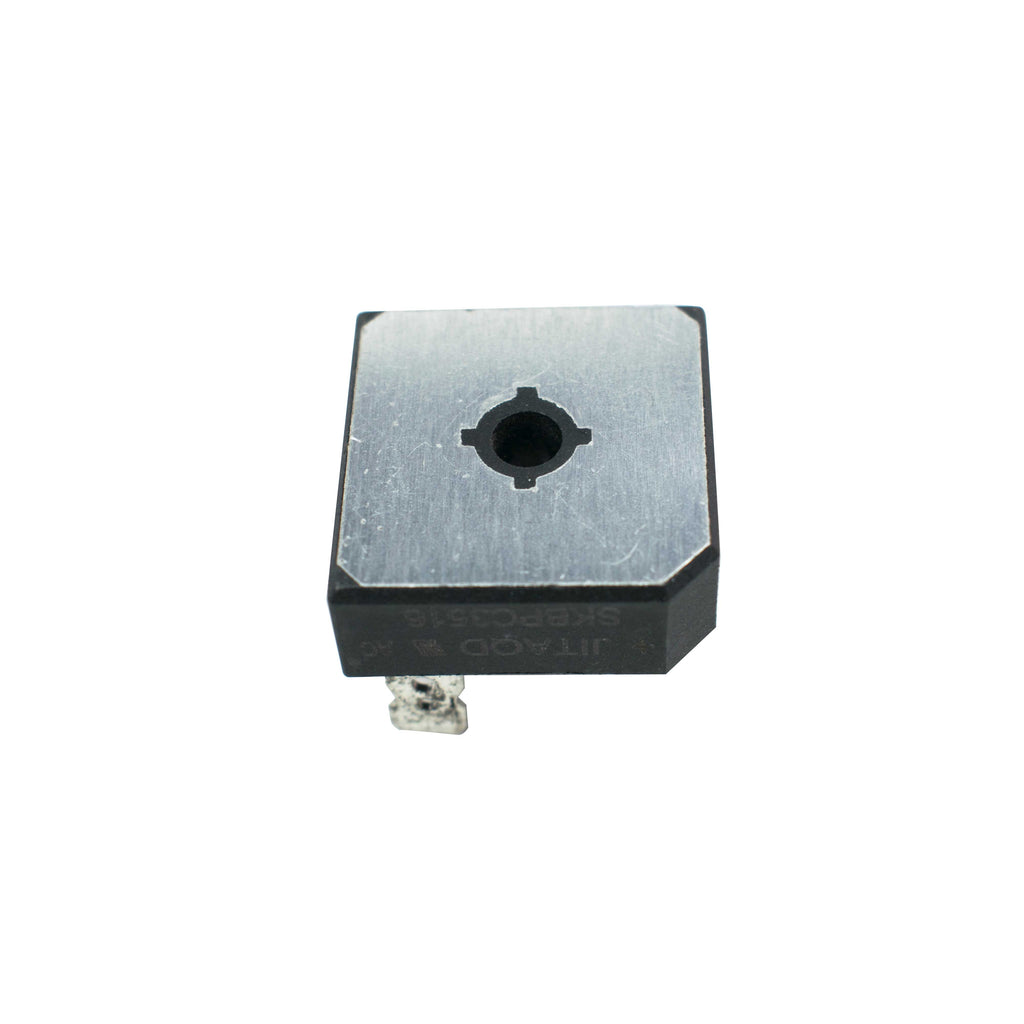

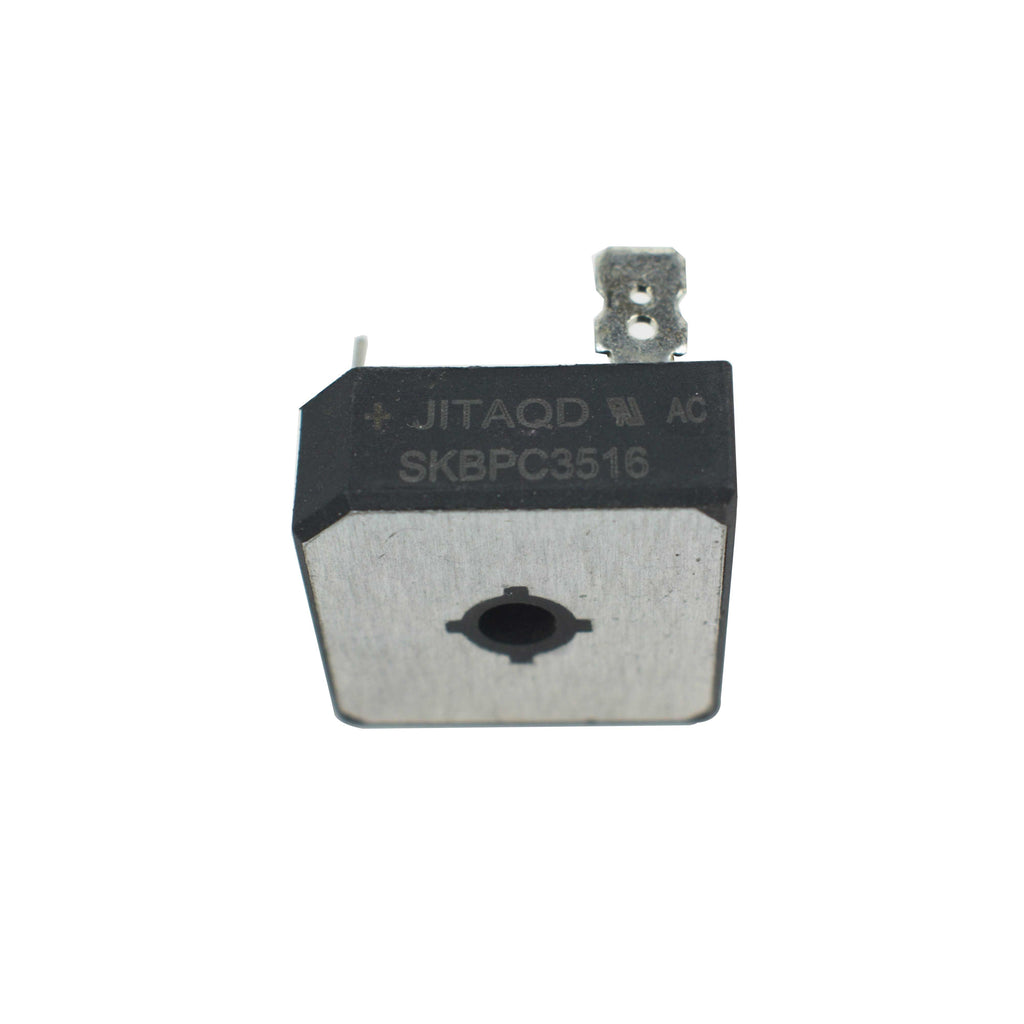

SKBPC3516 1600V 35A Three Phase Bridge Rectifier

Save 5%
Sold By: HatchnHackSKU: F04-29

Sale price₹ 184.00 Regular price₹ 194.00

Tax included Shipping calculated at checkout

Min Qty:


A Three Phase Bridge rectifier diode is the SKBPC3516. Since this IC can tolerate an AC rms voltage of up to 1120V, it can be employed in a wide variety of applications. This IC can tolerate a maximum DC current of 35A. This IC features a low forward voltage loss of 1.2V and a reverse breakdown value of 1600V. It features a high surge current capacity of 400A and great efficiency. This could be an excellent option if you're seeking for a small IC for rectification applications


  • Glass passivated chip
  • High surge forward current capability
  • General purpose 3 phase Bridge rectifier applications
Model SKBPC3516
Type Bridge rectifier diode
Working Peak Reverse Voltage 1600 V
RMS Reverse Voltage V(RMS) 1120 V
Average Forward Rectified Output Current 35A
Peak Reverse Current at 25°C 10µA
Operating and Storage Temperature Range -40°C TO 150°C
Country of Origin China
