Description

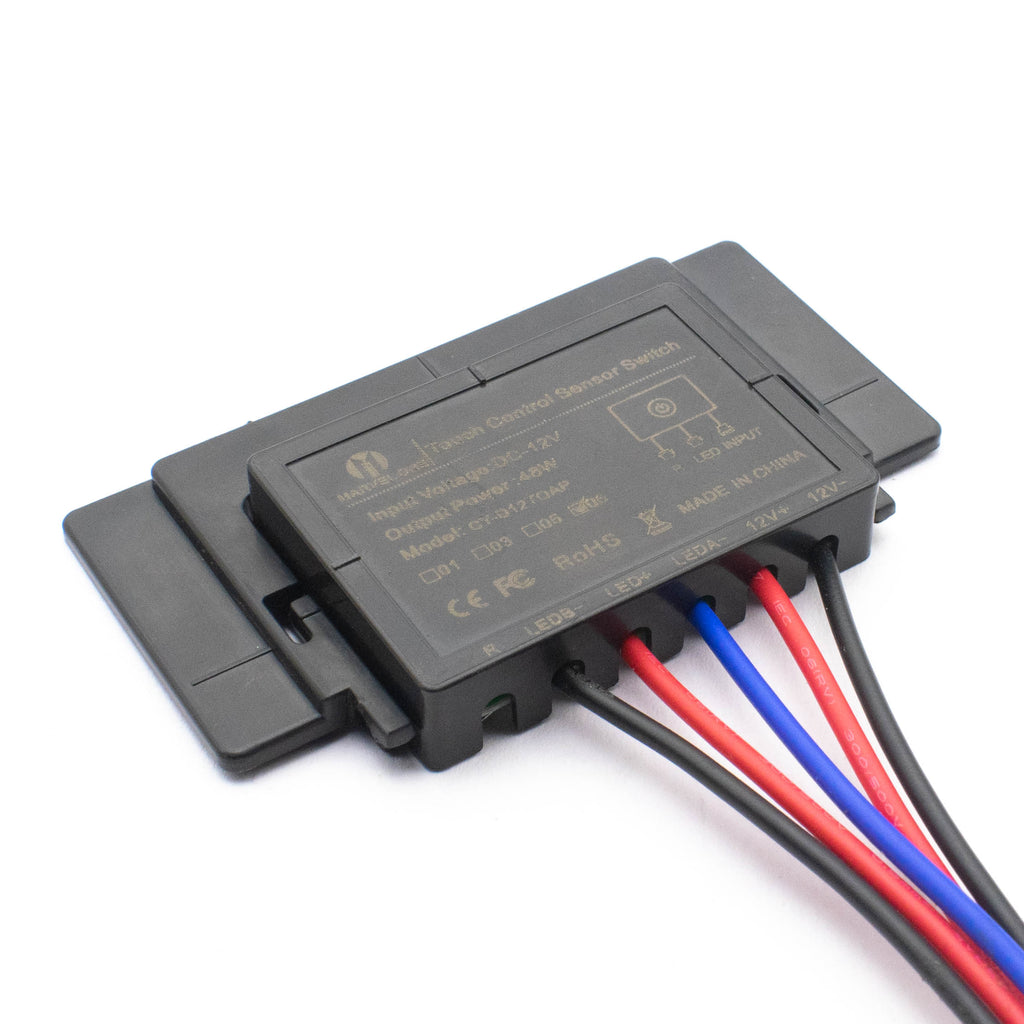

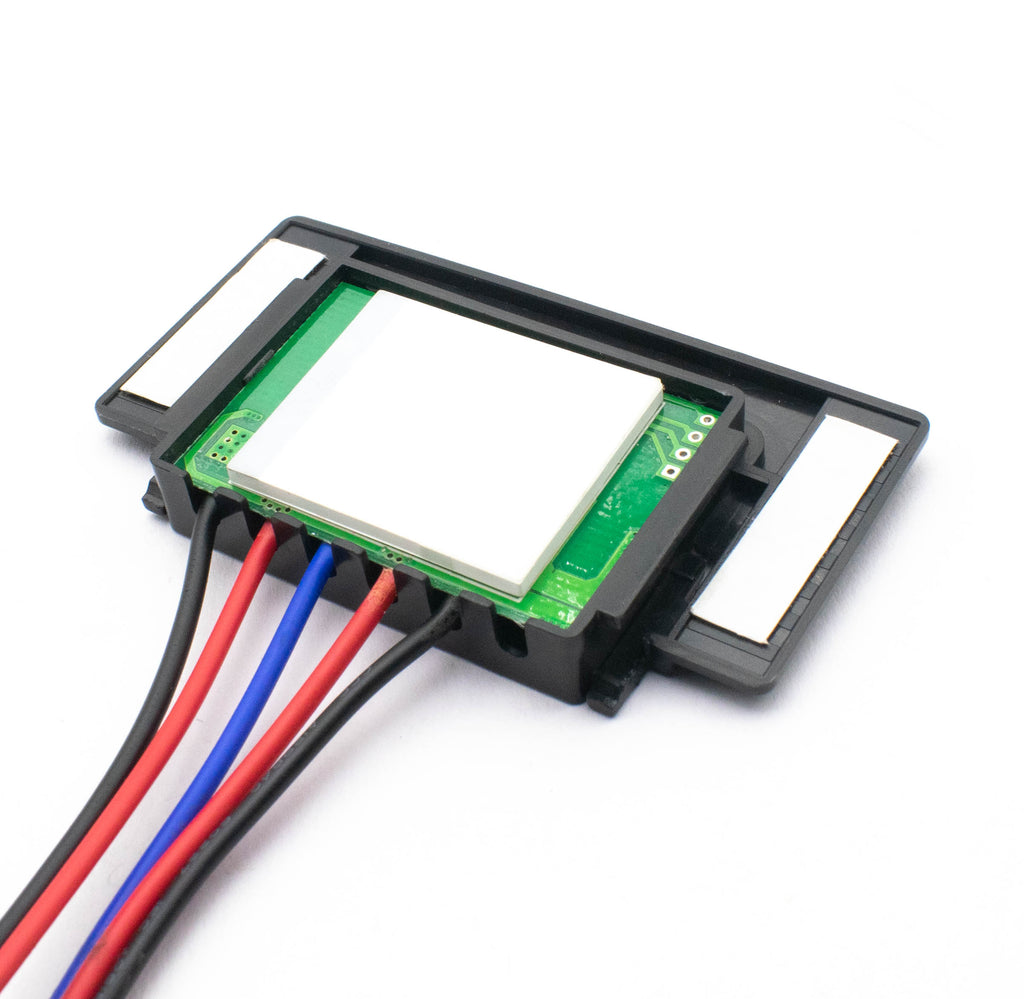

Touch Control Sensor Switch for Mirror Light can be powered using a simple 12V DC supply. It realizes the switch control function to light up LED lights from a single touch. The product is specially designed for smart light mirrors. It is suitable for the control of various mirror lights. On powering the 12V DC supply, the backlight of the touch control sensor switch gets started. After that, when you touch the touch sensor, the first led linked to LEDA- begins to glow. When you press the touch sensor again, the second led attached to LEDB-, begins to glow. Now, on touching the first led which is connected to the LEDA- stops glowing. On again touch the second led which is connected to LEDB- stops glowing. The product is reliable, easy to install, sensitive to touch. The touch Control sensor switchboard is designed with a backlight source; the backlight source and the touch switch are designed as one body. When the power supply and the control switch are connected and power on, the backlight source on the switchboard is lit up. The backlight source is always on, and it can be turned off by long time press.
Feature:
- Touch Control Sensor Switch works on 12V.
- Color LED can be made ON-OFF just by a single touch.
- It’s very easy to install, just by joining the positive and negative terminal to the power supply and LEDA-, LEDB- with the negative terminals of LEDs, and common the positive terminal of LEDs and connect it to LED+.
- Sensitive to touch
- Sleep mode Long touch to turn off button backlight
Specification
| Rated Power | 48W |
| Model | CY-D12TOAP |
| Operating Voltage | 12V |
| Current | 5A |
| Dimension | 48.7mm*15.0mm*1.4mm |
| Number of Output | 2 |
| Country of Origin | China |
