Description

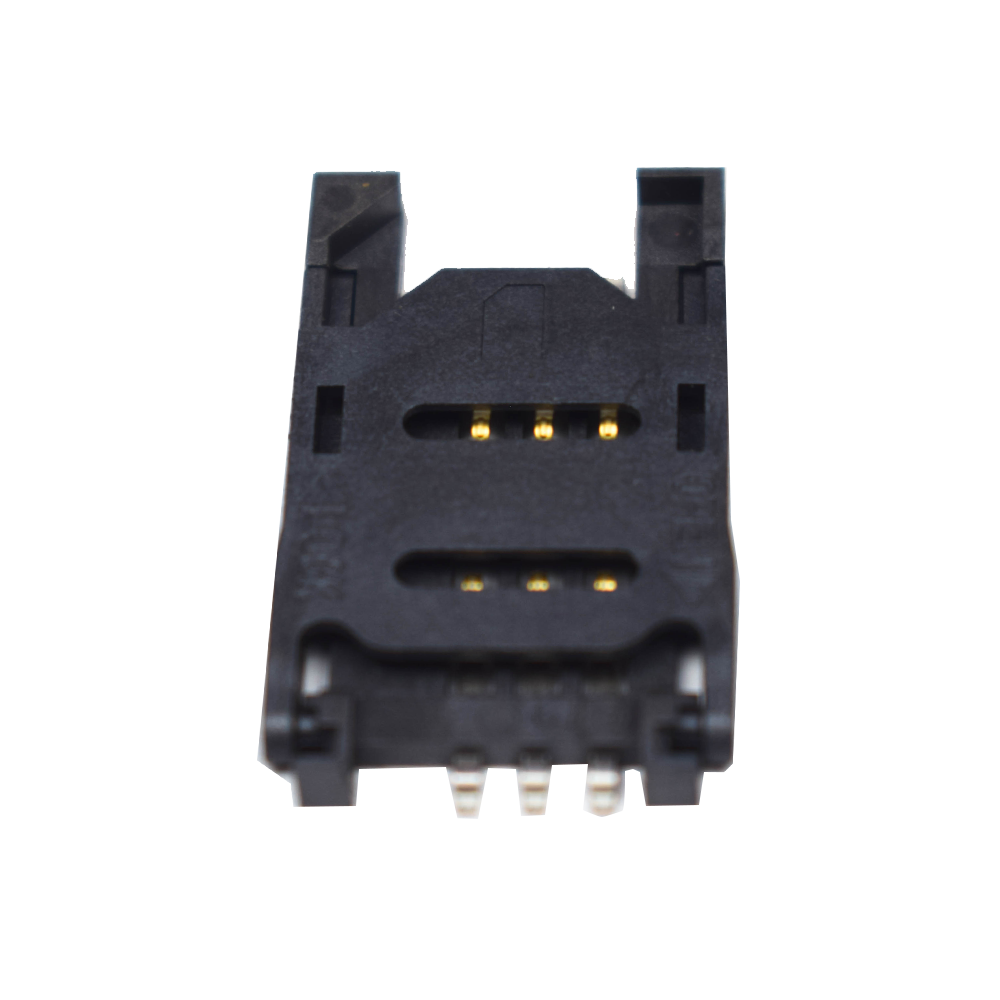

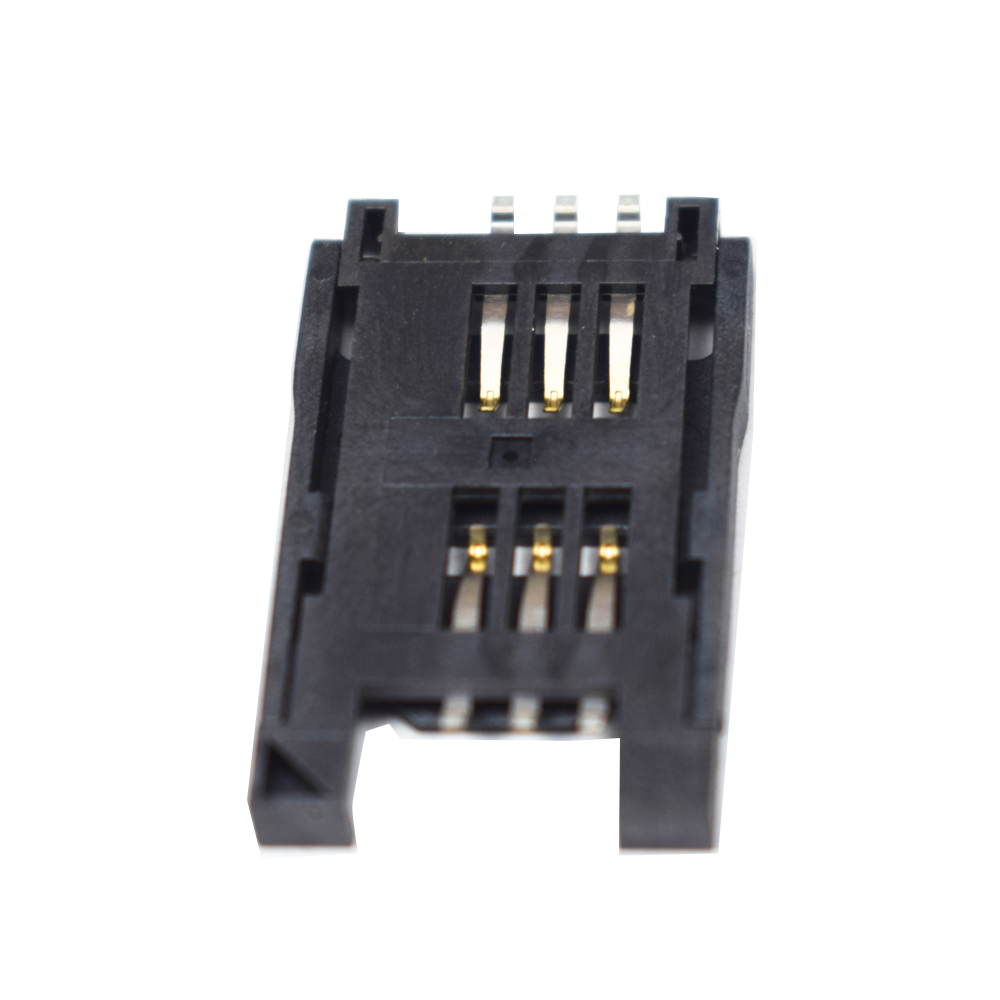

This is a SIM Card Holder – SMD Type with the standard interface of 6 pins. The interface for the sim card is a flip-open Lock type, and its design includes a push & slide locking mechanism that assures high retention and operability.
Specification
| Product | Single SIM Card Slot Holder |
| Material | Thermoplastic |
| Pitch | 2.54mm |
| Number of Pins | 06 |
| Type | LOCK |
| Mounting | Surface Mount |
| Contact Resistance | 30mΩ max |
| Operating Temperature | -25°C to 85°C |
| Colour | Grey |
| Dimension | 17.2x29.6x2.7mm |
| Make | Make in India |
| Country of Origin | China |
