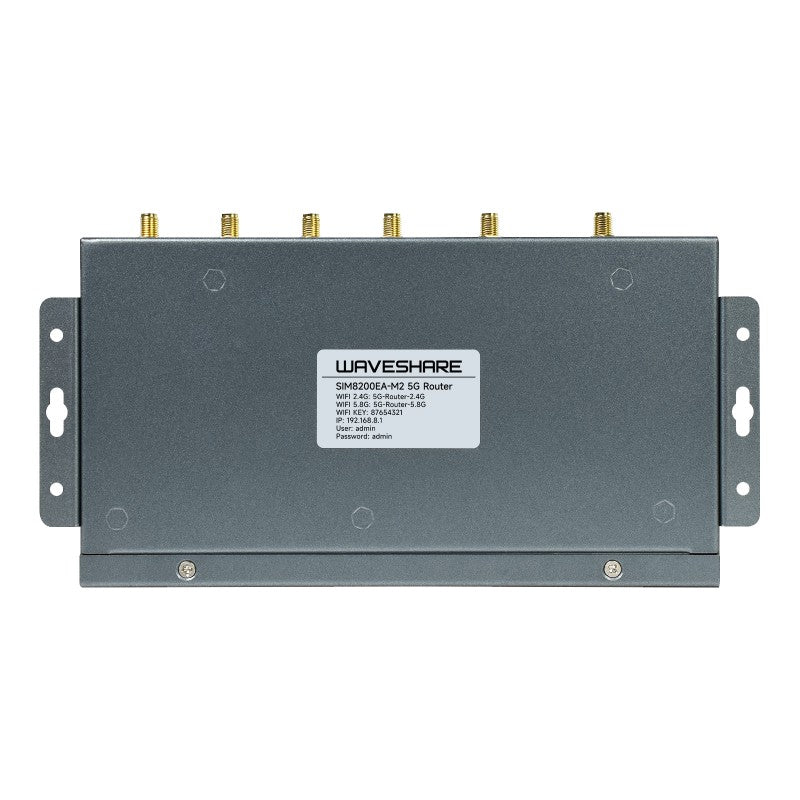

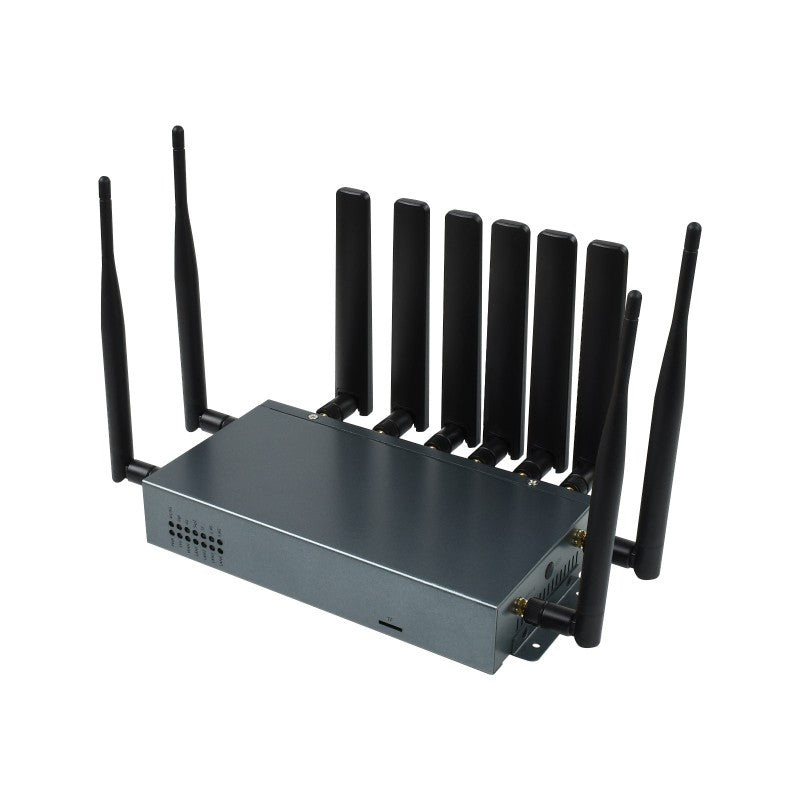

SIM8200EA-M2 Industrial 5G Router

Save 4%
Sold By: HNHSKU: THR-421

Price:
Sale price₹ 44,000.00 Regular price₹ 45,999.99

Tax included Shipping calculated at checkout

Out of stock

Description

INDUSTRIAL 5G WIRELESS ROUTER

High Speed 5G, Multi Mode Multi Band

Incorporates SIM8200EA-M2 5G Module, Supports 5G/4G/3G, And 5G SA / NSA
Applicable For Regions With 5G Sub-6G Signal Coverage Except The Americas



Specifications

5G WIRELESS SPECIFICATION
FREQUENCY BAND 5G Sub-6G (SA):
n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78
5G Sub-6G (NSA):
n41, n77, n78
LTE-FDD:
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD:
B34, B38, B39, B40, B41, B42, B43, B48
WCDMA:
B1, B2, B3, B4, B5, B8
GNSS:
GPS, GLONASS, BeiDou, Galileo, and QZSS
DATA RATE 5G Sub-6G:
2.4 Gbps (DL) / 500 Mbps (UL)
LTE:
1 Gbps (DL) / 200 Mbps (UL)
HSPA+:
42 Mbps (DL) / 5.76 Mbps (UL)
WIFI WIRELESS SPECIFICATION
WIFI STANDARD IEEE802.11b/g/n, IEEE802.11Wi-Fi 5(a/b/g/n/ac) compliant, 2.4GHz, 5.8GHz, 2T2R, supports AP mode
DATA RATE 2.4GHz: up to 300Mbps
5.8GHz: up to 866Mbps
AUTHENTICATION supports encryption methods including WEP, WPA, WPA2, etc.
INTERFACES
M.2 1x connector, comes with 1x SIM8200EA-M2 module by default, supports other 5G modules
MINI PCIE 3x connectors, comes with 1x 2.4GHz and 1x 5.8GHz WiFi module, allows connecting one more 4G module
WAN 1x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection
(the WAN RJ45 can be used as LAN RJ45 port, so there could be totally 5x LAN RJ45 port)
LAN 4x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection
SERIAL PORT 1x RS232 + 1x RS485, embedded ESD protection
SIM/UIM CARD SLOT drawer SIM card slot, prevents the SIM card from dropping out, embedded 15KV ESD protection
ANTENNA CONNECTOR SMA standard antenna connector, comes with 6x 5G antennas, 4x WiFi antennas by default
TF CARD SLOT for external storage
POWER SUPPLY standard power supply interface, supply 12~24V input, embedded power supply phase-reversal protection and over-voltage protection
RESET BUTTON press and hold for 5~10s then release, restores the router to factory setting
INDICATORS PWR, SYS, 5G, 4G, WAN, LAN, TF, 2.4G, 5.8G status indicators
POWER SUPPLY
POWER ADAPTER DC 12V/2A
POWER INPUT RANGE 12 ~ 24V
POWER CONSUMPTION data mode: <1A@12V, idle mode: <500mA@l2V
MECHANICAL
CASE Metal case, IP30 protection level
DIMENSIONS 195 × 107 × 37mm
OPERATING TEMPERATURE -35 ~ +75ºC
STORAGE TEMPERATURE -40 ~ +85ºC
RELATIVE HUMIDITY 95% (non-condensing)



Multi Mode Multi Band

Applicable For Most Of The Countries And Regions

Based on Qualcomm snapdragon X55 platform with multi mode multi band support.
Applicable for regions including China, Europe, the Middle East...

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.



High Speed 5G Network Experience

Enjoy High Speed 5G Networking Via The Gigabit Ethernet Port Or WiFi Connection



RS232/RS485 Serial Communication

Supports Multi Modes Including TCP/UDP Transparent Forwarding, Modbus, And MQTT

Industrial Design, Stable & Reliable

Quality metal case, with multi protections like ESD protection, surge protection, electric fast pulse protection, power supply phase-reversal protection
Embedded hardware watchdog, allows self-detection on failure, self-recovery, ensures stable and reliable running



More Safe & Stable Data Transmission

Supports provider VPN access, adopts financial-level data security standard, dual WAN/Wired/Wireless connections with mutual backup, reducing communication failure probability, providing stable and reliable data transmission.
Supports general VPN protocols like PPTP, L2TP, GRE, OpenVPN, multi-layer encryption, more safe transmission.



Customizable Software/Hardware

Standardized and modular base board interface design
Onboard 1x M.2 connector, 3x mini PCIE connectors, allows connecting 1x 5G module, 1x 4G module, and 2x WiFi modules at one time
Comes with 1x SIM8200EA-M2 5G module and 2x WiFi module by default, you can flexibly customize or upgrade the software/hardware by yourself



Interface

 Dimensions

* measured manually, for reference only.






Package Contents:

  1. SIM8200EA-M2 5G Router x1
  2. 5G antenna x6
  3. WiFi antenna x4
  4. 12V power adapter x1
  5. Weight: 0.334 kg
1234
