Description

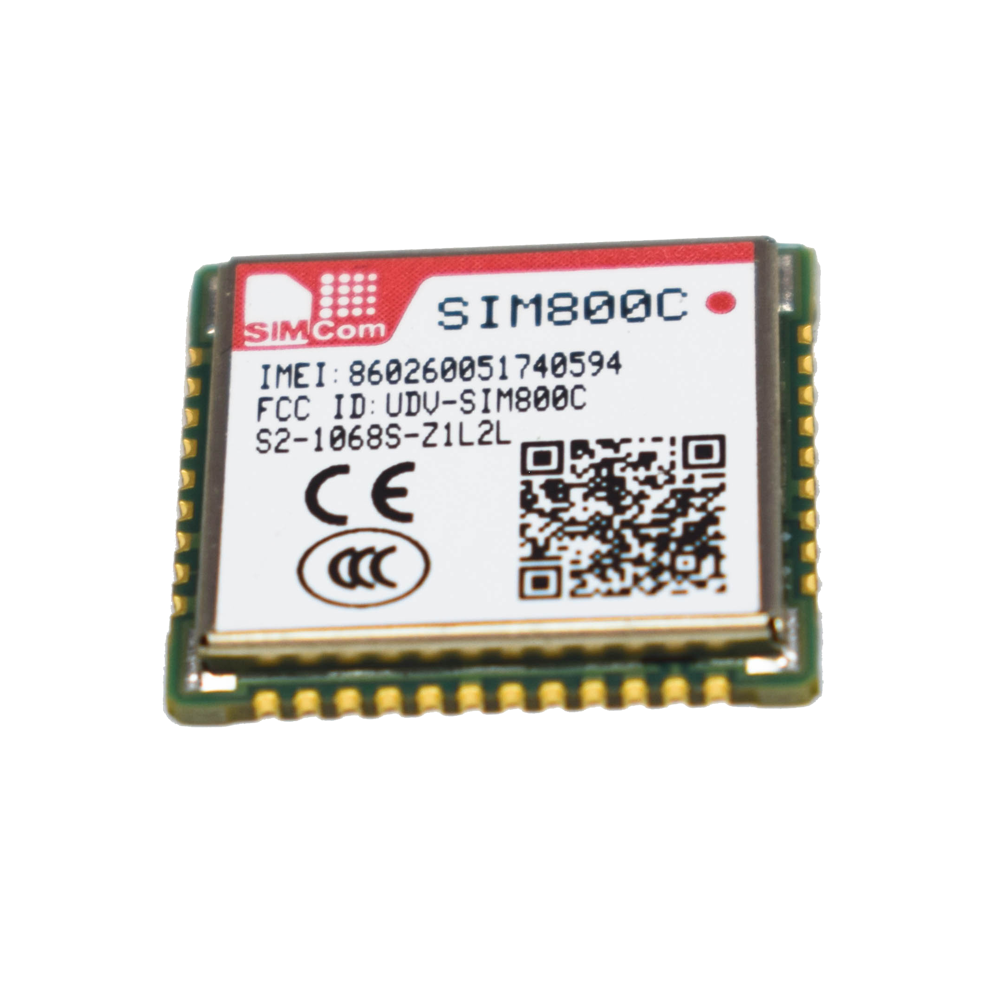

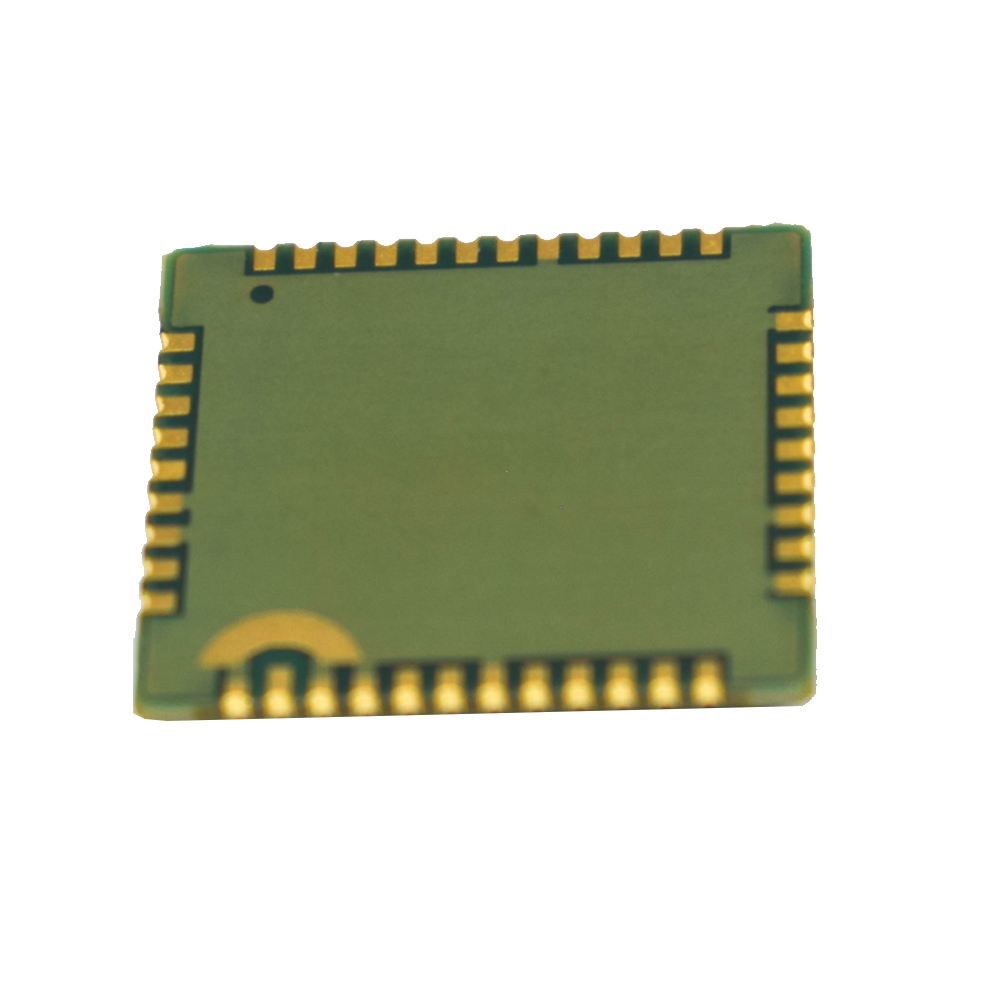

SIM800C GSM GPRS Chip Module. It can transmit voice, SMS, and data over GSM. The SIM800C GSM/GPRS Module from SIMCOM is a popular module for adding GSM/GPRS/Bluetooth support to any electronic device. The module is very inexpensive and requires very few external components. It has applications in a variety of fields, including IoT, data monitoring, remote control, factory automation, and so on. SIM800C is a Quad Band GSM Module with 42 pins in an SMT Package. The module is also very small, measuring only 17.6 x 15.7 x 2.4mm. This module can transmit voice, SMS, and data, as well as use Bluetooth for data transmission, all while consuming very little power. As a result, it is an appropriate choice when the final device has a small footprint and a compact design.
Features
- Quad Band GSM / GPRS Module
- Can transmit voice, SMS, and data over GSM
- Low Power Consumption
- Embedded TCP/UDP protocols
- LCC form factor, easy for solder
- Abundant software functions: DTMF, MMS, MUX
Specification
| Model | SIM800C |
| Brand | SIMCOM |
| Frequency Band | Quad-band 850/900/1800/1900MHz |
| Supply voltage range | 3.4 ~ 4.4V |
| No. of Pins | 42 |
| Package | SMD Package |
| Dimensions | 17.6 x 15.7 x 2.4mm |
| Support Bluetooth | 3.0 EDR |
| Operation temperature | -40℃ ~85℃ |
| Country of Origin | China |
